Tripp Lite DWF3770L - Mounting on Recessed Screens or A;V Access

7
Note: Choose appropriate screws, washers and spacers (if necessary) according to the type of screen.
• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.
Tighten all screws but do not over tighten.

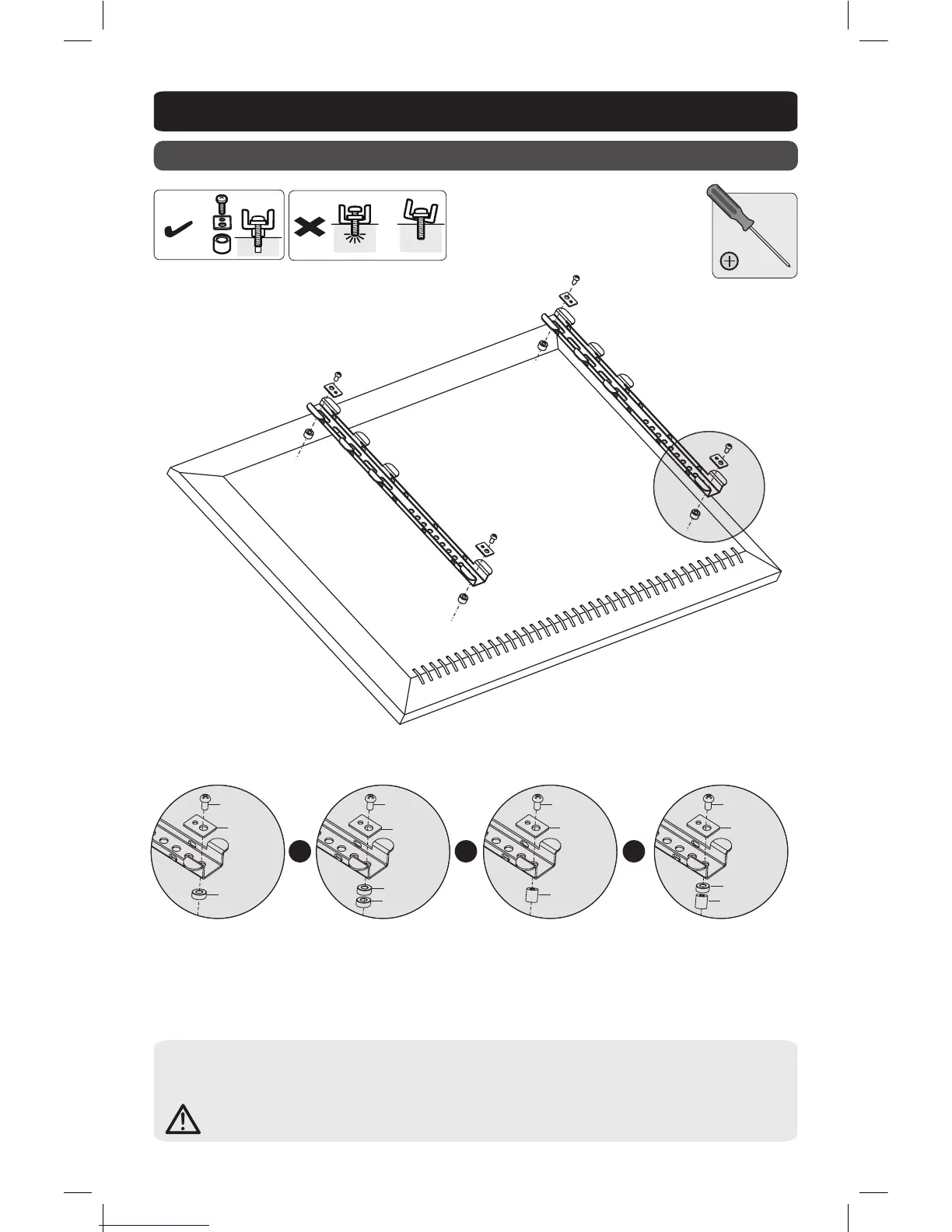

2. Installing the Adapter Brackets
2-2 For Recessed Back Screen or to Access A/V Inputs
TV
or or or
TV
TV
Washer
M8x20
M8x20
M6x30
M8x30
M6x30
M8x30
M6x30
M8x30
Small Spacer
Small Spacer
Small Spacer
Big Spacer
Big Spacer
Small Spacer
Washer
Washer
Washer
