4

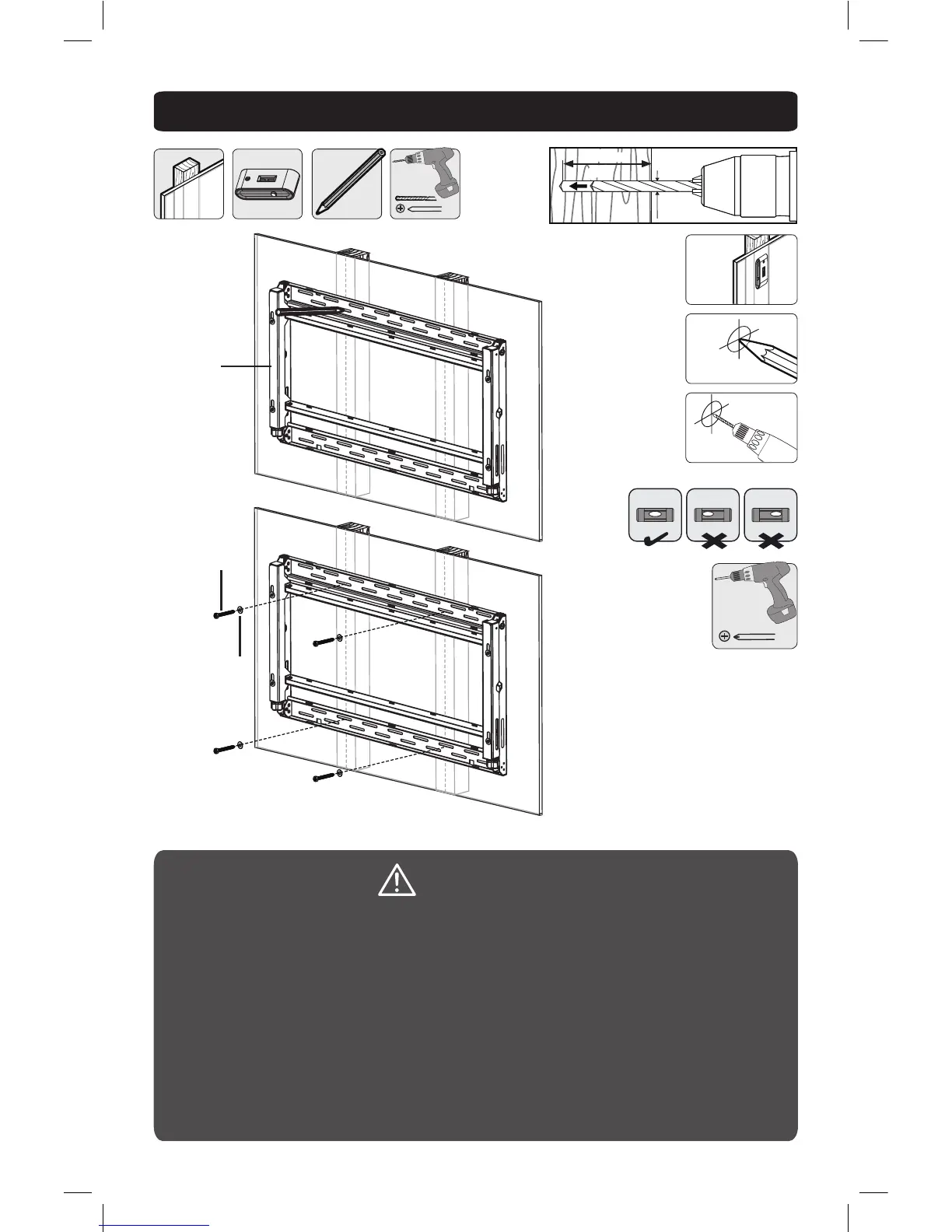

1a. Mount on Wood Stud Wall
1
2
3
Find and mark the
exact location of
mounting holes
Screw the wall
plate onto the
wall
Drill pilot holes
WARNING
• Make sure that mounting screws are anchored into the center of the studs.
Use of an edge-to-edge stud finder is highly recommended.
• Never tighten in excess of 80 in-lb • (9 N.M.)
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined
load of the equipment and all attached hardware and components.
• When installing this wall mount on a wood stud wall covered with gypsum board
(drywall), verify that the wood studs are a minimum of 2” x 4” nominal size. When
installing to more than one stud, ensure the spacing between the studs is at least
16” but doesn’t exceed 24”. Do not install over gypsum board thicker than 5/8”.
65 mm
(2.5”)
ø 4 mm
(ø 5/32”)
Metal
Washer
Wall
Bracket
Lag Bolt
