HI CART SUCTION ASSEMBLY

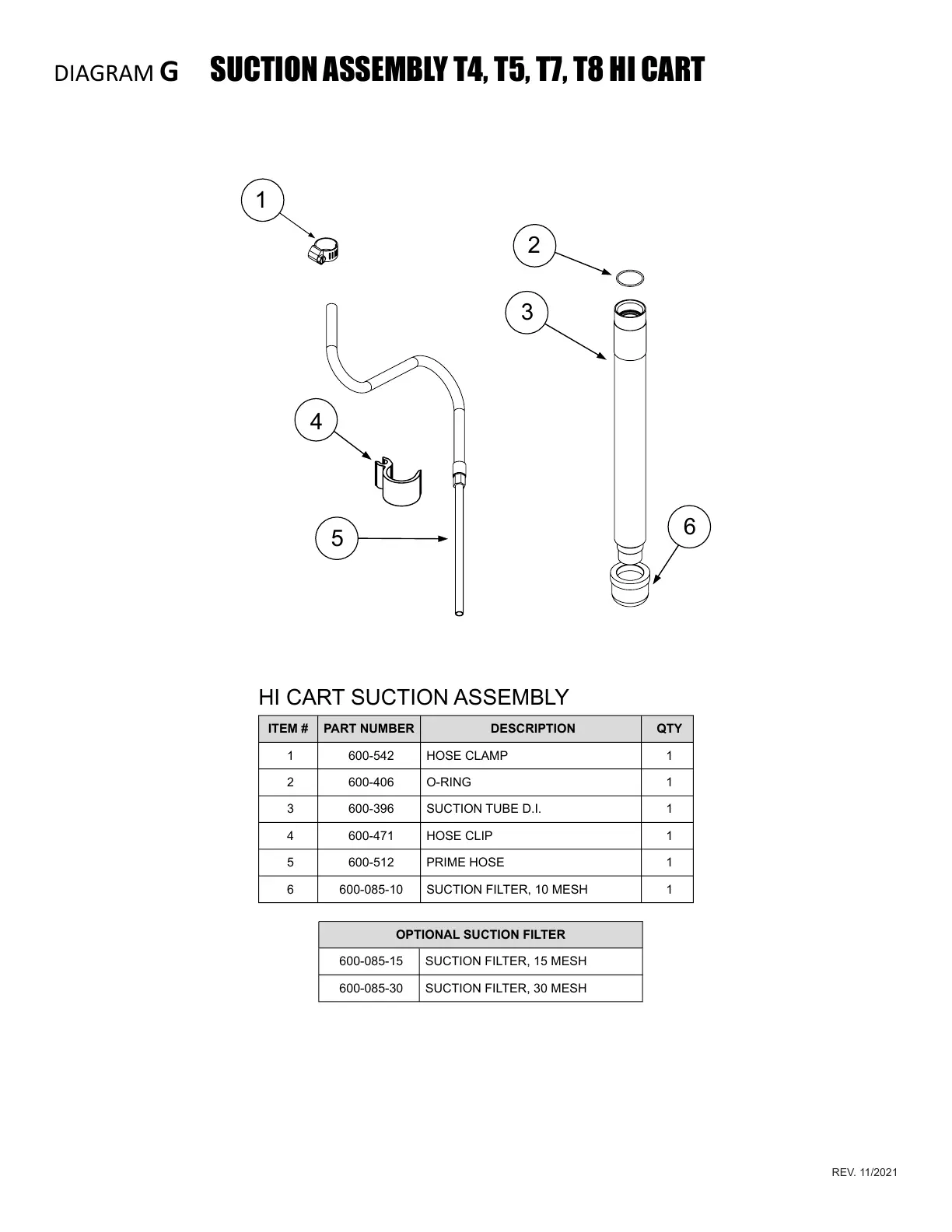

SUCTION ASSEMBLY T4, T5, T7, T8 HI CART
ITEM # PART NUMBER DESCRIPTION QTY
1 600-542 HOSE CLAMP 1
2 600-406 O-RING 1
3 600-396 SUCTION TUBE D.I. 1
4 600-471 HOSE CLIP 1
5 600-512 PRIME HOSE 1
6 600-085-10 SUCTION FILTER, 10 MESH 1
OPTIONAL SUCTION FILTER
600-085-15 SUCTION FILTER, 15 MESH
600-085-30 SUCTION FILTER, 30 MESH
REV. 11/2021
1
2
3
6
4
5
DIAGRAM G
6
8
1
2
3
4
5
7
9
STAND / LO CART SUCTION ASSEMBLY
SUCTION ASSEMBLY T4 , T5, T7, T8 STAND / LO CART
OPTIONAL SUCTION FILTER
600-066-30 SUCTION FILTER, 30 MESH
REV. 11/2021
DIAGRAM F
ITEM # PART NUMBER DESCRIPTION QTY
1 600-233 NUT 1
2 600-168 WASHER 1
3 600-236 SNAP RING 1
4 600-164 O-RING 2
5 600-066-15 SUCTION FILTER, 15 MESH 1
6 600-542 HOSE CLAMP 1
7 600-442 HOSE CLIP 1
8 600-213 SUCTION HOSE ASSEMBLY 1
10 600-212 PRIME HOSE 1
