Tritech T4 - Page 57

57

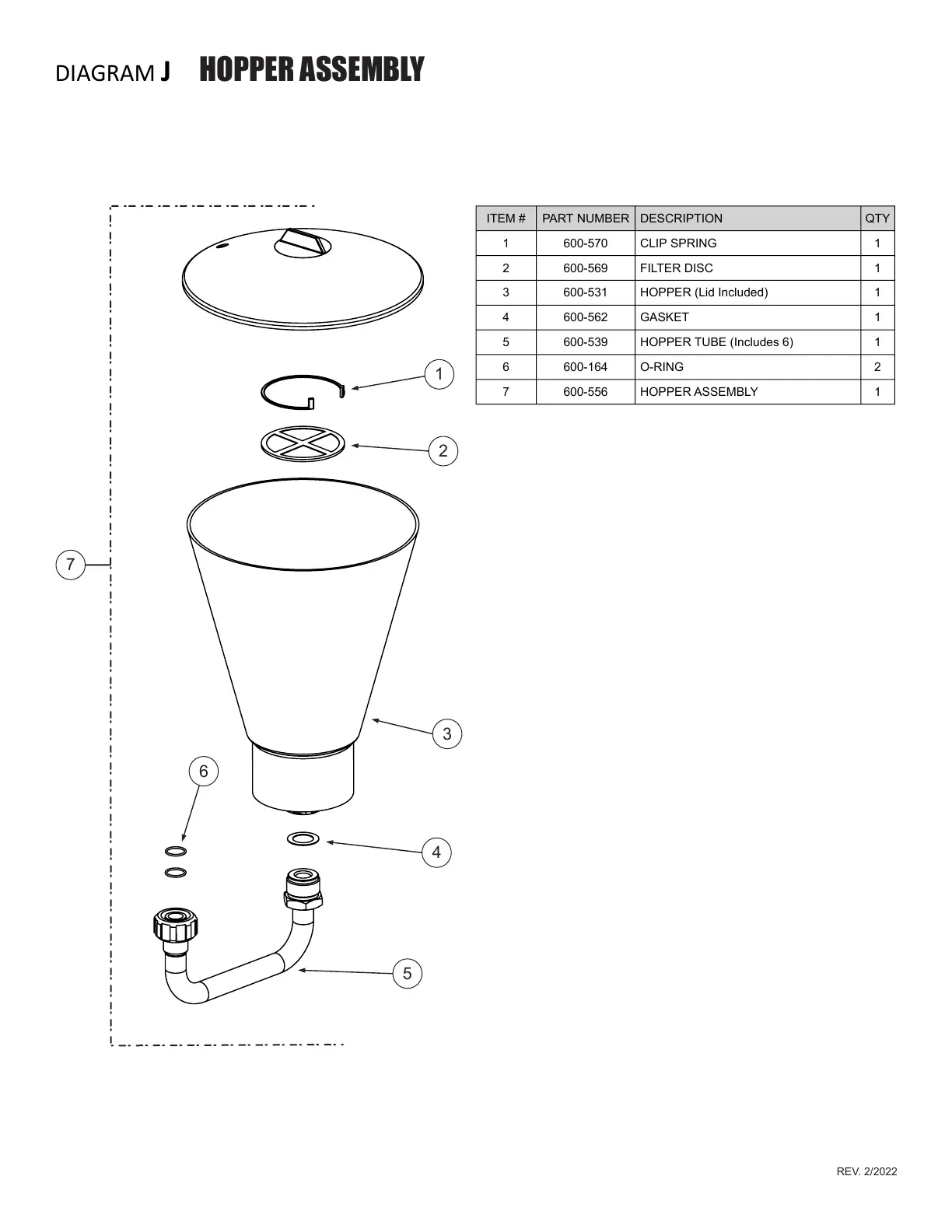

ITEM # PART NUMBER DESCRIPTION QTY
1 600-570 CLIP SPRING 1
2 600-569 FILTER DISC 1
3 600-531 HOPPER (Lid Included) 1
4 600-562 GASKET 1
5 600-539 HOPPER TUBE (Includes 6) 1
6 600-164 O-RING 2
7 600-556 HOPPER ASSEMBLY 1
HOPPER ASSEMBLY
REV. 2/2022
5
4
3
2
1
6
7
 J
ITEM # PART NUMBER DESCRIPTION QTY
1 ** 600-198
SCREW
1
2 600-351
CUP
1
3 600-215
STAND (BARE)
1
4 600-398
FRAME CAP
4
5 600-439
BOLT
4
6 600-407
STAND COMPLETE (Excludes 5)
1
7 600-388
HANDLE
1
8 600-382
SCREW
4
9 600-389
HI CART BASE FRAME
1
10 600-397
FRAME CAP
2
11 600-399
SNAP RING
4
12 600-468
WASHER
4
13 600-373
WHEEL
2
14 600-381
PIN
2
15 600-379
WASHER
2
16 600-378
HANDLE GUIDE
2
17 600-391
BUTTON SNAP
2
18 600-375
HI CART COMPLETE (Excludes 1,2 & 5)
1
19 600-429
LO CART BASE FRAME
1
20 600-430
LO CART COMPLETE (Excludes 5)
1
1
1
2
2
6
5
3
4
LO CART / HI CART / STAND FRAMES
STAND
NOTE: All of the parts needed to complete
the lo cart frame are listed above with the
hi cart frame.
HI CART
LO CART
7
8
9
5
10
19
20
11
12
13
1415
16
17
18
REV 1/2022
FRAME ASSEMBLIES T4 / T5 / T7 / T8
** DRILL SELF TAPPING SCREW (1) THROUGH THE TAB ON
THE CUP (2) INTO THE FRAME.
DIAGRAM I
