Tritech T5 - Page 48

48
1
1
1
12
13
2
3
4
16
15
14
18
5
6
7
8
9
10
11

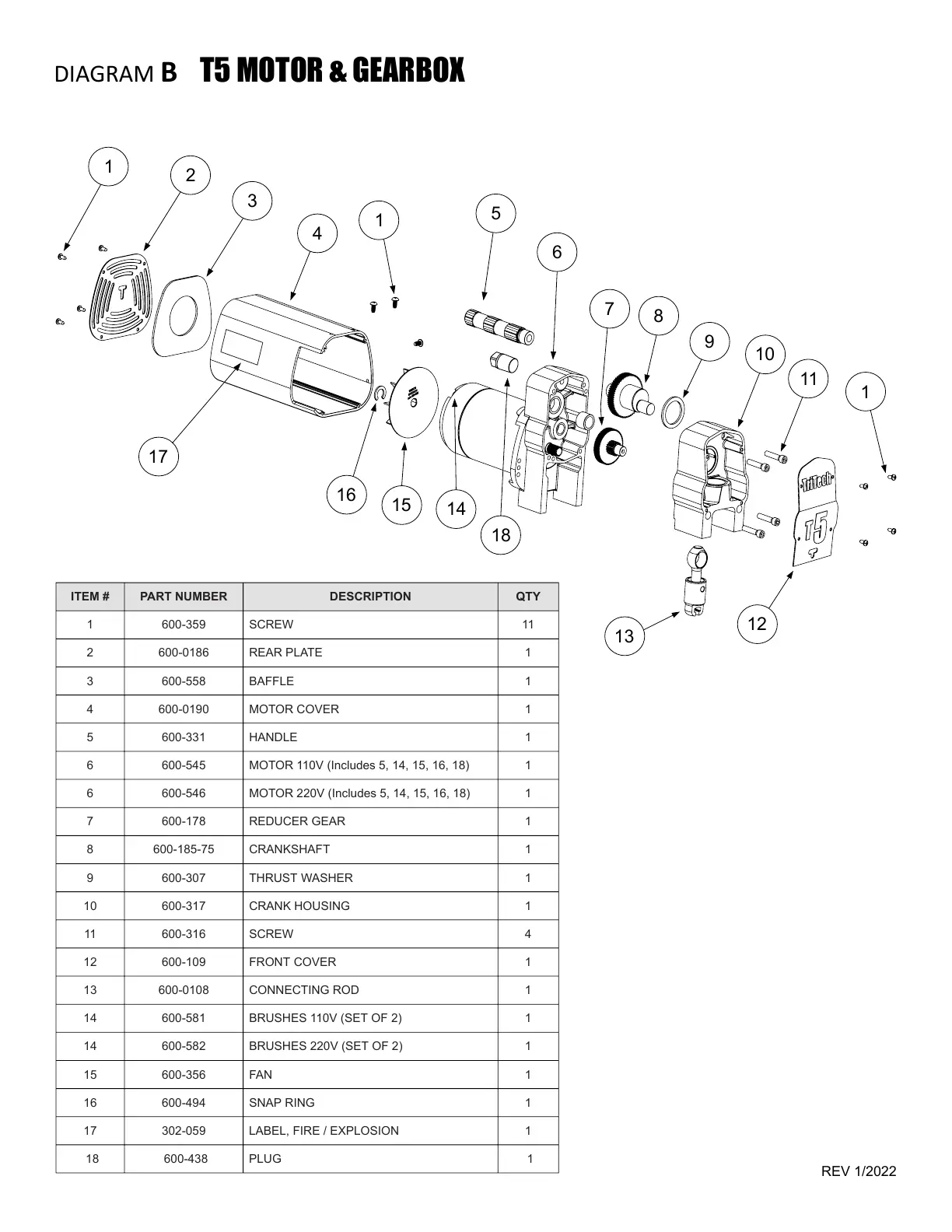

T5 MOTOR & GEARBOX
ITEM # PART NUMBER DESCRIPTION QTY
1 600-359 SCREW 11
2 600-0186 REAR PLATE 1
3 600-558 BAFFLE 1
4 600-0190 MOTOR COVER 1
5 600-331 HANDLE 1
6 600-545 MOTOR 110V (Includes 5, 14, 15, 16, 18) 1
6 600-546 MOTOR 220V (Includes 5, 14, 15, 16, 18) 1
7 600-178 REDUCER GEAR 1
8 600-185-75 CRANKSHAFT 1
9 600-307 THRUST WASHER 1
10 600-317 CRANK HOUSING 1
11 600-316 SCREW 4
12 600-109 FRONT COVER 1
13 600-0108 CONNECTING ROD 1
14 600-581 BRUSHES 110V (SET OF 2) 1
14 600-582 BRUSHES 220V (SET OF 2) 1
15 600-356 FAN 1
16 600-494 SNAP RING 1
17 302-059 LABEL, FIRE / EXPLOSION 1
18 600-438 PLUG 1
17
REV 1/2022
 B
