Triton Leona User Manual

Thermostatic shower pole
9
Upper
shower pole
Grub
screw
Bar valve
Fig.13

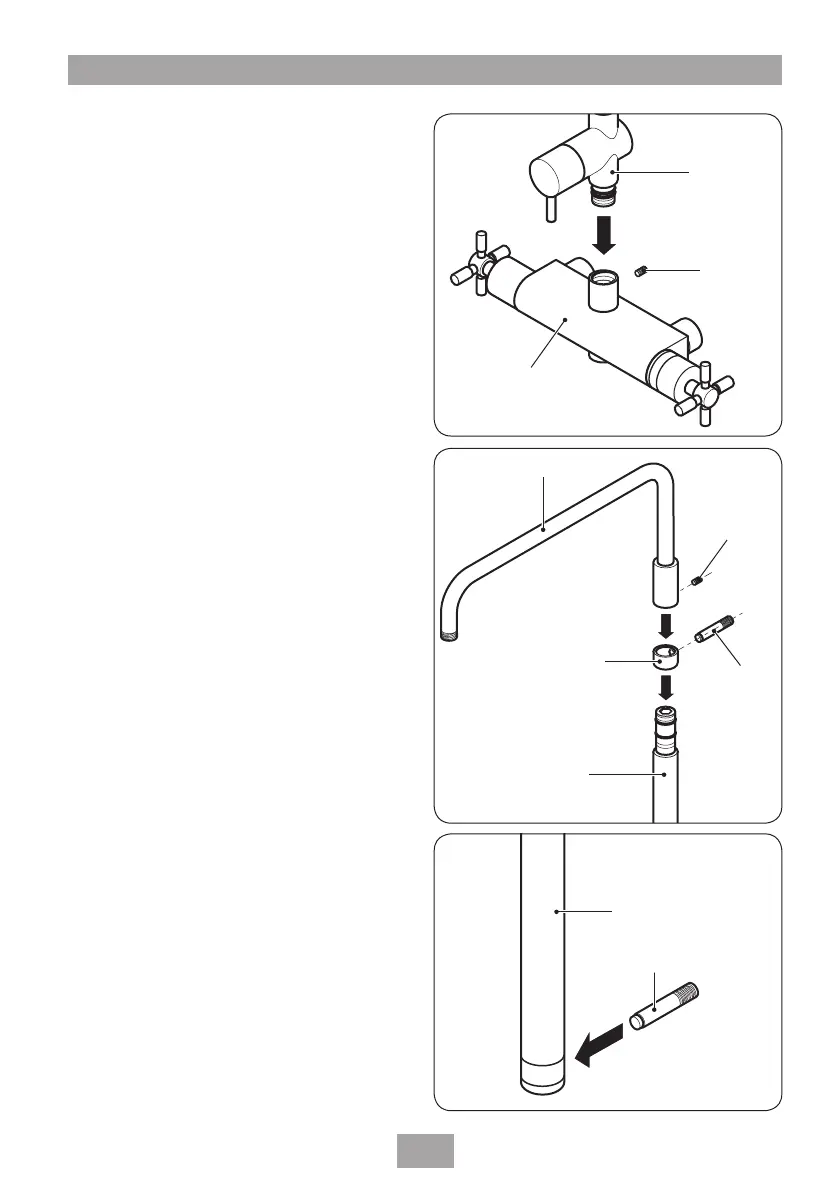

Assembling the shower pole
Assemble the shower pole on a clean flat surface
as follows:
Push fit the upper shower pole into the bar valve
section. Align, then secure using the grub screw
in the rear of the bar valve (fig.13).
Fit the bracket collar over the top of the upper
shower pole and align. Screw the support arm
into the collar and, using a suitable screwdriver,
tighten to secure to the shower pole (fig.14).
Making sure that the seals are in place, slide the
fixed head arm over the top of the upper shower
pole (fig.14). Align, then secure using the grub
screw in the base of the fixed head arm.
Screw the lower shower arm into the base of the
bar valve section.
Screw the lower support arm into the ring at the
base of the lower shower pole (fig.15). Align
the support arm to the rear and, using a suitable
screwdriver, tighten the arm to the lower shower
pole.
Fixed head arm
Grub
screw
Support
arm
Mounting bracket
collar
Upper
shower pole
Fig.14
Lower
shower pole
Support arm
Fig.15
