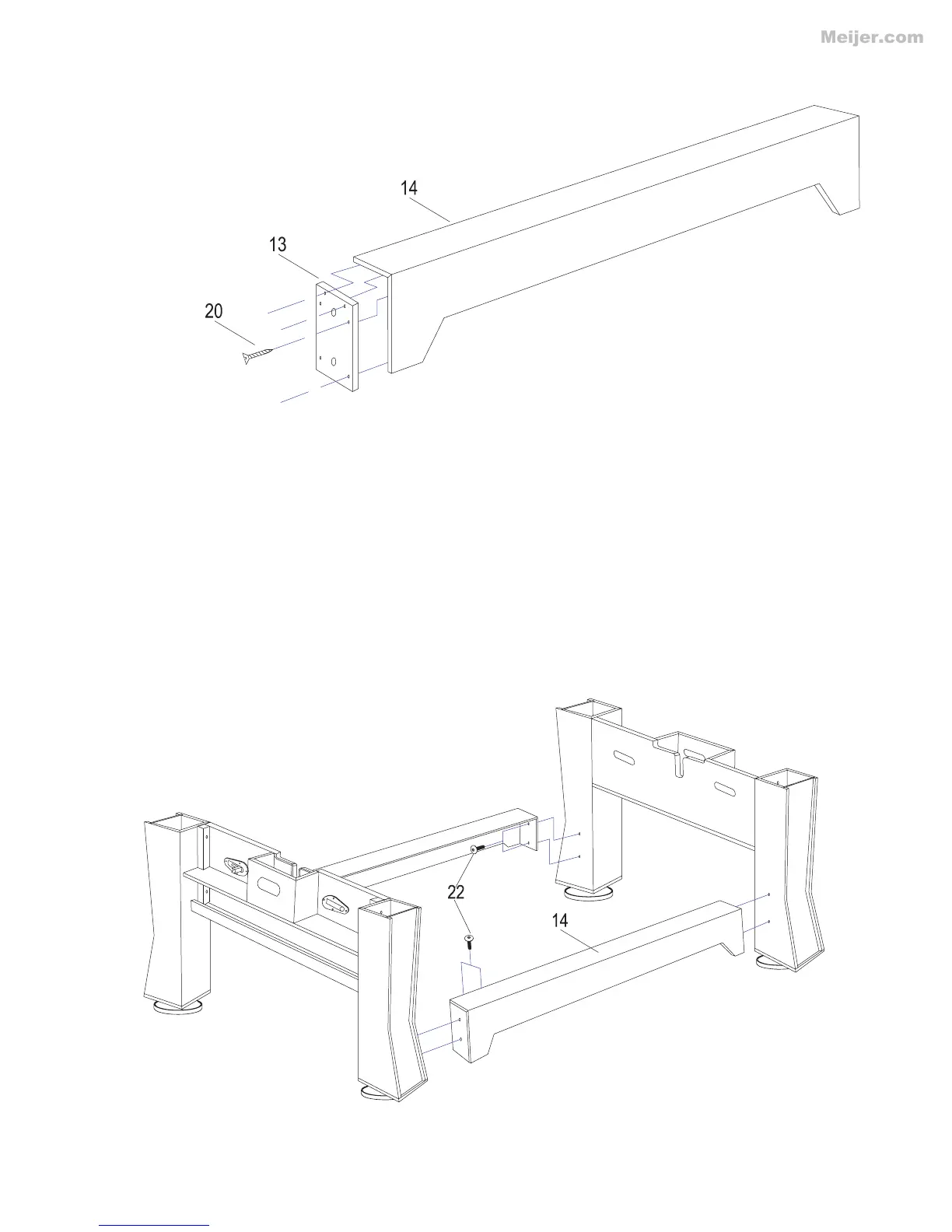

Assemble the outside rails (#14) by screwing the apron-end board
(#13) to each end of the outside rail (#14) with screw (#20).
With the help of another person attach the outside rails (#14) (flat side up) to the assembled leg pedes-
tals by aligning the holes in the outside rails (#14) with the predrilled holes in the leg using screw (#22).
Step 6
Step 5
