Twistgrip

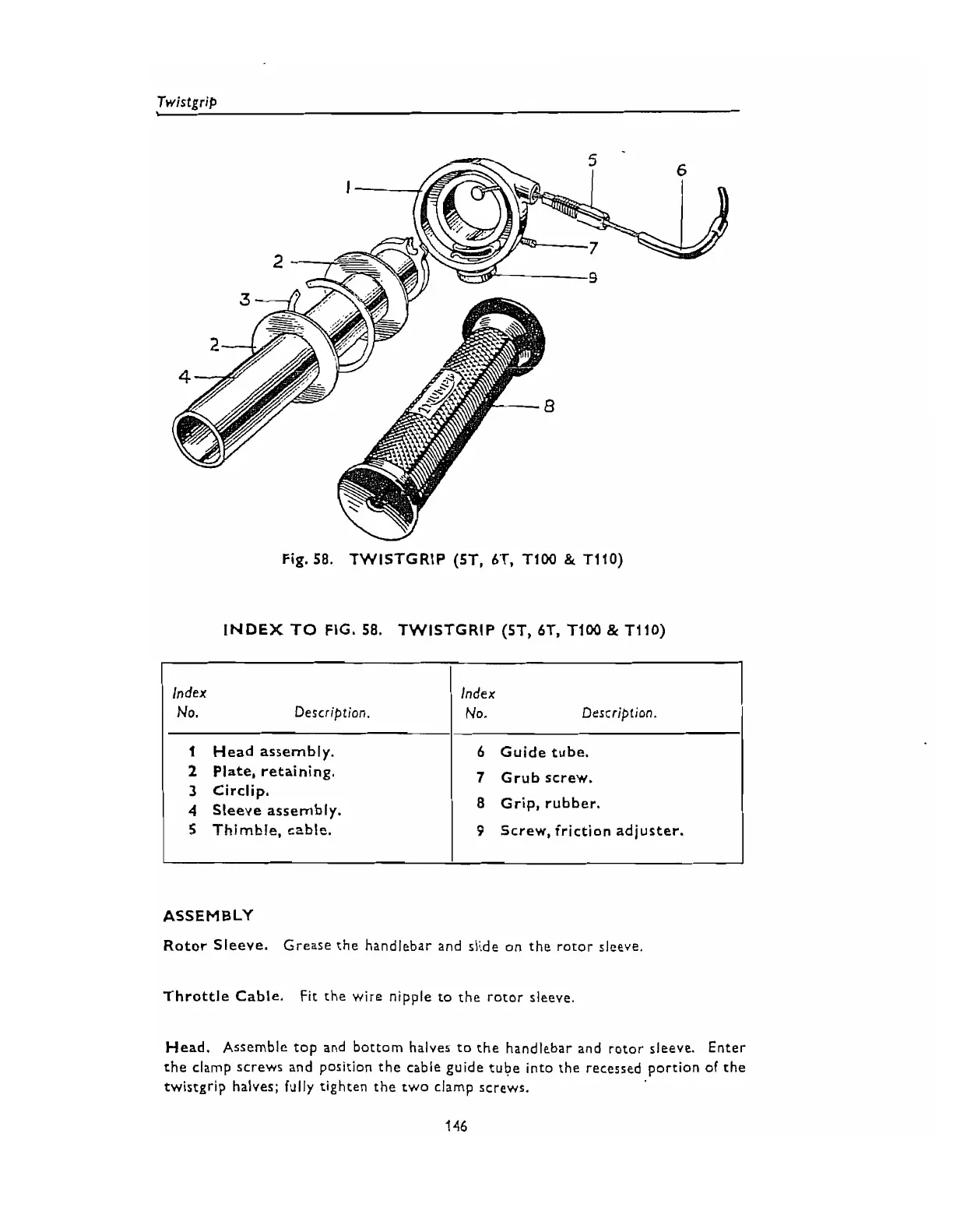

Fig. 58. TWISTGRIP (ST, 6T,
TIM
&
T110)
ASSEMBLY
Rotor Sleeve.
Grease the handlebar and slide on the rotor sleeve
INDEX
TO
FIG. 58. TWISTGRIP (ST, 6~, TIM
&
~110)
Throttle Cable.
Fit the wire nipple to the rotor sleeve.
Index
No. Description.
1
Head assembly.
2
Plate. retaining.
3
Circlip.
4
Sleeve assembly.
5
Thimble, cable.
Head. Assemble top and bottom halves to the handlebar and rotor sleeve. Enter
the clamp screws and position the cable guide tube into the recessed portion of the
twistgrip halves; fully tighten the two clamp screws.
lndex
No.
Description.
6 Guide tube.
7
Grub screw.
8
Grip, rubber.
9
Screw, friction adjuster.
