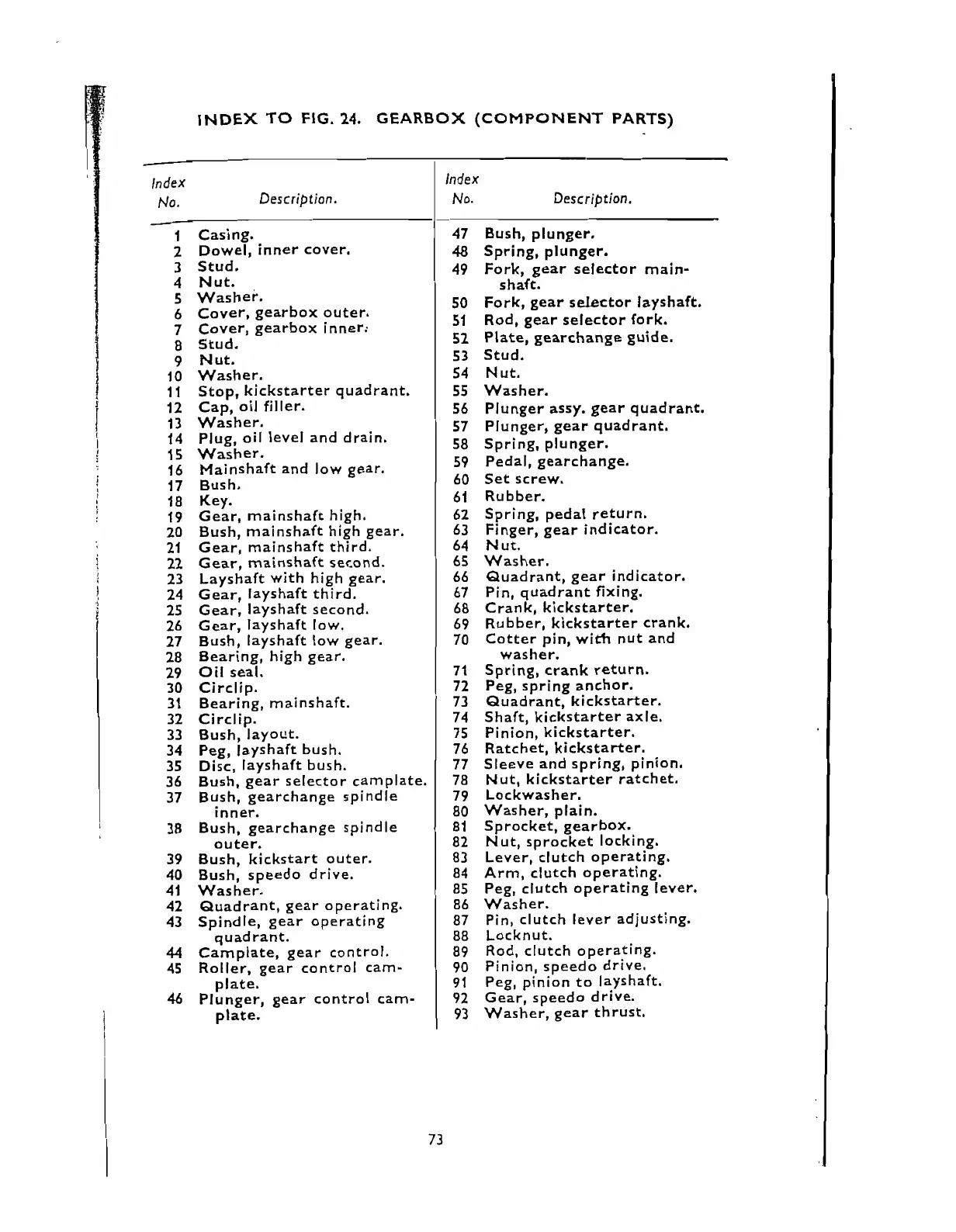

INDEX TO FIG.
24.
GEARBOX (COMPONENT PARTS)
Index Index
No. Description.
I
No. Description.
-
1
Casing.
2
Dowel, inner cover.
3
Stud.
4
Nut.
5
Washer.
6
Cover, gearbox outer.
7
Cover, gearbox inner;
8
Stud.
9
Nut.
Washer.
Stop, kickstarter quadrant.
Cap, oil filler.
Washer.
Plug, oil level and drain.
Washer.
Mainshaft and low gear.
Bush.
Key.
Gear. rnainshaft hinh.
~ush; rnainshaft high gear.
Gear, mainshaft third.
Gear, mainshaft second.
Layshaft with high gear.
Gear, layshaft third.
Gear, layshaft second.
Gear, layshaft low.
Bush, layshaft low gear.
Bearing, high gear.
Oil
seal.
Circlip.
Bearina, rnainshaft.
circlip:.
Bush, layoct.
Peg, layshaft bush.
Disc, layshaft bush.
Bush, gear selector camplate.
Bush, gearchange spindle
Inner.
Bush, gearchange spindle
outer.
Bush, kickstart outer.
Bush, speedo drive.
Washer.
Quadrant, gear operating.
Spindle, gear operating
quadrant.
Camplate, gear control.
Roller, gear control
carn-
plate.
Plunger, gear control cam-
plate.
47
Bush, plunger.
48
Spring. plunger.
49
Fork, gear selector rnain-
shaft.
50
Fork, gear selector layshaft.
51
Rod, gear selector fork.
52
Plate, gearchange guide.
53
Stud.
Nut.
Washer.
Plunger assy. gear quadrant.
Plunger, gear quadrant.
Spring, plunger.
Pedal, gearchange.
Set screw.
Rubber.
Spring, pedal return.
Finger, gear indicator.
Nut.
Washer.
Quadrant, gear indicator.
Pin, quadrant fixing.
Crank, kickstarter.
Rubber, kickstarter crank.
Cotter pin, with nut and
washer.
Spring, crank return.
Peg, spring anchor.
Quadrant, kickstarter.
Shaft, kickstarter axle.
Pinion, kickstarter.
Ratchet, kickstarter.
Sleeve and spring, pinion.
Nut, kickstarter ratchet.
Lockwasher.
Washer, plain.
Sprocket, gearbox.
Nut, sprocket locking.
Lever, clutch operating.
Arm, clutch operating.
Peg, clutch operating lever.
Washer.
Pin, clutch lever adjusting.
Locknut.
Rod, clutch operating.
Pinion, speedo drive.
Peg, pinion to layshaft.
Gear, speedo drive.
Washer, gear thrust.
