When disconnecting a connector, never pull directly on the wires as this may result in
cable and connector damage.
Never disconnect the ABS ECM when the ignition switch is in the ON position as this
may cause multiple fault codes to be logged in the ECM memory.
Always disconnect the battery negative (black) lead before disconnecting the ABS
ECM.
1. Press the locking device and move the lever to the rear of the connector while
disconnecting it from the ABS ECM.
2. When disconnected, ensure the lever is fully to the rear of the connector. An audible
click can be heard when it is locked in position.

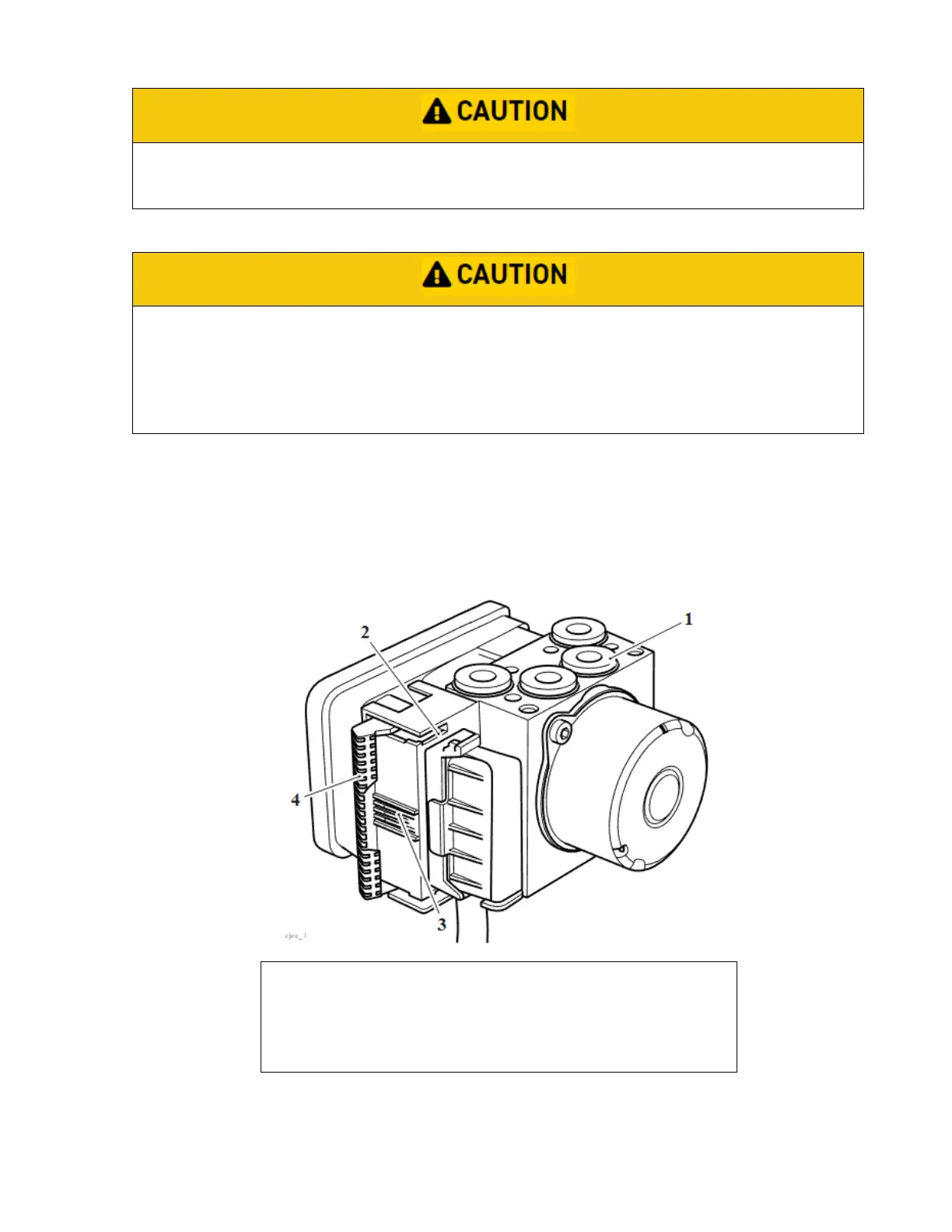

1. ABS modulator (shown removed for clarity)
2. Connector
3. Locking device
4. Lever
