Relays
Identification and Location

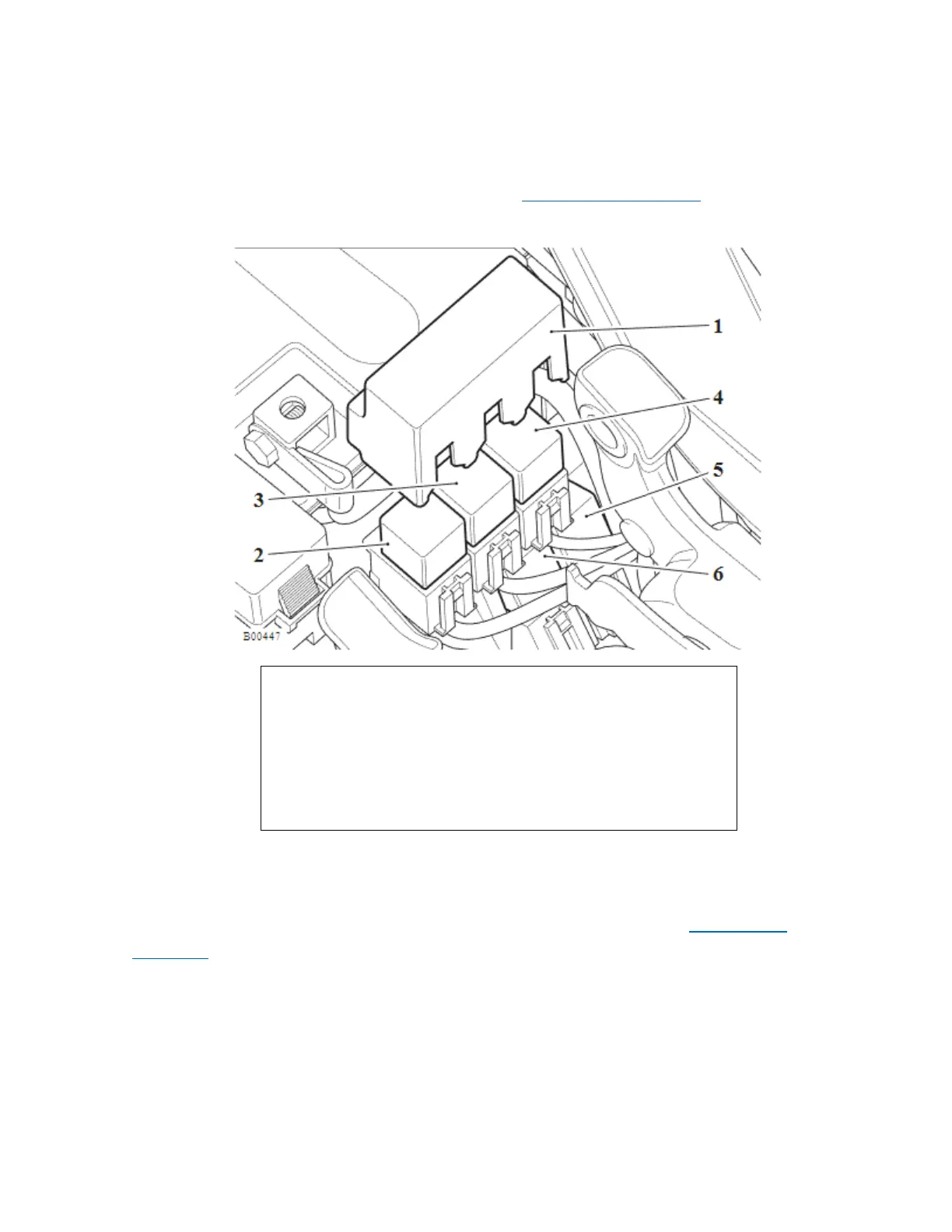

Five of the relays can be found in front of the battery under the seat. To gain access to
these relays remove the seat, the fuel tank (see Fuel Tank - Removal) and the relay
cover.
1. Relay cover
2. R13 – Accessory
3. R07 - Engine management
4. R03 - Fuel pump
5. R09 - Starter motor
6. R02 Ignition system
Three relays are located on the right hand side of the frame in front of the ABS
modulator. To gain access to these relays remove the fuel tank (see Fuel Tank -
Removal) and the relay cover.
