1330
Test
Result
Action
6
Check cable for short circuit:
- Keyless ECM pin 6 to Keyless ECM pin 8
Keyless ECM pin 15 to Keyless ECM pin 16
OK
Proceed to test 7
7
Reconnect harness, clear fault code and run
engine to verify fault cleared
OK
Action complete – quit test
Fault
still
present
Contact Triumph service
*It may not be possible to accurately measure 0.70 to 0.85 Ohms using standard
workshop equipment. When measuring the resistance, a reading of 0 to 3 Ohms should
indicate a normally functioning LF antenna coil.

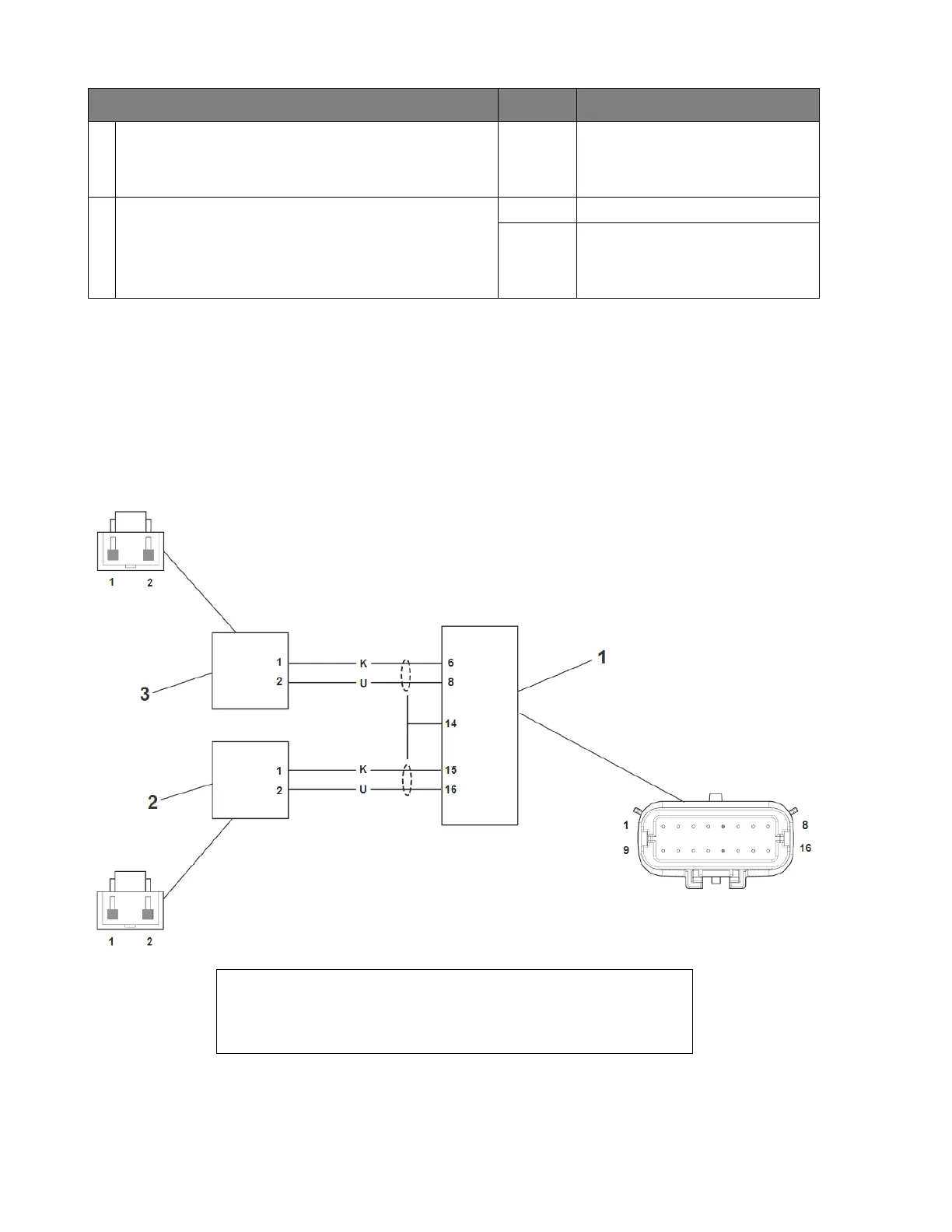

Circuit diagram
1. Keyless ECM
2. LF Antenna rear
3. LF Antenna front
