6. Fit the SAI pipe to the air filter element box and secure with its clip.

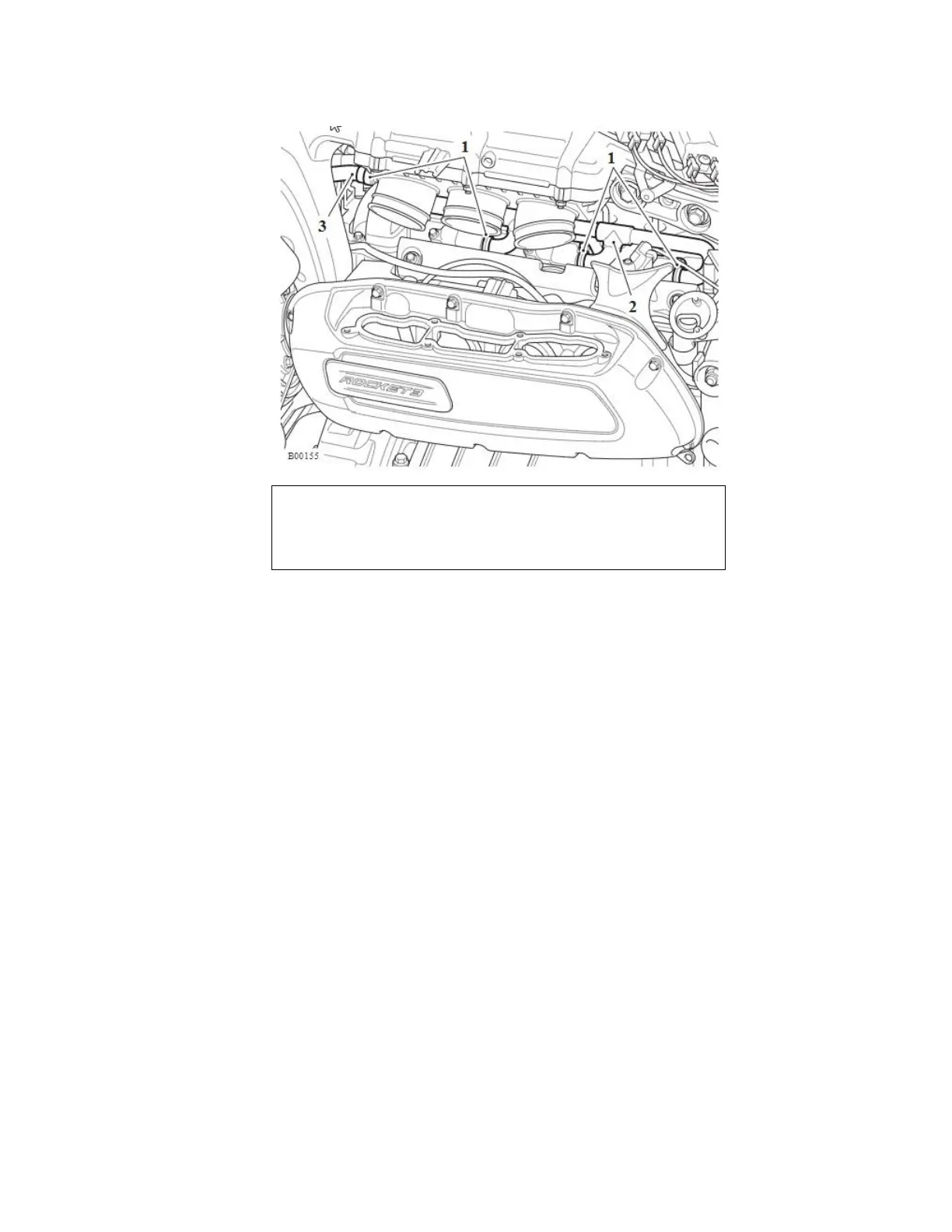

1. Clips
2. SAI pipe to reed valves
3. SAI pipe to air filter box
7. Fit a new gasket to the plenum cover for the air intake runner.
8. Fit the air intake runner to the plenum cover and the air filter element box. Secure to
the plenum cover with four new fixings in the following three stages:
9. Stage 1
• Fit the two fixings for the plenum cover finisher to the outer fixing position on the
plenum cover. Do not fully tighten.
10. Stage 2
• Tighten the fixings one to four in the sequence shown to 10 Nm.
