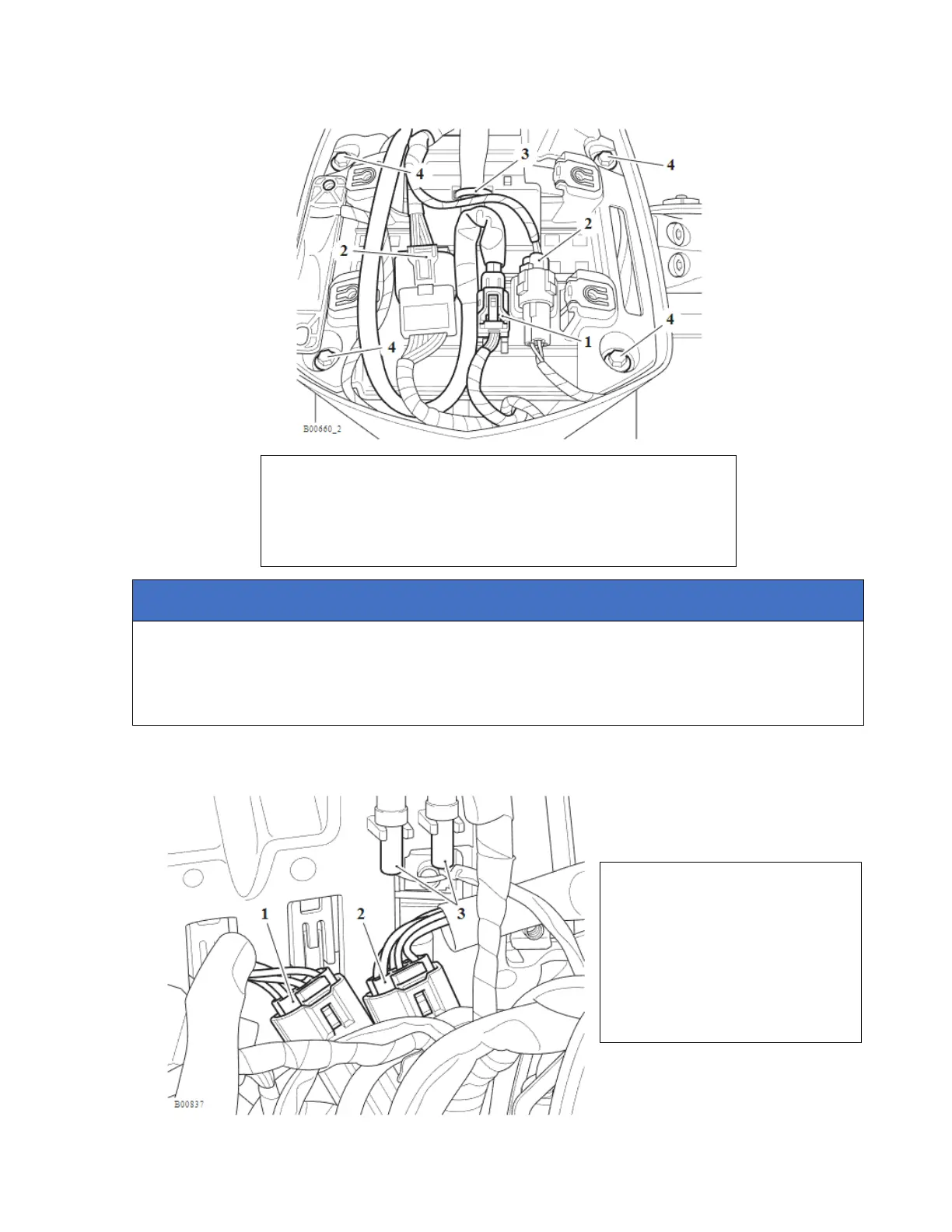

5. Release the fixings and detach the flyscreen mounting from the front subframe.
1. Twist grip position sensor connector
2. Handlebar sub harness connectors
3. Cable tie (one of two shown)
4. Flyscreen mounting fixings
NOTICE
Note the routing of the headlight harnesses and their retaining S-clips on the front
subframe for installation.
The main harness for the right hand headlight can be identified by the red tape on it.
6. Turn the flyscreen mounting over and disconnect the headlight connectors from the
main harness.
1. Left hand headlight
connector
2. Right hand headlight
connector
3. Right hand direction
indicator connectors
