116

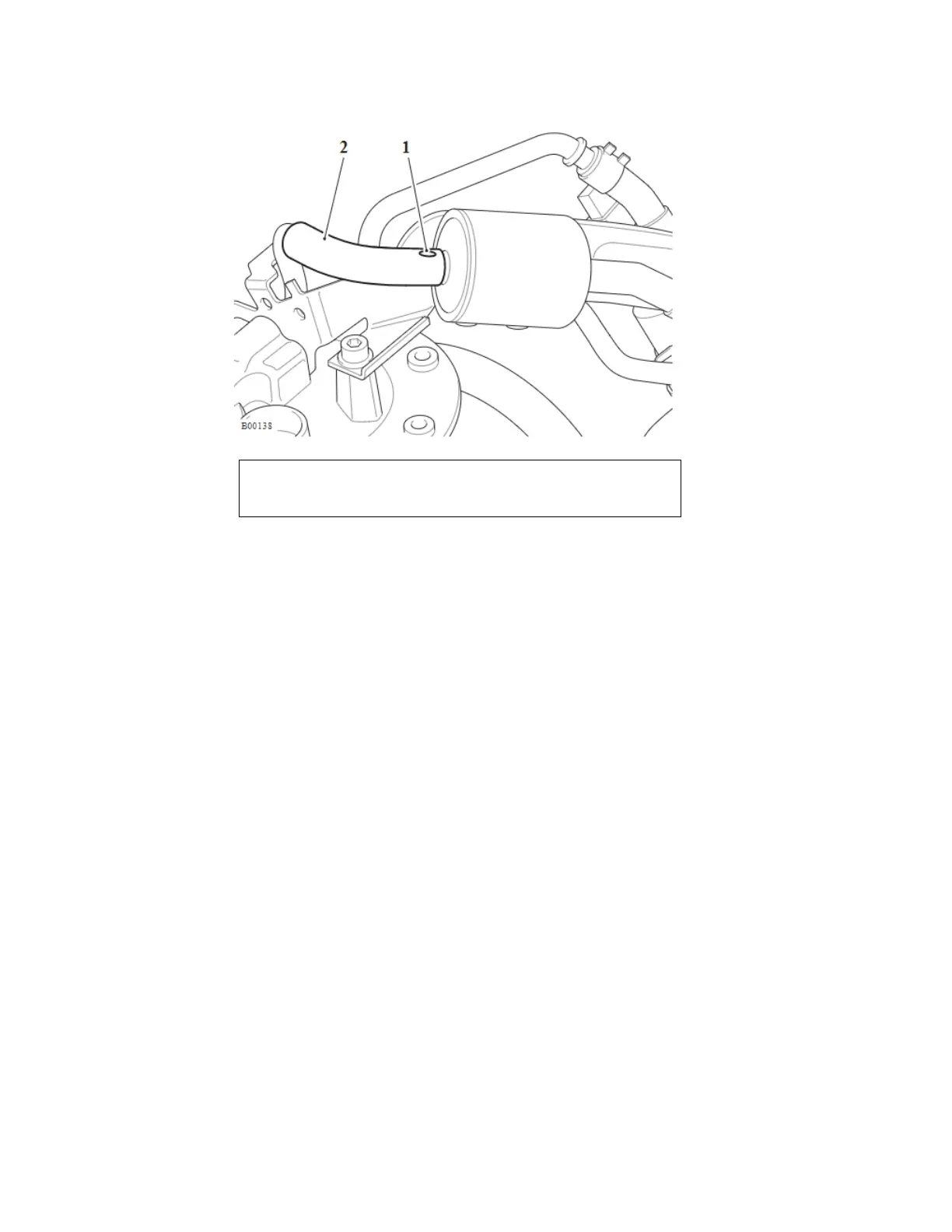

7. Remove the fuel hose from the outlet of the fuel filter.
1. Dot alignment mark
2. Fuel outlet pipe
Inspection
1. Inspect all hoses for cracks, splits, fraying and other damage. Replace as necessary.
2. Check all hose clamps for cracks and signs of distortion. Replace as necessary.
3. Check the mesh filter for damage and replace if necessary.
Installation
1. Install the fuel filter to the hose from the fuel pump, ensuring the arrow on the filter
points away from the pump.
2. Fit the fuel hose to the outlet of the fuel filter, make sure the dot alignment mark is
positioned as noted for removal.
3. Attach the fuel filter hose to the fuel outlet pipe.
4. Secure the two filter hoses with the three hose clips, make sure the orientation of the
clips are as noted for removal.
