10. Connect the crankshaft position sensor the main harness and attach the connector to
the battery box outer moulding.
11. Route the alternator harness to the regulator/rectifier as noted for removal. Make
sure the harness is tight around the starter motor housing to avoid contact with the
exhaust heat shield.
12. Secure the harnesses to the wire guide as noted for removal.

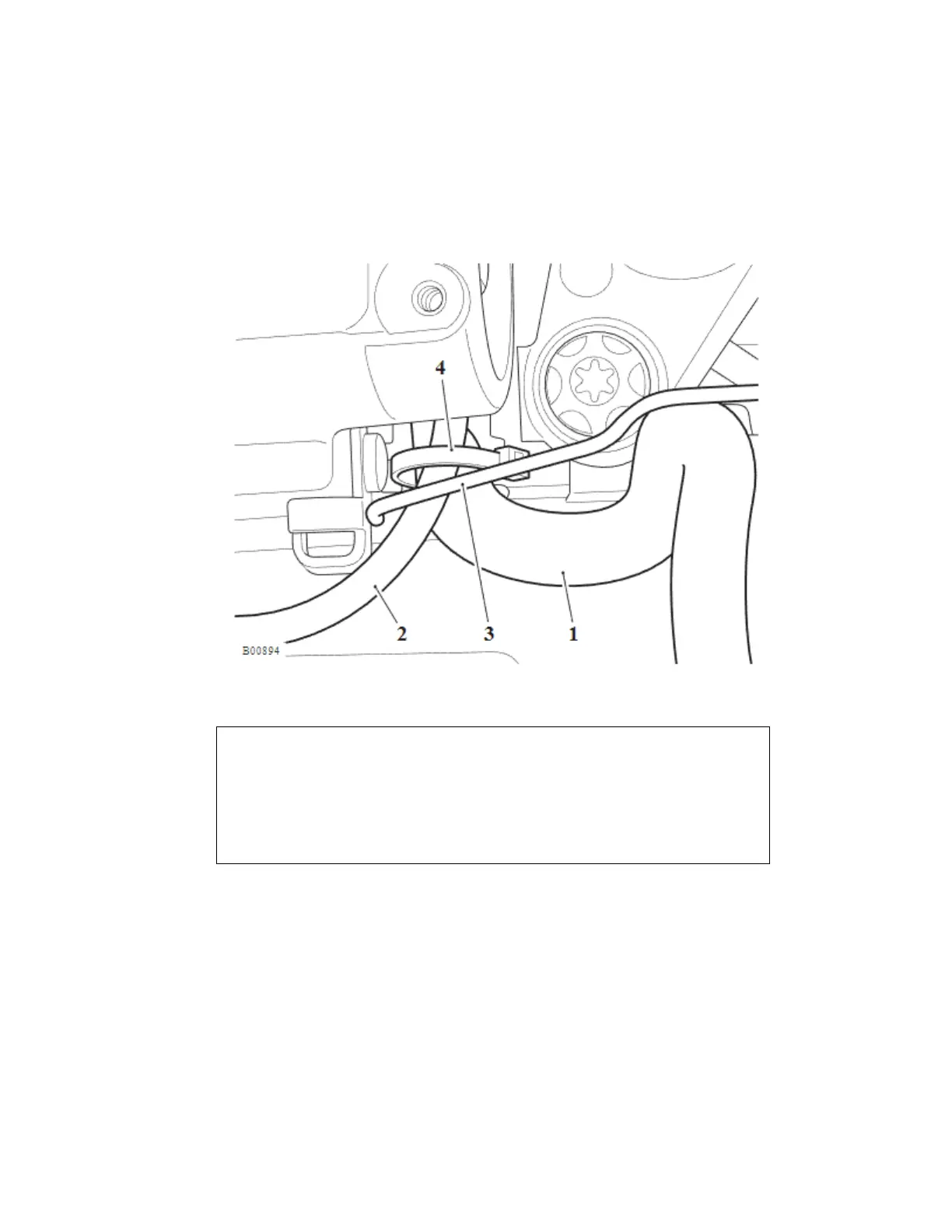

1. Alternator harness
2. Starter motor, Triumph shift assist, side stand and gear
position sensor harnesses
3. Wire guide
4. Cable tie
