3. Position a new gasket to the sump.
4. Make sure the four locating dowels are fitted to the sump as noted for removal.
5. Refit the cover ensuring that the gasket does not become dislodged.

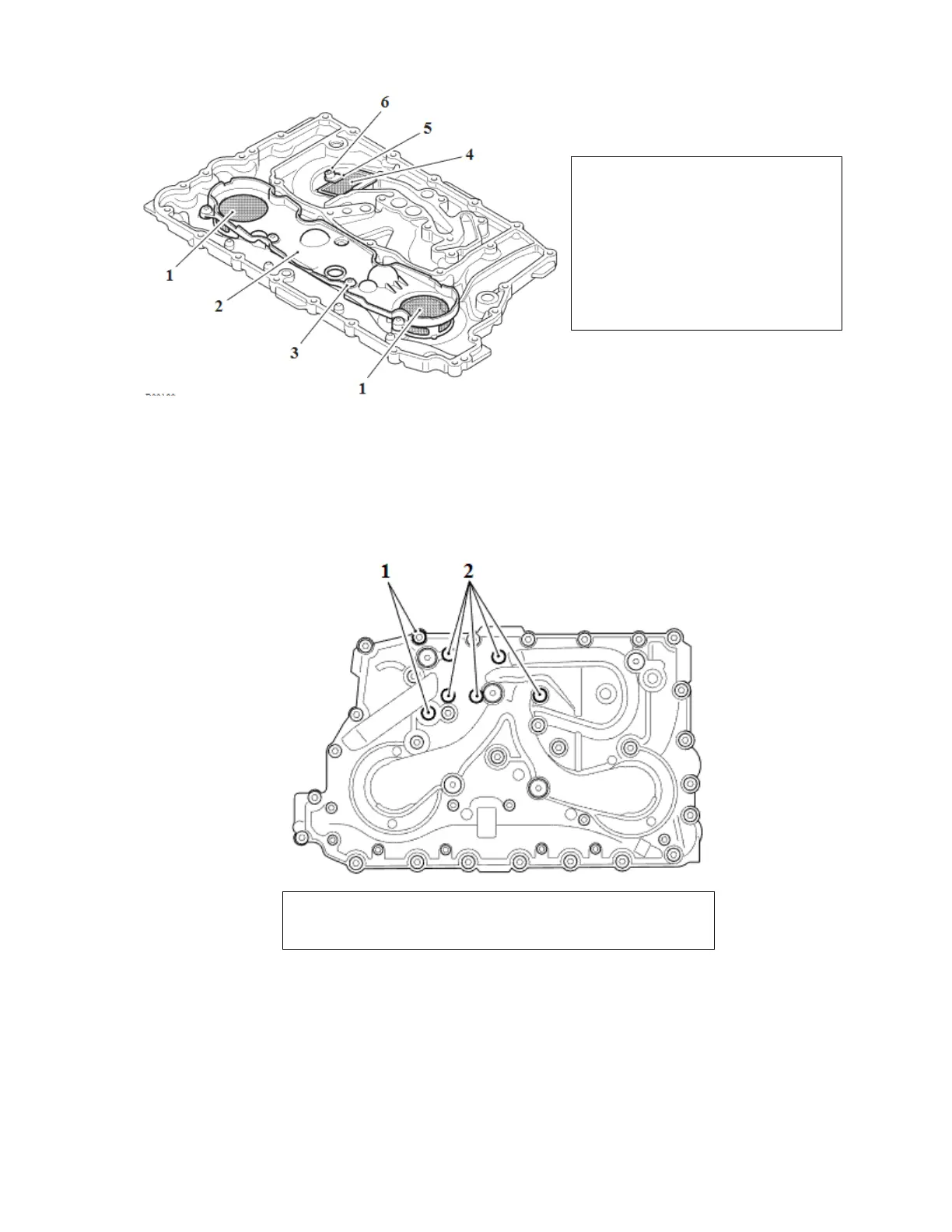

6. Fit the sump cover with five new M6 x 50 mm fixings and the two M6 x 130 mm
positioned as noted for removal.
1. M6 x 130 mm fixings
2. M6 x 50 mm fixings
7. Fit new sealing washers to the three sump plugs. Fit and tighten the plugs to 30 Nm.
8. Fit the remaining M6 x 30 mm fixings and tighten all the sump fixings in the
following two stages:
