Camshaft Drive Chain Tensioner Blade – Disassembly
NOTICE
For the purpose of this instruction, the top of the tensioner blade is where the pad is
located.

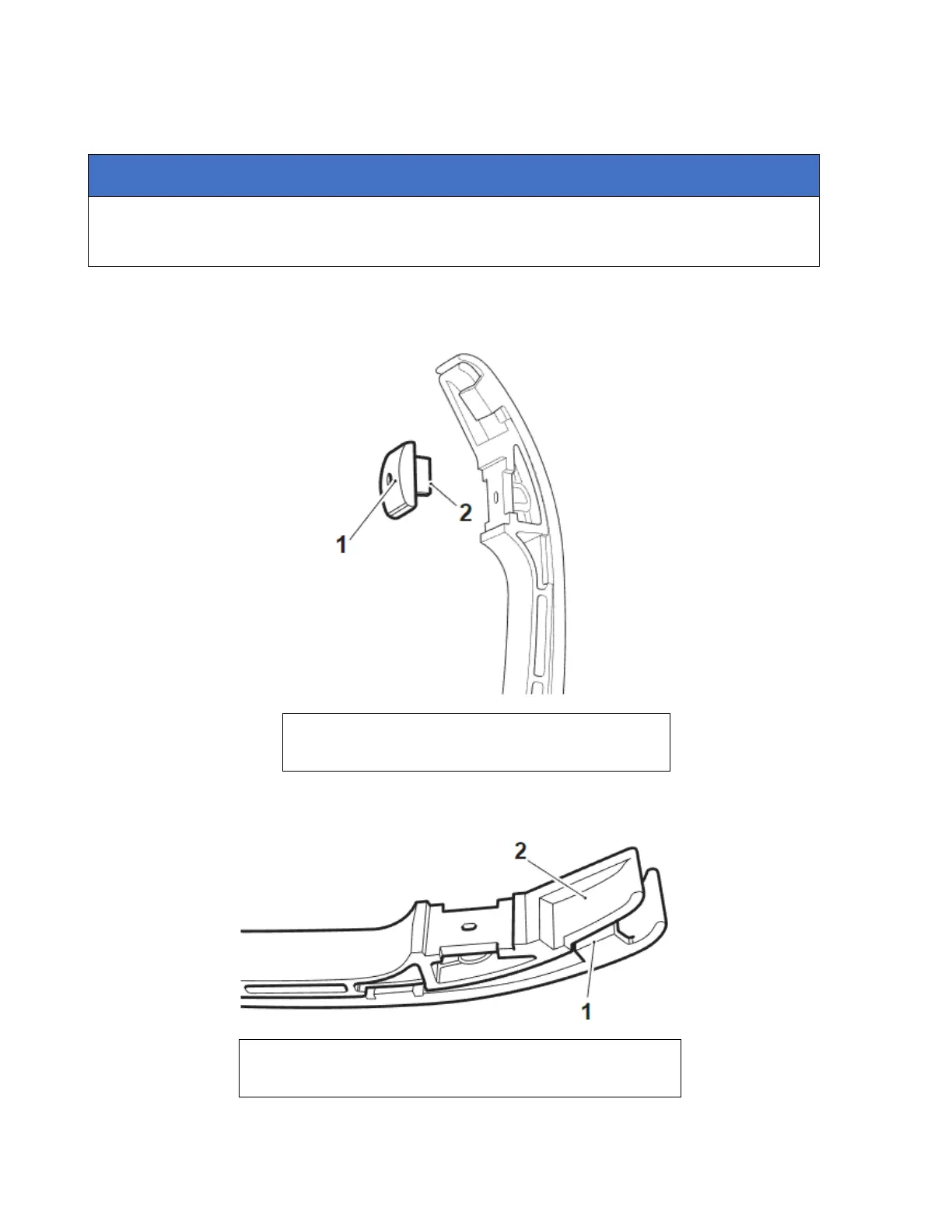

2. Release the clips and remove the pad.
2. Pad
3. Clip (one side shown)
2. Detach the top hook from the tensioner blade.
1. Top hook
2. Tensioner blade
