3. Remove the clutch centre.
The one outermost and two innermost friction plates differ from the seven centre
plates and must not be fitted in any other positions. The innermost steel plate differs
from the eight other steel plates and cannot be fitted in any other position.
4. Noting their orientation, remove all the clutch friction plates and steel plates together
with the anti-judder spring and anti-judder seat washer.
Record the orientation of all components as they are removed. The plates must be
assembled in the same order.

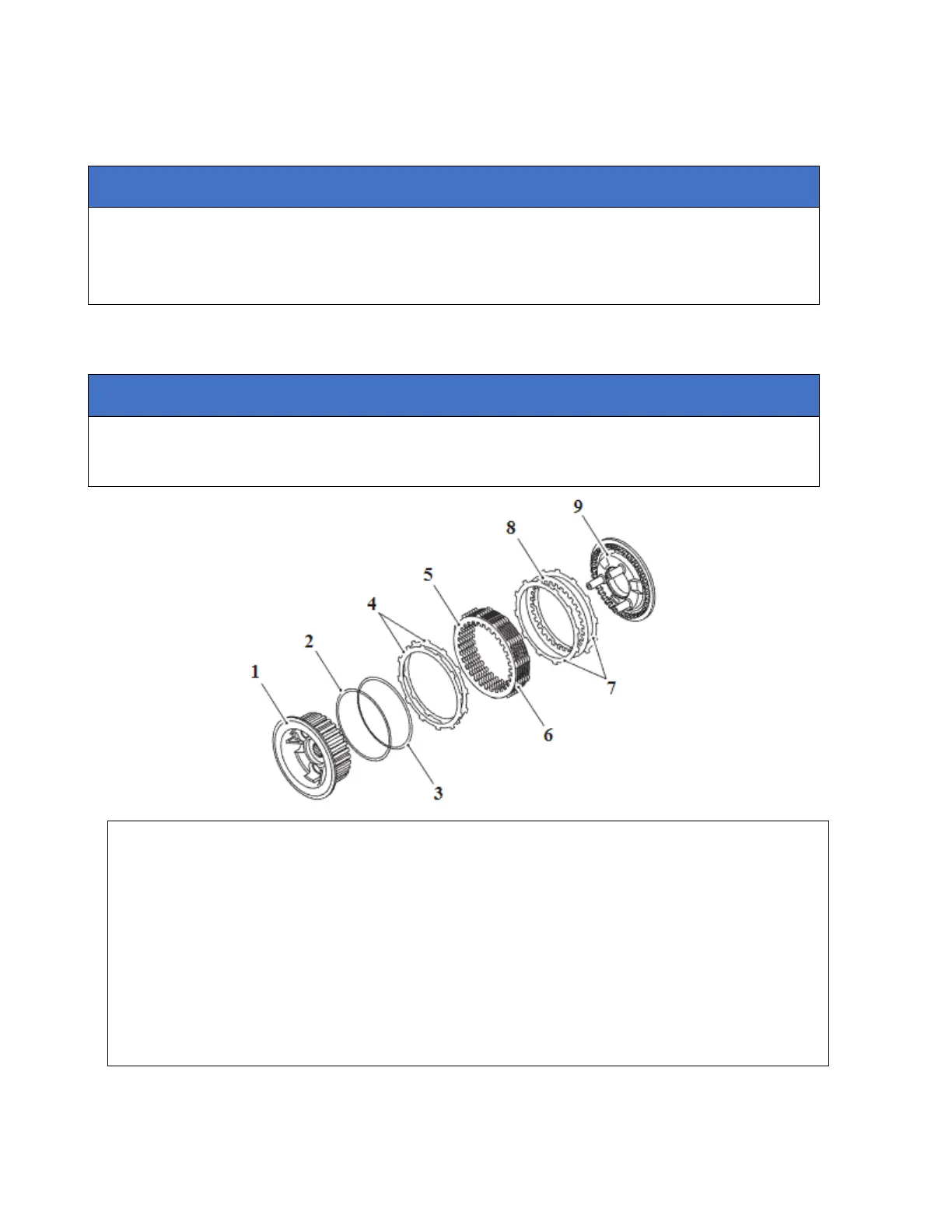

1. Clutch Centre
2. Anti-judder seat washer
3. Anti-judder spring
4. Outer friction plate
5. 8 x centre steel plates
6. x centre friction plates
7. x Inner friction plates
8. Inner steel plate
9. Pressure plate
