NOTICE
The alignment mark on the flange of T3880501 - Crankshaft Locking Pin is in line with
the gear tooth at the other end of the service tool. Use this alignment mark as a guide
when inserting the service tool.
4. Insert service tool T3880501 through the hole in the crankcase. Make sure the gear
tooth on the service tool fits between the two teeth with the alignment marks.

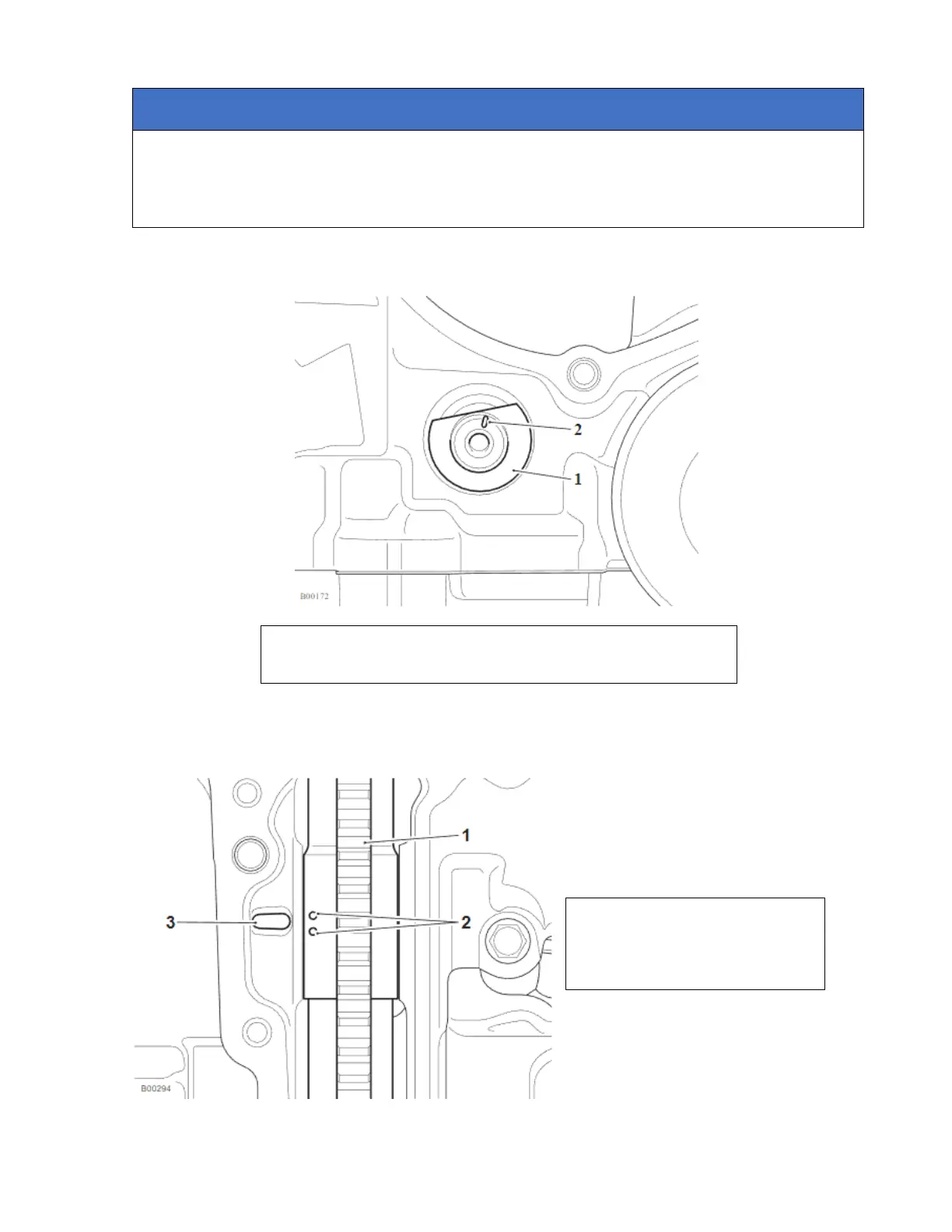

1. T3880501 - Crankshaft Locking Pin
2. Alignment mark
5. Check that the rear balancer two alignment marks are aligned with the protruding rib
on the crankcase.
1. Rear balancer
2. Alignment marks
3. Protruding rib
