Pressure System - Transmission
Oil is fed to the transmission through drilings to the transmission cover. At the
transmission cover, oil is fed to the output shaft and its front bearing, spray bar and the
transmission bearing cap. From the bearing cap, oil is fed to the input shaft rear bearing,
input shaft and the selector fork shaft. The torsional damper is fed oil from the output
shaft.
The input shaft also supplies oil to the clutch assembly.
Oil is circulated along the transmission gear shafts and the torsional damper to exit
holes that feed directly to the bearings, gears and selector forks. The spray bar also
lubricates the gears and the selector forks.

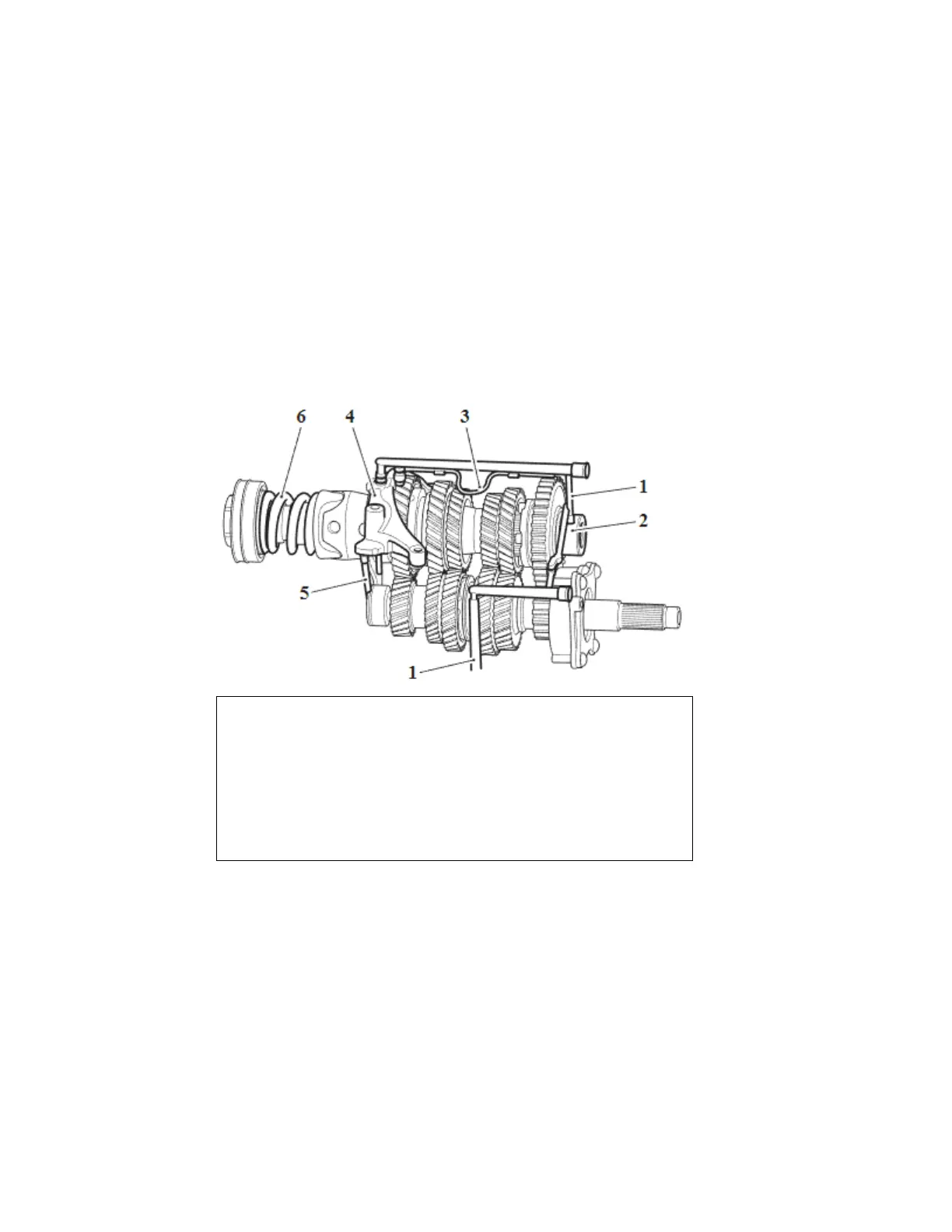

1. Oil supply
2. Output shaft front bearing
3. Spray bar
4. Bearing cap
5. Oil supply to input shaft
6. Torsional damper
