590
• Throttle position sensor - situated on the left hand side of the throttle bodies.
The throttle position sensor is used to relay throttle position information to the
engine ECM.
• Gear position sensor - situated in the upper crankcase near the starter motor.
The gear position sensor provides the engine ECM with selected gear information.
This is used to prevent the engine from starting if the transmission is in gear. The
TFT instruments will show the selected gear.
• Triumph Shift Assist (TSA) (if fitted) - situated on the gear change linkage.
Triumph Shift Assist adjusts the engine torque to allow gears to engage, without
closure of the throttle twist grip or operation of the clutch. This feature works for
both up shifts and down shifts of gear. The clutch must be used for stopping and
pulling away.

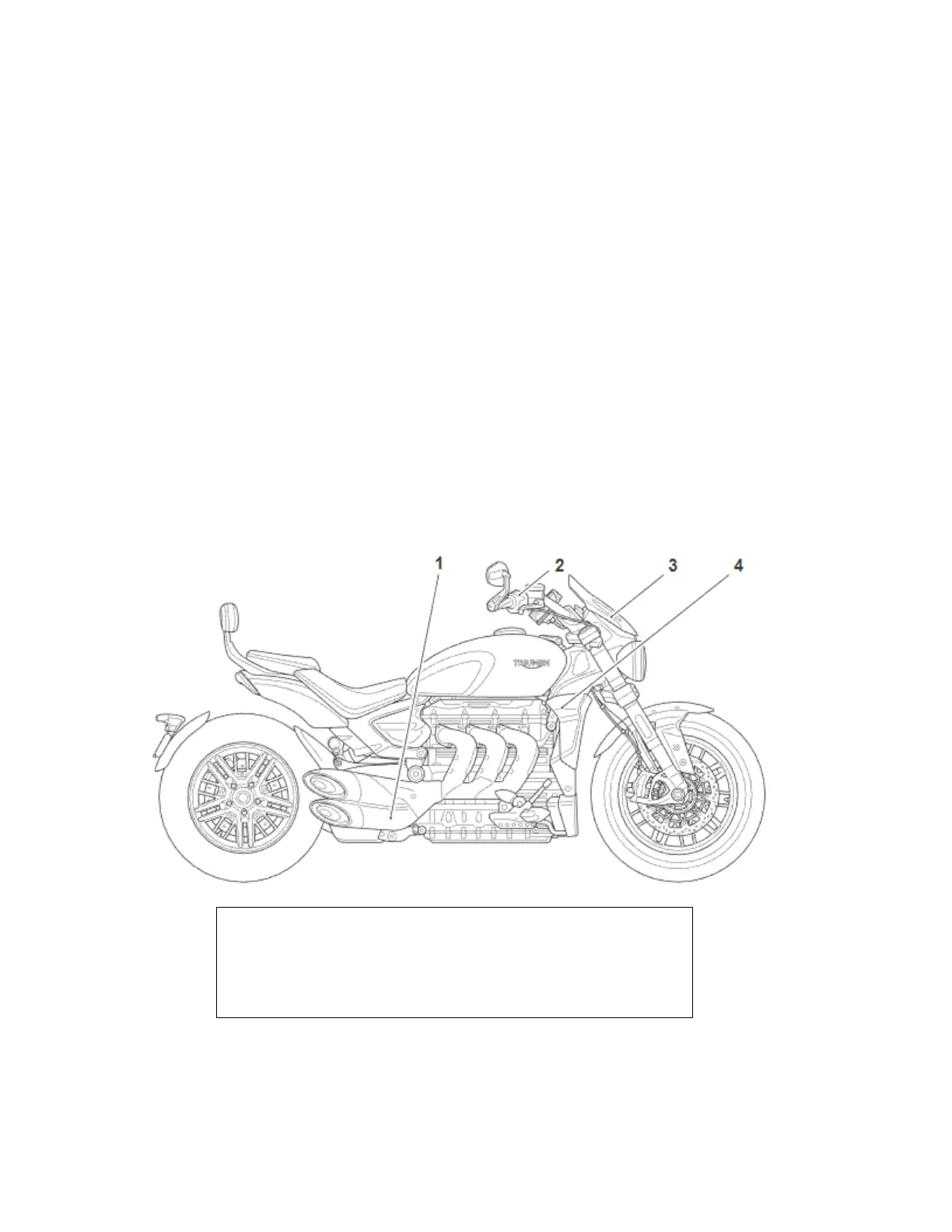

Sensor Locations
1. Oxygen sensor
2. Twist grip position sensor
3. Ambient air temperature sensor
4. Coolant temperature sensor
