System Diagnostic Tool Connection
1. To connect the Triumph diagnostic interface to the motorcycle, remove the seat (see
Seat - Removal) and release the diagnostic connector from its locating tang.

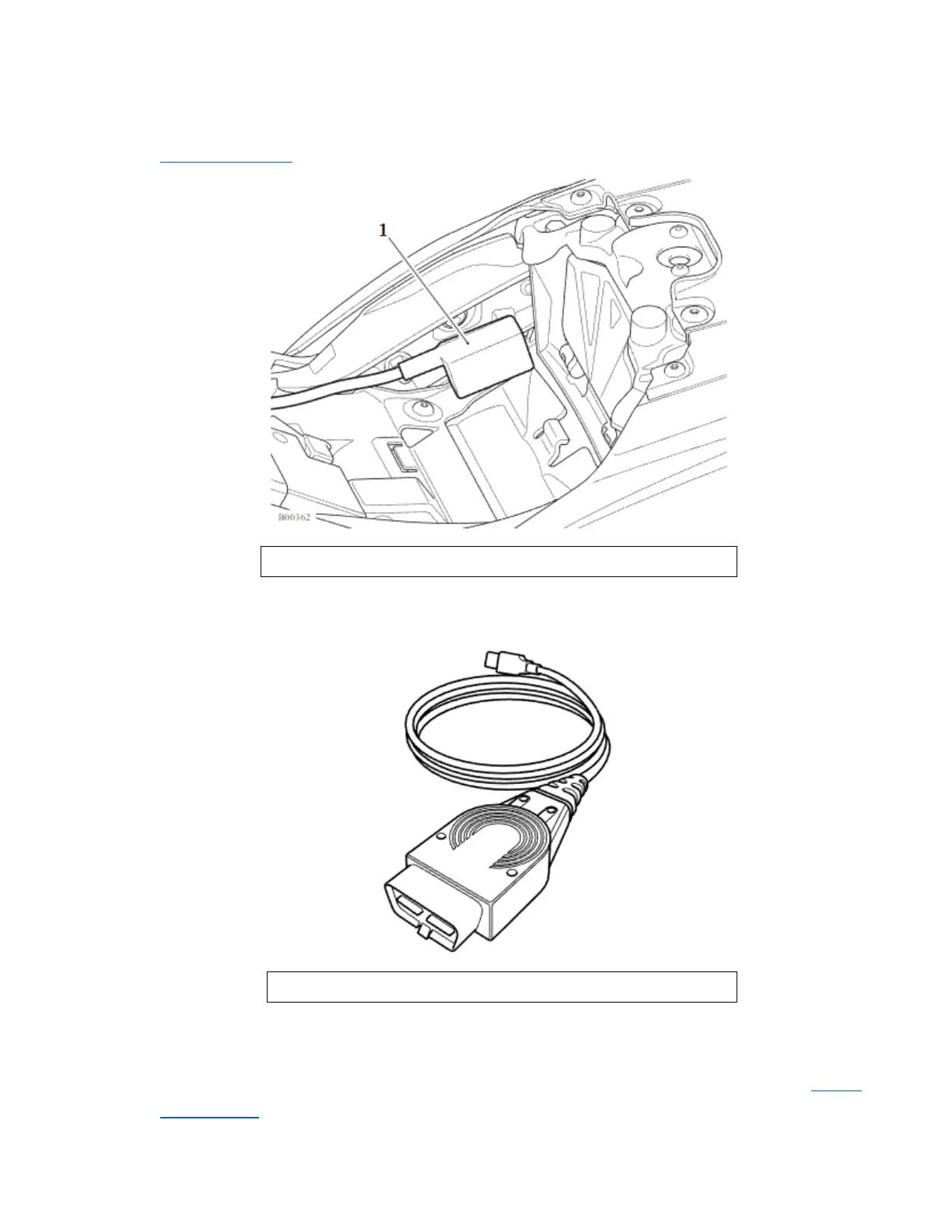

2. Diagnostic connector
2. Plug the Triumph diagnostic interface directly into the diagnostic connector.
T3880057 - Triumph Diagnostic Interface
3. When the diagnostic session is completed, disconnect the Triumph diagnostic
interface.
4. Refit the diagnostic connector to its locating tang and refit the rider's seat (see Seat -
Installation).
