3. Attach the purge valve to the throttle bodies as noted for removal.

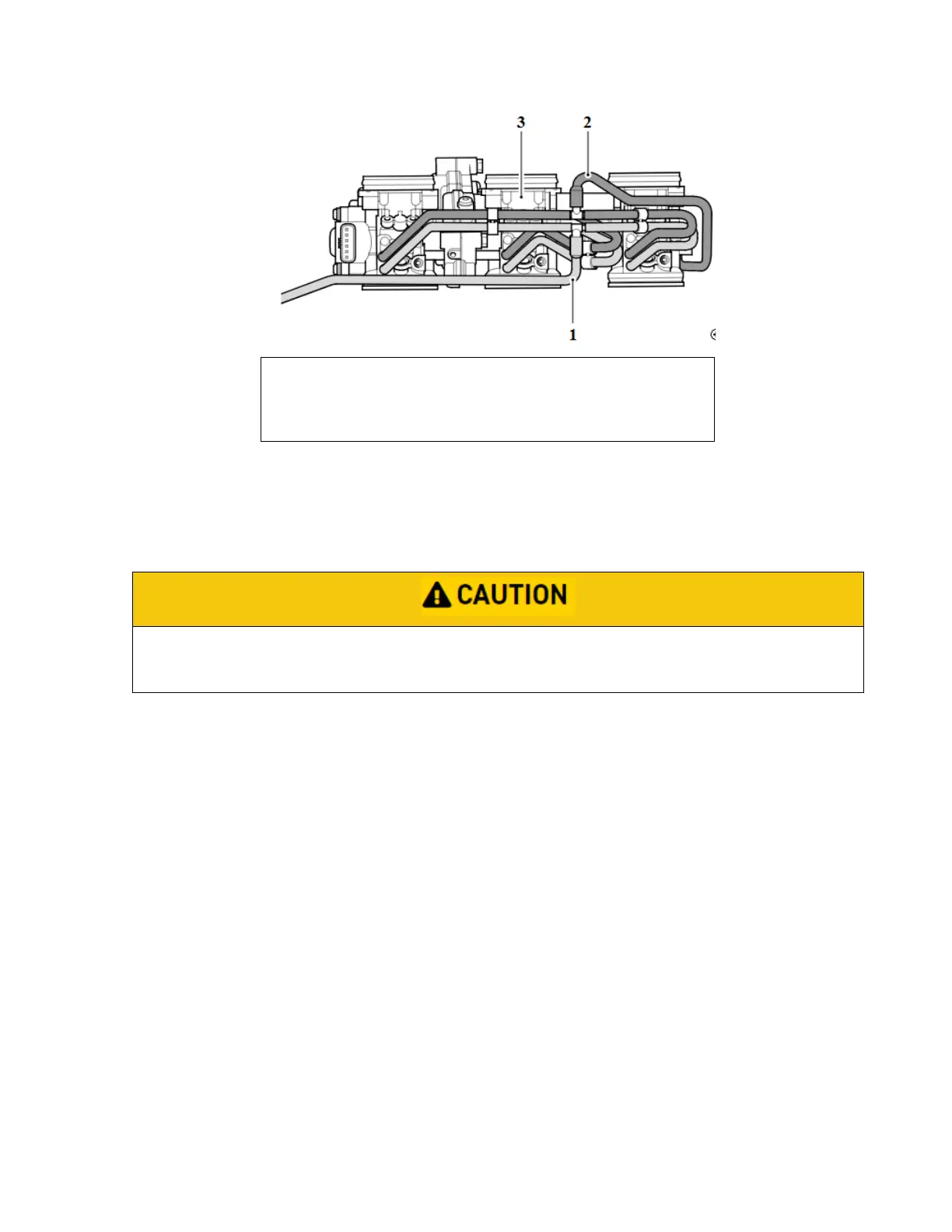

1. Purge valve hose (yellow)
2. MAP sensor hose (green)
3. Throttle body
4. Make sure the throttle bodies clamps are in the same orientation as noted for
removal on the transition piece.
To prevent damage to the manifold absolute pressure (MAP) sensor and purge valve
hoses, care must be taken when removing and fitting the throttle bodies.
5. With hoses routed as noted for removal, fit the throttle bodies and tighten the
clamps to 1.5 Nm. Check to make sure the manifold absolute pressure (MAP) sensor
and purge valve hoses are routed correctly and are not twisted or trapped between
the throttle bodies and the oil tank cover.
