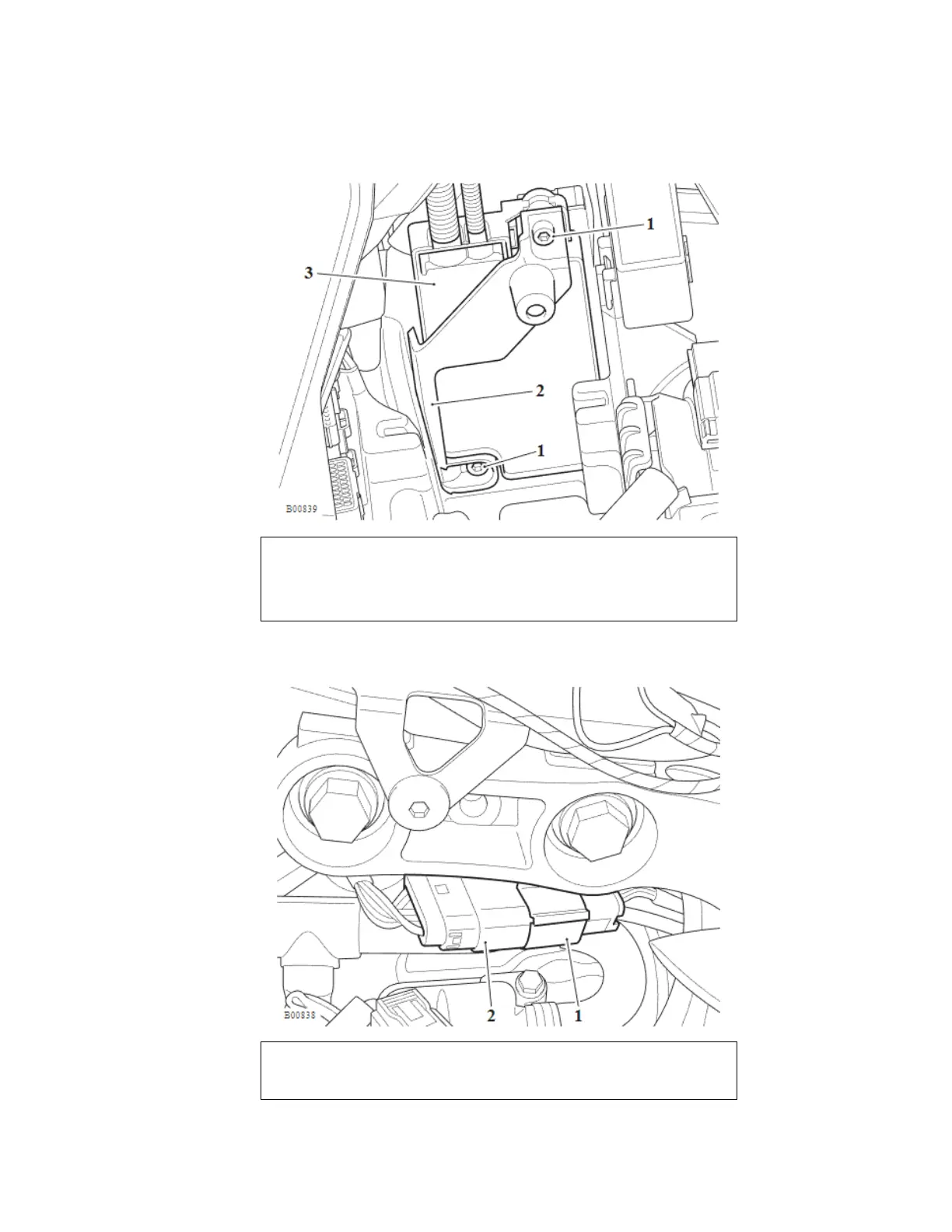

5. Release the fixings, remove the relay bracket and detach the keyless ECM from the
battery box. Manoeuvre the keyless ECM upwards to allow extra harness into the
engine area.
1. Fixings
2. Relay bracket
3. Keyless ECM
6. Detach the keyless ECM connector from its bracket and disconnect from the main
harness.
1. Connector (keyless ECM side)
2. Connector (main harness side)
7. Route keyless ECM harness into the battery box and remove the ECM.
