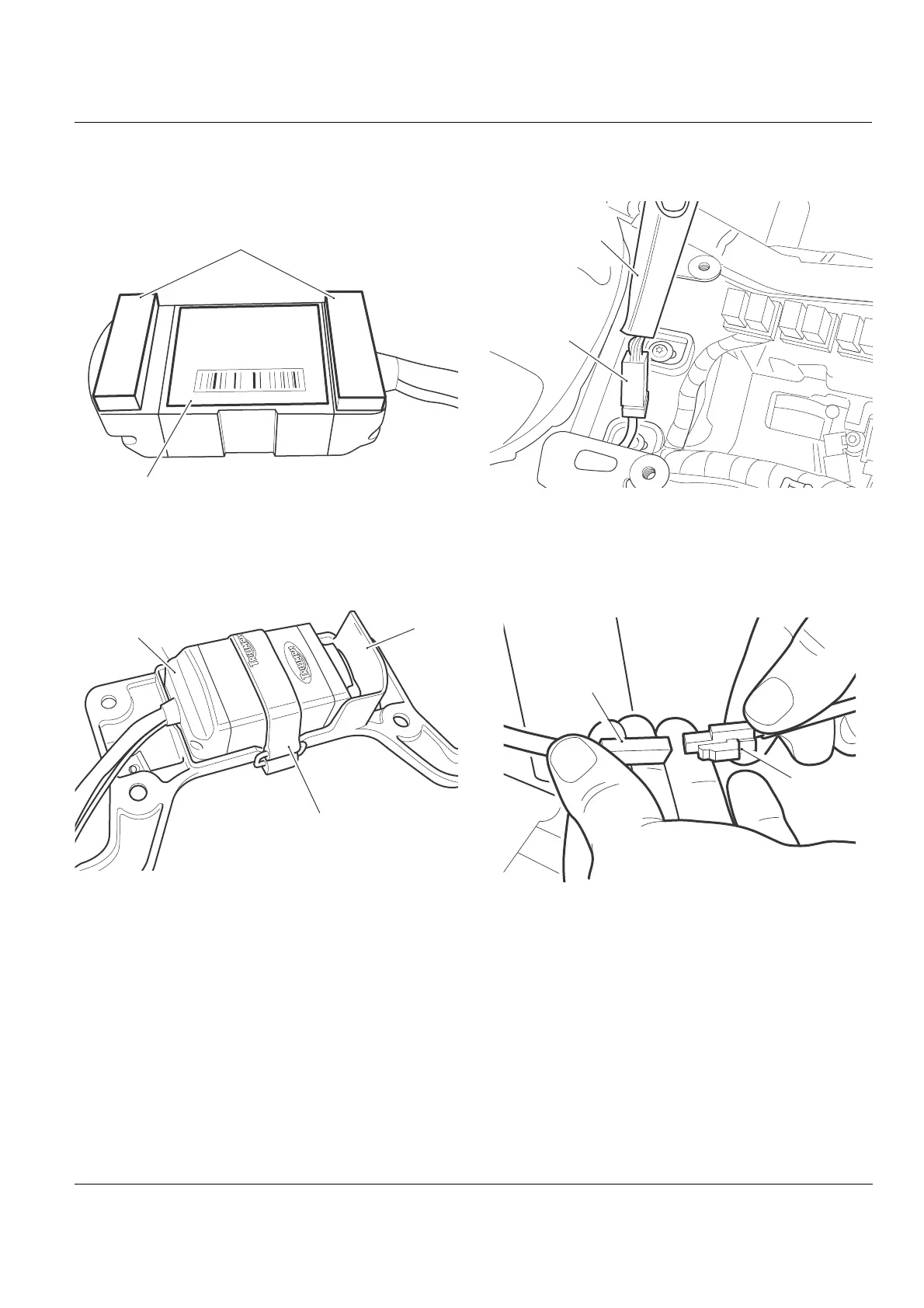

4. Locate the adhesive pads supplied in the kit, peel off
the backing strip and attach them to the lower surface
of the alarm unit as shown below.
1. Alarm unit
2. Adhesive pads
5. Fit the alarm unit to the seat bridge and secure with the
rubber strap from the kit as shown below.
1. Alarm unit
2. Seat bridge
3. Strap
6. Slide the heat shrink over the alarm/immobiliser
harness.
7. Connect the alarm/immobiliser wiring to the main
wiring harness connector.
1. Alarm/immobiliser connector
2. Heat shrink
8. Connect the reed-switch connector to the alarm/
immobiliser harness. Do not place the reed-switch
connector into the shrink tubing.
1. Reed-switch connector
2. Alarm/immobiliser connector
2
1
3
2
1
1
2
1
2
