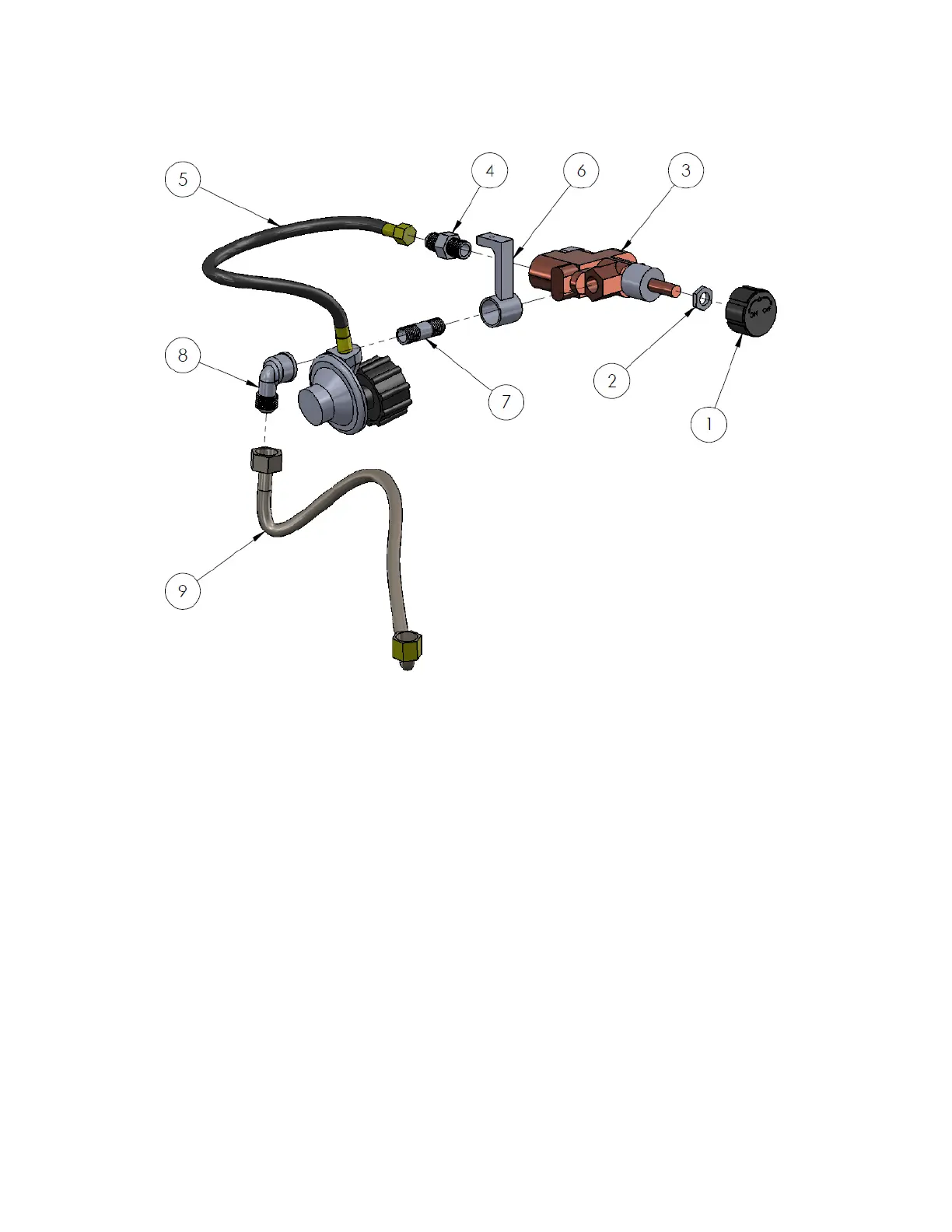

INTERNAL CONTROLS
(401600RD, 401600RCT, AND 401701RCT BASE)
PARTS LIST
Item No.
Description
Part No.
1
Knob, Black, for Gas Valve
R01MS102
2
Nut, Retaining, M1 for Gas Valve
R02NU501
3
Gas Valve
R18VL100
4
3/8” Flare x 3/8” MIPT
R18CO108
5
Gas Hose with Regulator, 3/8” x 12” Long
Gas Hose with Regulator, 3/8” x 36” Long
R18FH100
R18FH103
6
Gas Plumbing Support Weldment
WSL30RFPGVS
Gas Plumbing Support Weldment (not shown)
W401767FPSGV
7
Nipple, 3/8” x 1.5”
R15SP101
8
1/2” x 1/2" FIP 90
R15CO101
9
Gas Flex Line, 24” x 1/2"
R15SP100
