Maintenanc
e

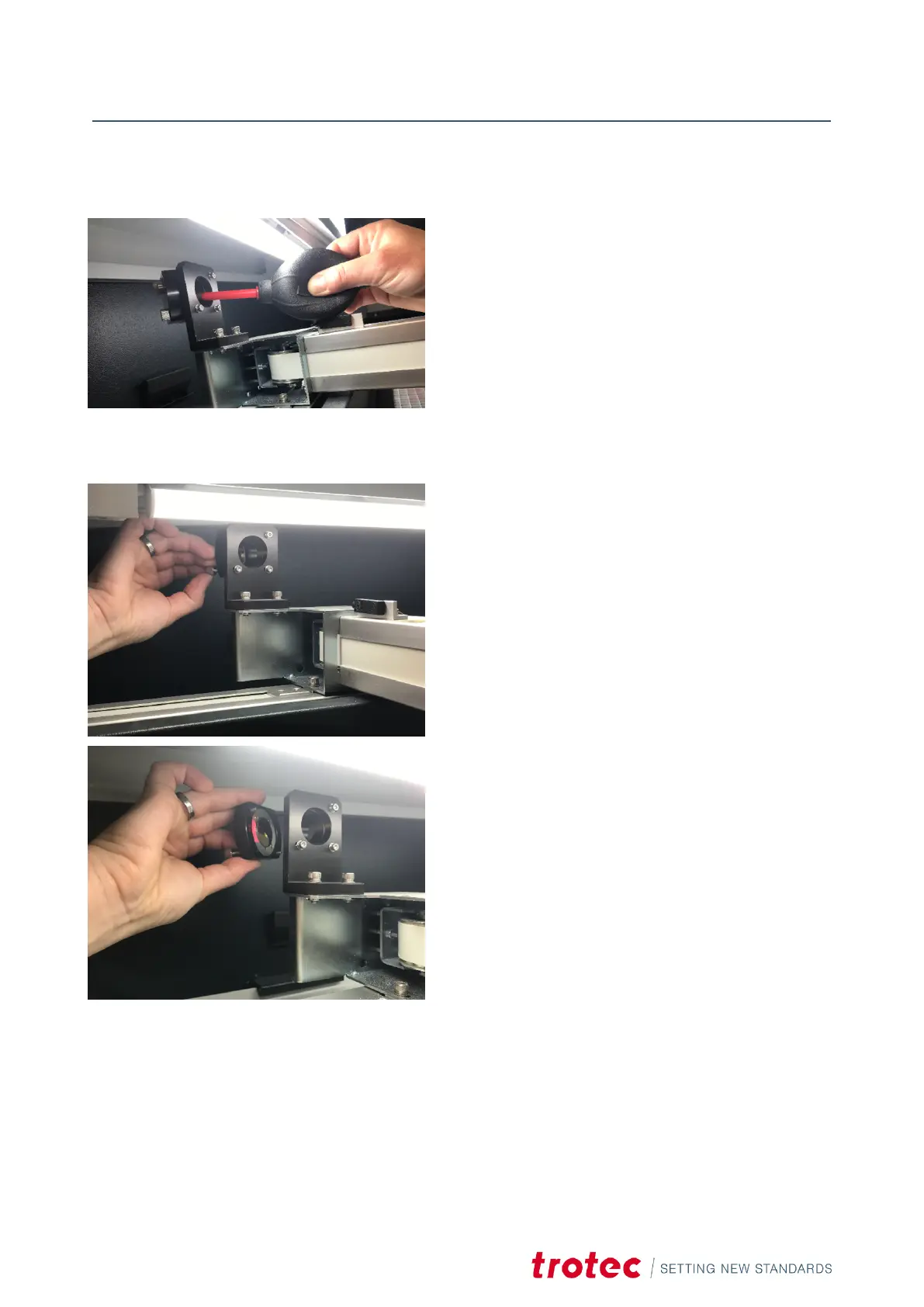

CLEANING MIRROR # ON THE AXIS
Quick cleaning with low dirt
Remove loose particles and dus
t with a bellows or
compr
essed air (according t
o ISO 8573:2010 Class 1)
Thorough cle
aning for heavy dirt
1.
Remove the screws from the mirr
or.
2.
Remove the mirror
.
Use a cleaning clo
th with cleaning fluid to clean the
mirror
.
62
61
63
Table of Contents
Table of Contents
5
General Information
8
Information about this Manual
8
Explanation of Symbols
9
Liability and Warranty
10
Scope of Delivery (Standard Configuration)
11
Type Plate
12
Safety
13
General Safety Notes
13
Intended Use
13
Improper Use
13
Residual Risk
14
Machine Modification
14
Operating Modes
14
Applicable Safety Regulations
14
Laser Safety
16
Laser Classification
16
Areas of Responsibility
17
Responsibilities of the Operator
17
Responsibilities of the Operating Personnel
17
Requirements for Operating an Service Personnel
18
Machine Identification (Warning and Safety Stickers)
18
Safety Devices
20
Technical Protective Measures
20
Main Switch
20
Key Switch
20
Emergency Stop Button
20
Interlock Safety Switches
21
Acrylic Top Lid
21
Side Cover
21
In Case of Safety Device Malfunction
21
Secondary (Indirect) Hazards
22
Fire Hazard
22
Gases, Fumes and Dust
22
Reflection through Materials
23
Hazards Due to Damaged Optics
24
Protective Measures for Damaged Optics
24
In Case of Emergency
25
Technical Data
26
Exhaust System Requirements
27
Materials
29
Machine Overview
32
General Overview
32
Laser Power Potentiometer
33
Tables
33
Cleaning Drawer
34
Lens(Es)
34
Nozzles
35
Transport
36
Safety Notes
36
Delivery State
36
Temperature and Humidity
37
Required Tools for Unloading and Transport
38
Place of Storage
38
Transport Inspection and Reporting of Defects
38
Unpacking the Machine
38
Transport Protection for the Axes
40
Relocation of the Machine
40
Setup and Installation
42
For Your Safety
42
Temperature and Humidity
42
Space Requirements
43
Connections
43
Mains Connection
44
Connection the PC
44
Connection of the Air Assist
44
Connect the Water Cooling System
45
Operation
47
Before Commissioning
47
Installation and Replacement of the Laser Source
48
SoWare
48
Power On/Off
48
Control Panel
50
Changing the Lens
53
Position of the Lens
54
Focusing
55
Options
57
Jobcontrol Vision
57
Maintenance
58
Safety Notes
58
Maintenance Schedule
58
Cleaning
59
Machine
59
Optics in General
60
Lens
60
Mirror
61
Motion System
63
Cleaning Drawer
64
Lubricating Motion System
64
Troubleshooting
68
Error, Cause and Remedy
68
How to Create a Service File
69
Contact Details
71
Disassembly
72
Disposal
73
Appendix
74
Ce 8057 Q500
78
Datasheet 8057_Q500_Rev3
79
