5 Rear bumper bar installation

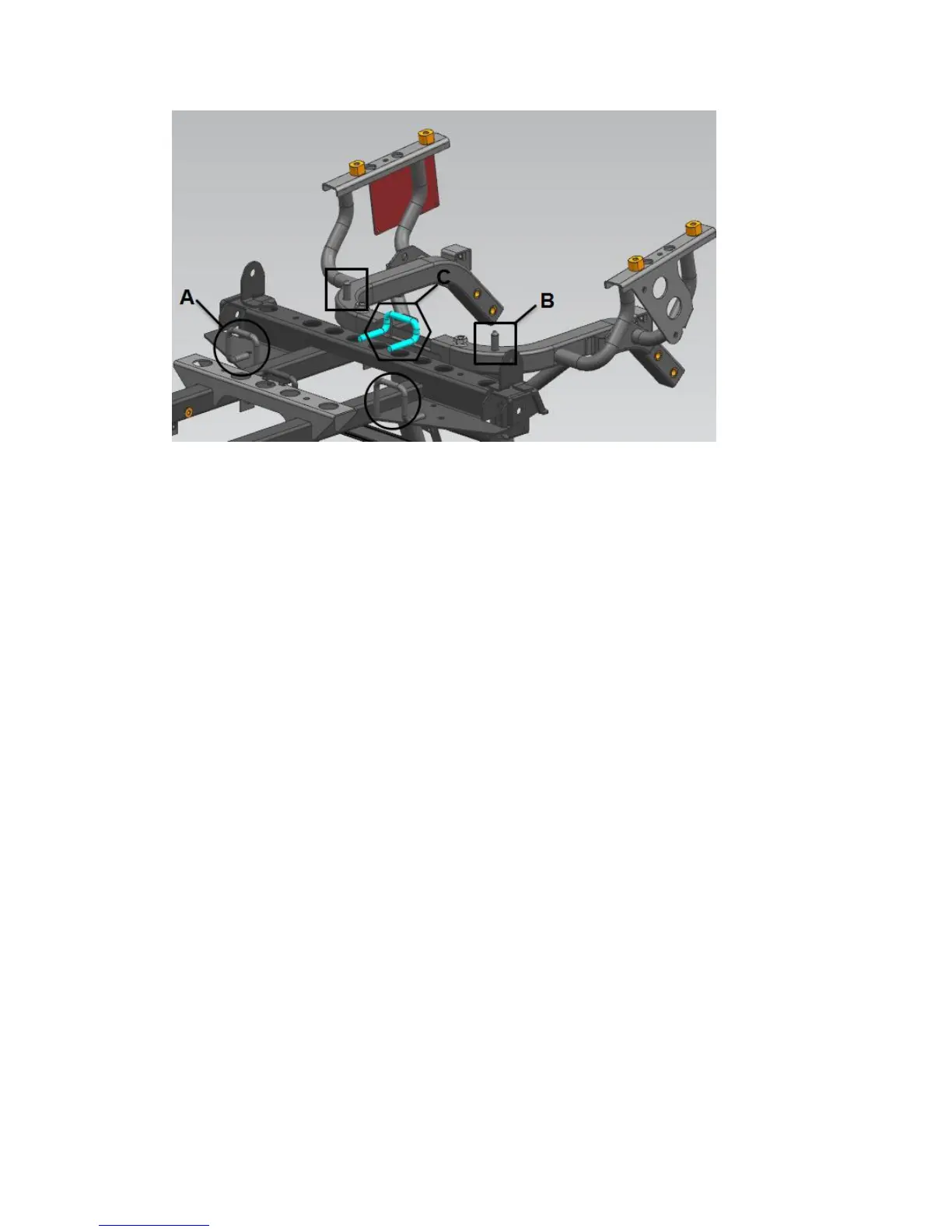

AS shown in the picture,align the two bottom hole of the rear
bumper with the second hole on the rear handrail,use 4 inner
hexagonal flat screw(3) and 4 hexagonal flange nut to do
pre-tighten, use hexagonal flat bolts M8×20 to fix in the upper
two hole(5),tighten the bottom nuts.
Enter part(2) into part(1),fit the hinge pin (4),fit
pin(5) ,fit part(3) ,fit hexagonal flat boltM8X16（6） and
tighten it.
