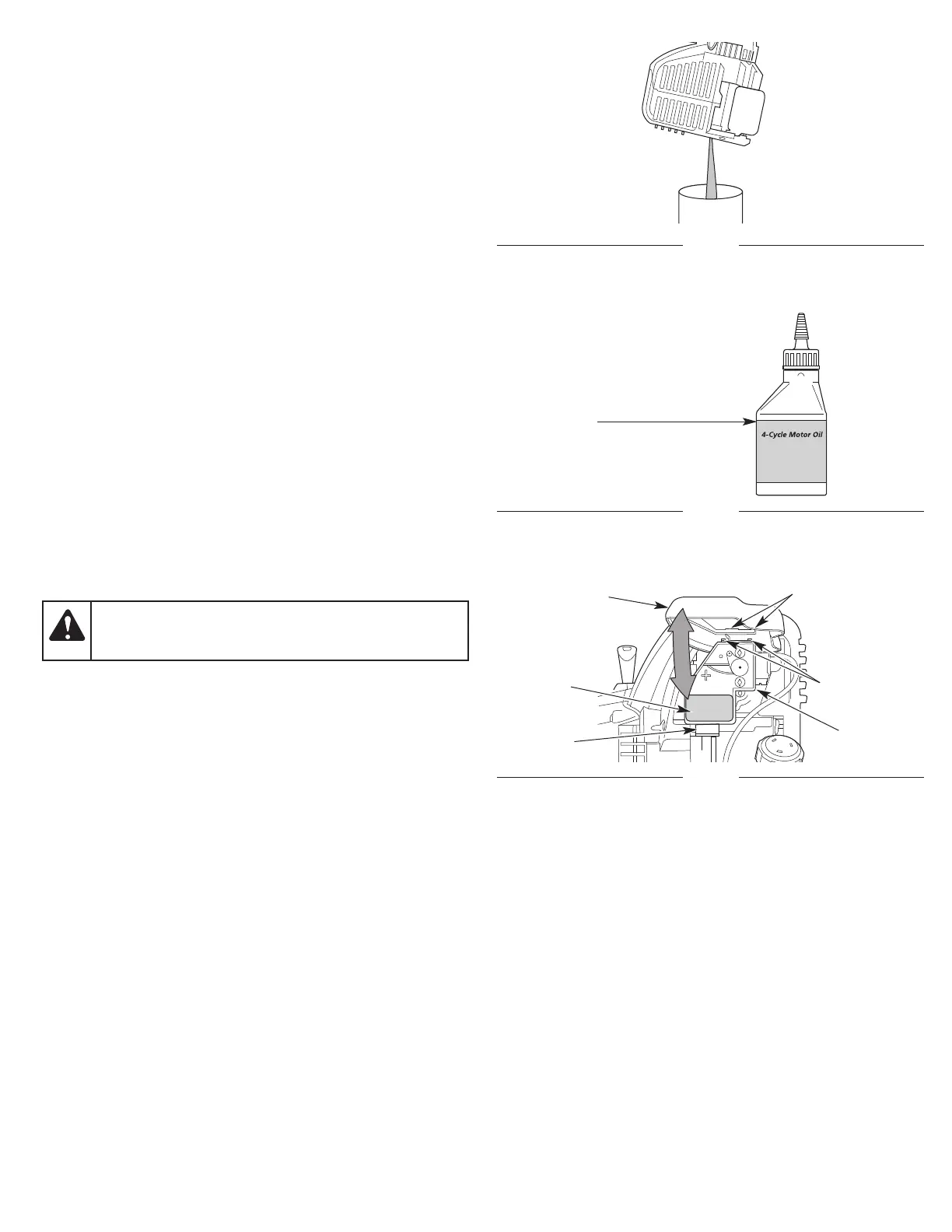

Fig. 24
CHANGING THE OIL
Change the oil while the engine is still warm. The oil will flow freely
and carry away more impurities.
1. Clean the area around the oil fill plug (Fig. 21) to prevent debris
from entering the oil fill hole.
2. Unscrew the oil fill plug.
3. Tip the unit vertically to pour the oil out of the oil fill hole and into
a container (Fig. 23). Allow ample time for complete drainage.
NOTE: Disp
ose of the old oil accord
ing to federal, state and local
regulations.
4. Wipe up any oil that may have spilled.
5. Pour 3.04 fl.oz. (90 ml) of SAE 30 oil into the oil fill hole.
NOTE: DO NOT overfill. Refer to Checking the Oil Level.
NOTE: Use the empty oil bottle saved from the initial use to
measure the correct amount of oil. Fill the oil bottle to the 3.04 fl.
oz (90 ml) fill line indicated on the back o
f the bottle (Fig. 24).
6
. Wipe up any oil that may have spilled.
7. Reinstall the oil fill plug.
NOTE: Make sure the O-ring is in place on the oil fill plug (Fig. 21).
MAINTAINING THE AIR FILTER
Failure to maintain the air filter can result in poor performance or can
cause permanent damage to the engine. Engine failure due to
improper air filter maintenance is not covered by the product warranty.
Cleaning the Air Filter
1
. Open the air filter cover: press in the lock tab and swing the air
filter cover up (Fig. 25).
2. Remove the air filter (Fig. 25).
3. Wash the air filter in detergent and water. Rinse the air filter
thoroughly and allow it to dry.
4. Lightly coat the air filter with clean SAE 30 oil.
5. Squeeze the air filter to spread and remove excess oil.
6. Reinstall the air filter (Fig. 25).
NOTE: Operating
the unit without the air filter and air filter cover w
ill
VOID the warranty.
7. Close the air filter cover: insert the tabs on the backplate into the
slots on the air filter cover. Swing the air filter cover down and
press it closed until the lock tab snaps into place (Fig. 25).
WARNING:
To avoid serious personal injury, always stop
the engine and allow it to cool before cleaning or maintaining
the unit.
Fig. 23
Fig. 25
Air Filter
Air Filter Cover
Lock Tab
Tabs
Slots
Backplate
Fill Line
