True SPL0200 - Page 36

36
ITEM PART DESCRIPTION QTY
1 SPL-02-MFR300X MAIN FRAME ASSEMBLY 1
2 SPL02PDKT SEATED LEG CURL PAD KIT 1
3 C 631A SHCS, 3/8”-16 X 3” BLK 2
4 C 749B LOCK WASHER, 3/8”, BLK ZP 10
5 C1257 LPSHCS, 3/8”-16 X 1-1/4” E-COAT 4
6 C 754B WASHER, FLAT, 3/8” SAE, BLK 4
7 C 629A SHCS, 3/8”-16 X 2-1/2”, BLK 4
8 SPL-02-PAR110 SLEEVE, PAD BOLT 4

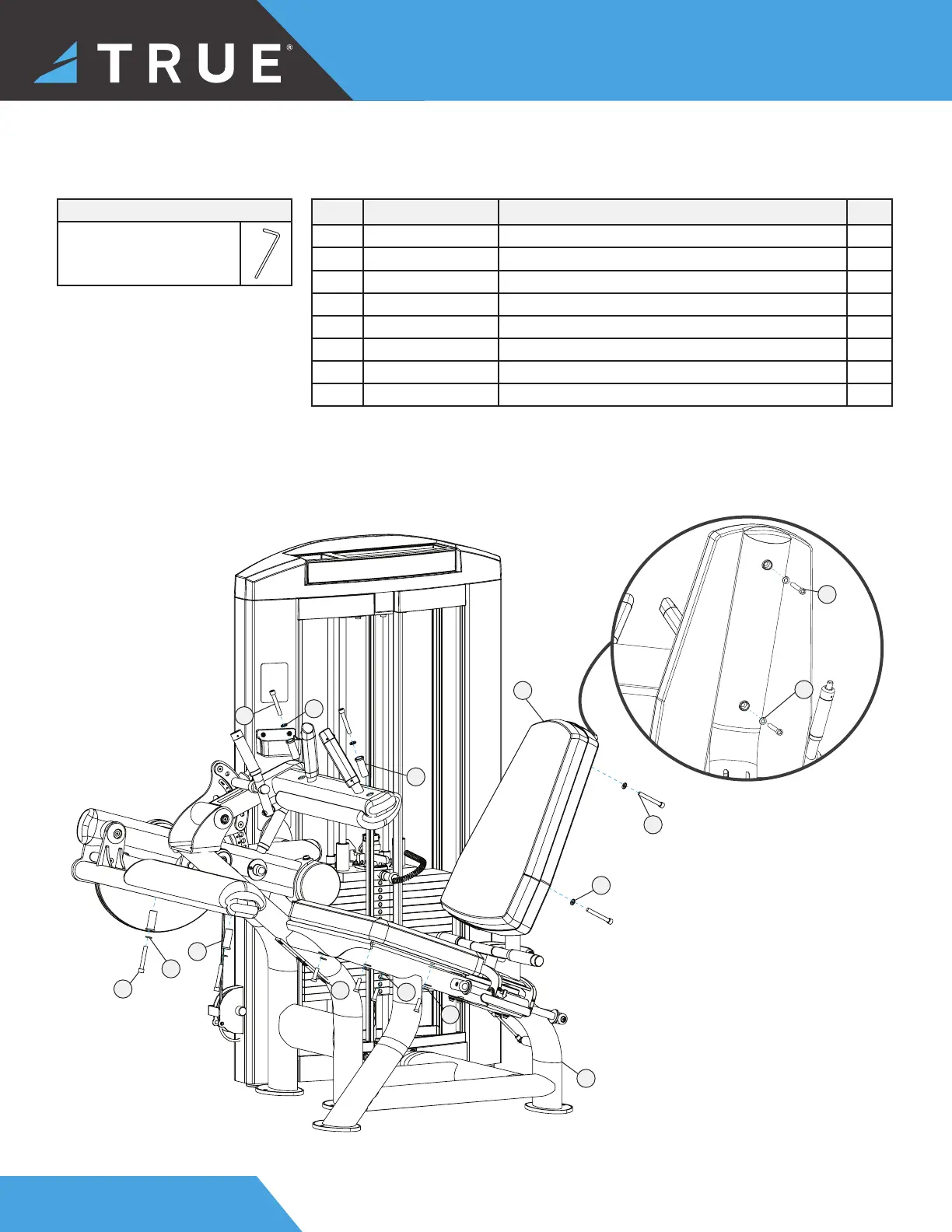

STEP 7—ATTACH PADS TO MAIN FRAME ASSEMBLY
a. Using an allen wrench, attach the back seat pad to the main frame assembly using 2 hex screws and 2 lock washers.
b. Using an allen wrench, attach the middle seat pad to the main frame assembly using 4 hex screws, 4 fl at washers,
and 4 lock washers.
c. Using an allen wrench, attach the front seat pads to the main frame assembly using 4 hex screws, 4 lock washers,
and 4 bolt sleeves.
TOOL NEEDED
Allen Wrench
1
2
4
3
5
4
7
8
4
3
4
6
7
4
8
