STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl. Fax# (001)636-272-7546 • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TM-52F TFEY21E TFEY41S TFEY41P TFEY413
TM-52F
DESIGN
True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
Factory engineered, self contained,
capillary tube system using
environmentally friendly (CFC free) R404A
refrigerant.
Extra large evaporator coil balanced
with higher horsepower compressor and
large condenser; maintains -10°F (-23.3°C)
cabinet temperature. Ideally suited for
both frozen foods and ice cream.
Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True reach-in’s a more
effi cient low velocity, high volume airfl ow
design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of foodservice
environments.
Top mounted condensing unit.
Automatic defrost system time-initiated,
temperature-terminated. Saves energy
consumption and provides shortest
possible defrost cycle.
CABINET CONSTRUCTION
Exterior - 300 series stainless steel doors
and front. Anodized quality aluminum
exterior ends and back.
Interior - attractive, NSF approved, white
aluminum liner. 300 series stainless fl oor
with coved corners.
Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail tted with 4" (102 mm)
diameter stem castors - locks provided on
front set.
DOORS
300 series stainless steel exterior with
white aluminum liners to match cabinet
interior. Doors extend full width of
cabinet shell. Door locks standard.
Lifetime guaranteed recessed door
handles. Each door fi tted with 12"
(305 mm) long recessed handle that
is foamed-in-place with a sheet
metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
Six (6) adjustable, heavy duty PVC coated
wire shelves 24
9
/16"L x 22
3
/8"D (624 mm
x 569 mm). Four (4) chrome plated shelf
clips included per shelf.
Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on
1
/2" (13 mm) increments.
LIGHTING
Incandescent interior lighting - safety
shielded lights activated by rocker switch
mounted above doors.
MODEL FEATURES
Exterior temperature display.
Evaporator is epoxy coated to eliminate
the potential of corrosion.
NSF-7 complaint for open food product.
ELECTRICAL
Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
- 20 amp dedicated outlet. Cord and plug
set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
230-240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/fl anged legs.
Alternate door hinging (factory installed).
Novelty baskets.
Additional shelves.
Half door bun tray racks. Each holds up
to eleven 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately)
(airfl ow guards need to be removed).
Full door bun tray racks. Each holds up to
twenty-two 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately)
(airfl ow guards need to be removed).
Remote cabinets (condensing unit
supplied by others; system comes standard
with 404A expansion valve and requires
R404A refrigerant). Consult factory
technical service department for BTU
information.
TM Series:
Reach-In Top Mount Solid Door Freezer

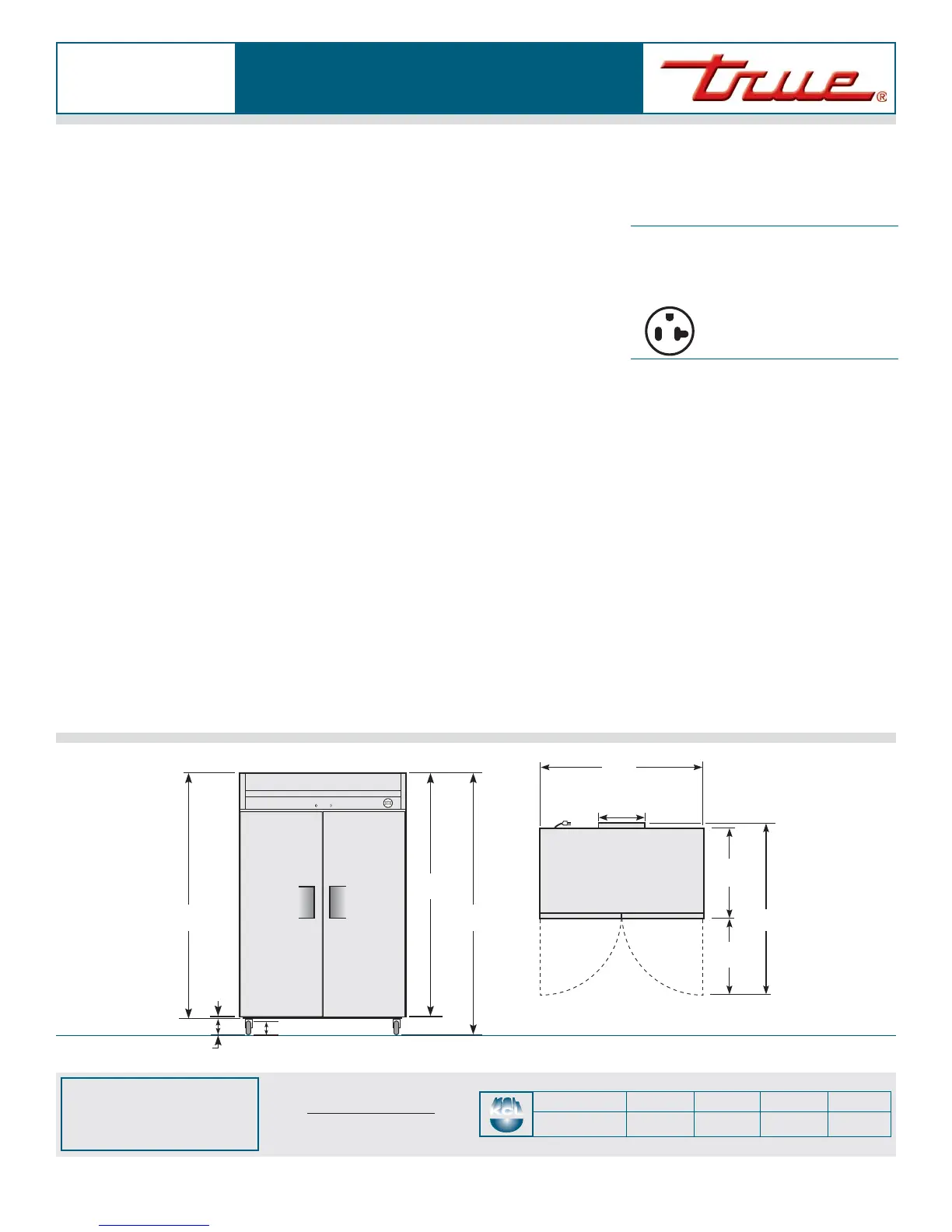

ELEVATION
PLAN VIEW
54
1
/8
"
(1375 mm)
25
17
/32
"
(649 mm)
57
11
/32
"
(1457 mm)
29
1
/2
"
(750 mm)
1
3
/16"
(31 mm)
5"
(127 mm)
77"
(1956 mm)
83
3
/16"
(2113 mm)
19
1
/16
"
(485 mm)
115/60/1
NEMA-5-20R
78
3
/16"
(1986 mm)
4"
(102 mm)
