STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
Model Elevation Right Plan 3D
PLAN VIEW
KCL
TS-72F TFEY01E TFEY01S TFEY01P TFEY013
TS-72F
DESIGN
True’s solid door reach-in’s are designed
with enduring quality that protects your
long term investment.
True’s commitment to using the
highest quality materials and oversized
refrigeration systems provides the user
with colder product temperatures, lower
utility costs, exceptional food safety and
the best value in today’s food service
marketplace.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free) R404A
refrigerant.
Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains -10°F (-23.3°C). Ideal
for both frozen foods and ice cream.
Sealed, cast iron, self-lubricating
evaporator fan motors and larger fan
blades give True reach-in’s a more
effi cient, low velocity, high volume airfl ow
design. This unique design ensures
faster temperature recovery and shorter
run times in the busiest of food service
environments.
Bottom mounted condensing unit
positioned for easy maintenance.
Compressor runs in coolest and most
grease free area of the kitchen. Allows for
storage area on top of unit.
Automatic defrost system time-intiated,
temperature terminated. Saves energy
consumption and provides shortest
possible defrost cycle.
CABINET CONSTRUCTION
Exterior - 300 series stainless steel doors,
front and sides. Matching aluminum back.
Interior - 300 series stainless steel liner
and fl oor.
Insulation - entire cabinet structure and
solid doors are foamed-in-place using high
density, CFC free, polyurethane insulation.
Welded, heavy duty galvanized frame rail
dipped in rust inhibiting enamel paint for
corrosion protection inside and out.
• Frame rail tted with 4" (102 mm)
diameter stem castors - locks provided on
front set.
DOORS
300 series stainless steel exterior and
liners. Doors extend full width of cabinet
shell. Door locks standard.
Lifetime guaranteed recessed door
handles. Each door fi tted with 12"
(305 mm) long recessed handle that
is foamed in-place with a sheet
metal interlock to ensure permanent
attachment.
Positive seal self-closing doors. Lifetime
guaranteed door hinges and torsion type
closure system.
Magnetic door gaskets of one piece
construction, removable without tools for
ease of cleaning.
SHELVING
Nine (9) adjustable, heavy duty PVC coated
wire shelves 24
1
/8"L x 22
3
/8"D (613 mm
x 591 mm). Four (4) chrome plated shelf
clips included per shelf.
Aluminum shelf support pilasters. Shelves
are adjustable on
1
/2" (13 mm) increments.
LIGHTING
Incandescent interior lighting - safety
shielded lights activated by rocker switch
mounted above doors.
MODEL FEATURES
Evaporator is epoxy coated to eliminate
the potential of corrosion.
Exterior mounted temperature monitor.
• Rear airfl ow guards prevent product from
blocking optimal airfl ow.
NSF-7 compliant for open food product.
ELECTRICAL
Unit completely pre-wired at factory and
ready for fi nal connection to a 115/208-
230/60Hz, single phase, 3 pole, 4 wire - 20
amp dedicated outlet. Cord and plug set
included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
230-240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/fl anged legs.
Alternate door hinging (factory installed).
Additional shelves.
Half door bun tray racks. Each holds up to
eleven 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately)
(airfl ow guards need to be removed).
Full door bun tray racks. Each holds up to
twenty-two 18"L x 26"D (458 mm x
661 mm) sheet pans (sold separately)
(airfl ow guards need to be removed).
Remote cabinets (condensing unit
supplied by others; system comes standard
with 404A expansion valve and requires
R404A refrigerant). Consult factory
technical service department for BTU
information.

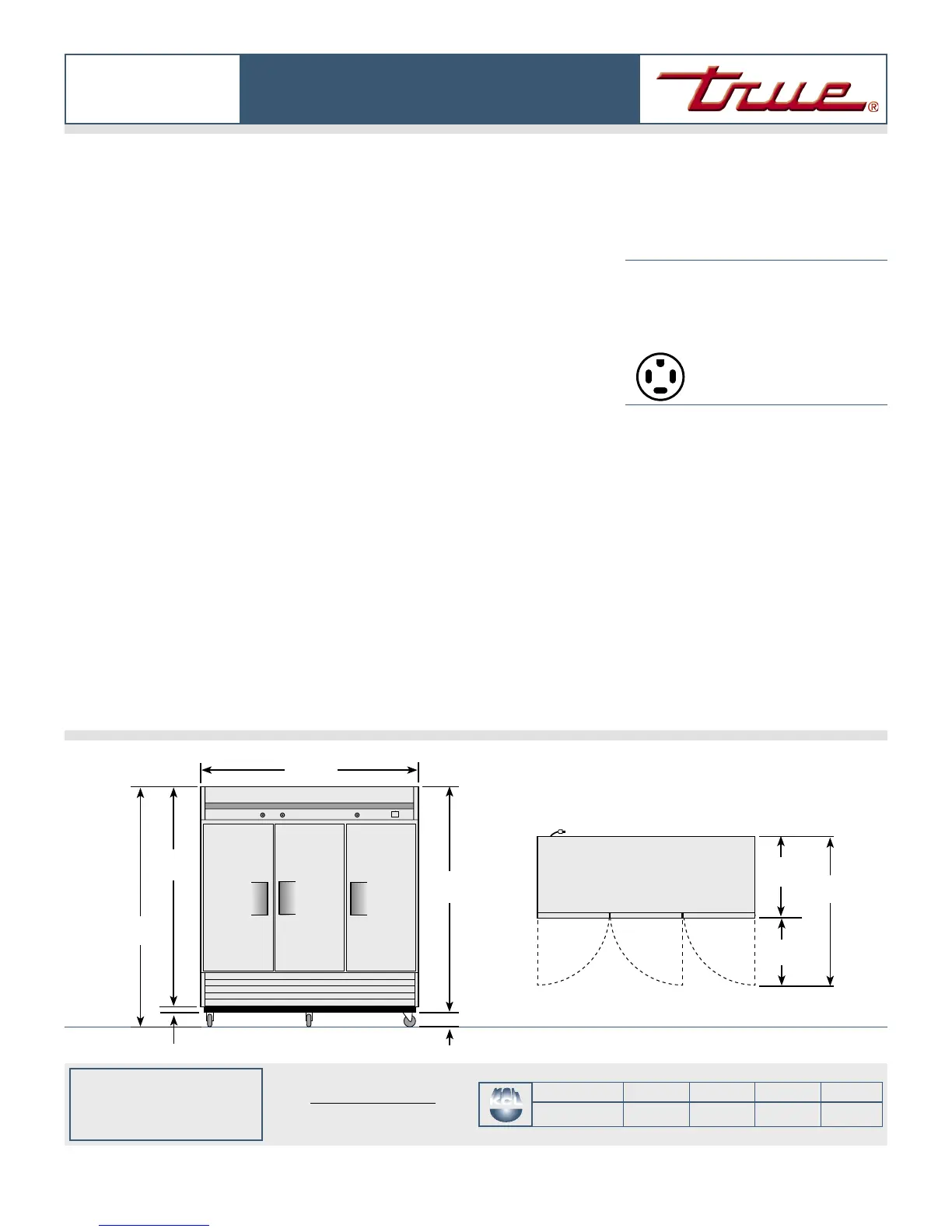

ELEVATION
PLAN VIEW
115/208-230/1
NEMA-14-20R
TS Series:
Reach-In 300 Series Stainless Steel
Solid Door Freezer
76
15
/16
"
(1955 mm)
84
1
/16
"
(2136 mm)
78
1
/8
"
(1985 mm)
2
1
/8
"
(54 mm)
24
15
/32
"
(622 mm)
53
31
/32
"
(1371 mm)
79
1
/16
"
(2009 mm)
5
"
(127 mm)
29
1
/2
"
(750 mm)
