TSA Hard Series - Technical data; Datasheet

3
MANUAL DEL USUARIO / USER’S MANUAL
HARD series: AX-110LA / AX-110LE
TSA. Subject to change without notice.

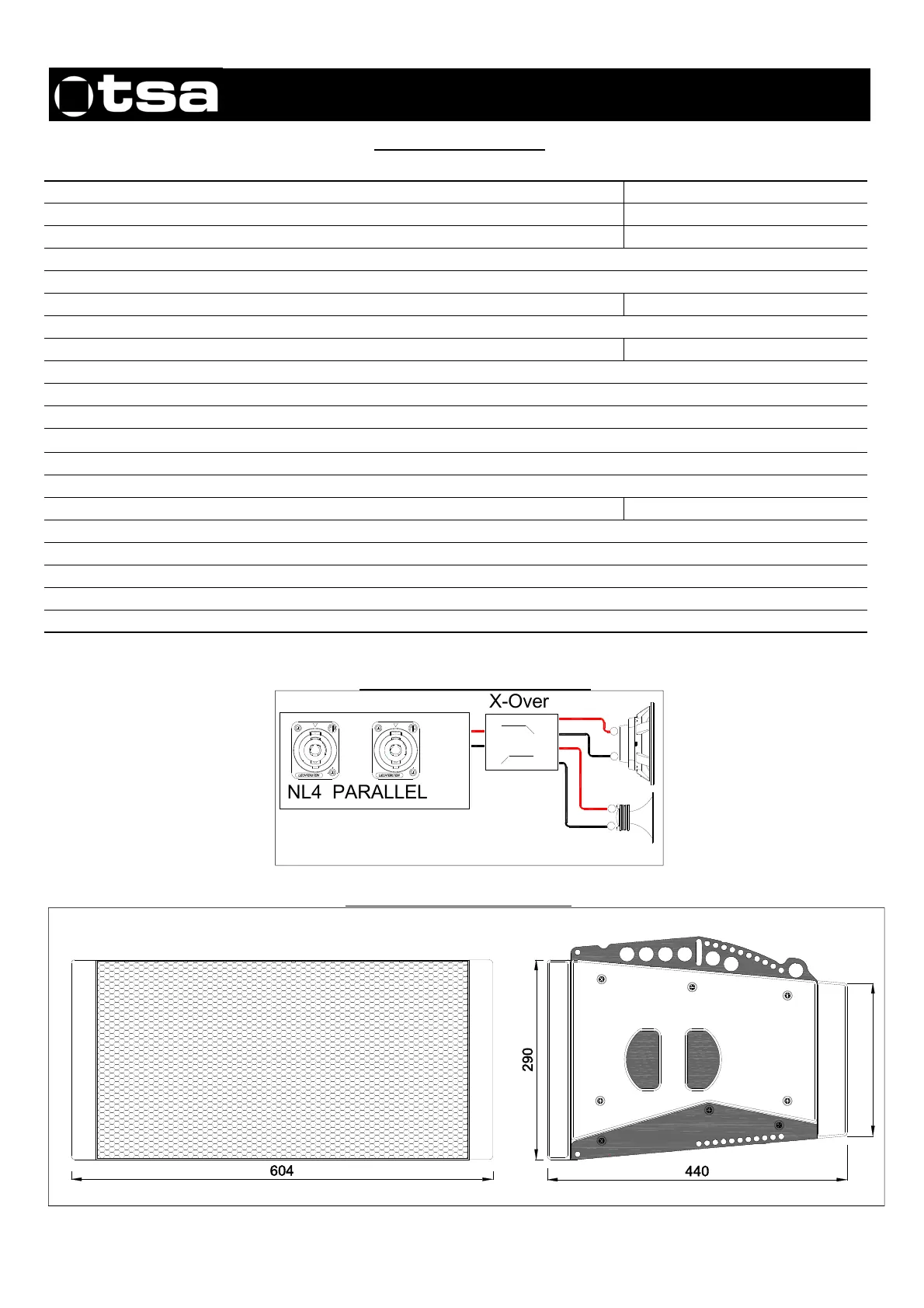

Ficha Técnica / Datasheet
Dimensions AX-110LA / AX-110LE
+
-
+
-
N L 4 P A R A L L E L
Pin +1
Pin - 1
Pin +2
Pin - 2
X - O v e r
HF
LF
IN
Connections AX-110LA / AX-110LE
Technical data AX-110LA AX-110LE
Usable bandwidth (-10dB) 55 - 19.000Hz 55 - 20.000Hz
Maximum SPL (*) 135 dB (preset) 134 dB (preset)
Horizontal coverage angle: 90° (-6 dB points) 100° (-6 dB points)
Vertical coverage angle: Depends of the number of elements and array curvature
Transducers LF: 1 x 10’’ LF woofer
Transducers HF: 2 x 1,75’’ Compression driver 3 x 1’’ HF unit
Nominal impedance: 8 Ω
Power handling (W AES): 500 500
Connectors: 2 x NL4
Rigging components:
4-point rigging system
Permissible flown load: 22 units
Inter-enclosure angles (degrees): 0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
Physical data
W x H/h x D: 604 x 290/222 x 440 mm
Weight (net): 20 kg. 17 kg.
Cabinet: First grade Baltic birch plywood
Side panels: Steel rigging hardware
Finish: High resistance rough black paint
Grill: Steel grid with anti-corrosion coating and foam
Rigging components: High grade steel with anti-corrosion coating
(*) Peak level at 1 m under free field conditions using 10 dB crest factor pink noise with specified preset.
Front.
Side.
2
9
0
6 0 4
4 4 0
222
