3
MANUAL DEL USUARIO / USER’S MANUAL
Z series: Z-24
TSA. Subject to change without notice.

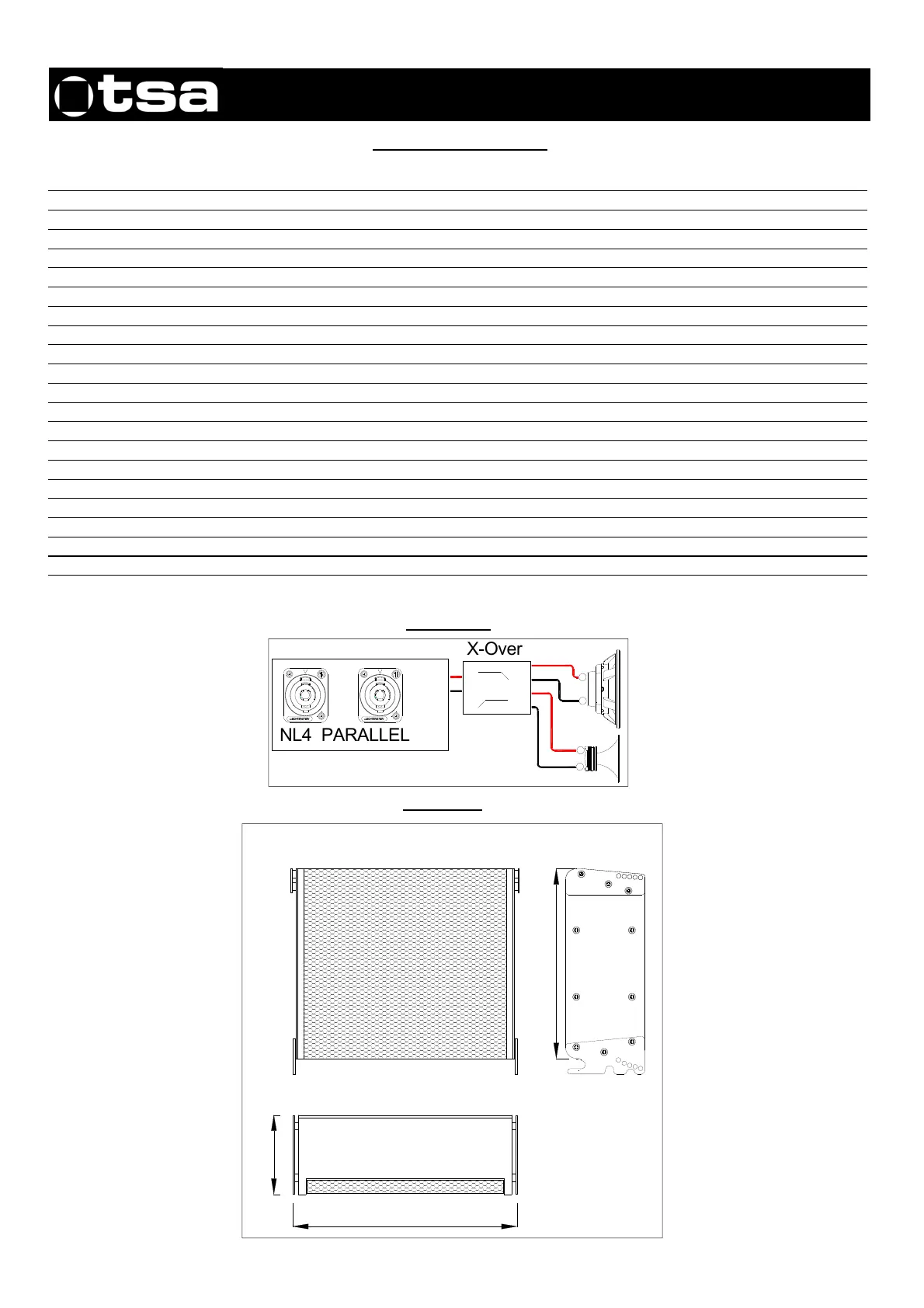

Ficha Técnica / Data sheet
Connections
+
-
+
-
N
L
4
P
A
R
A
L
L
E
L
Pin +1
Pin - 1
Pin +2
Pin - 2
X
-
O
v
e
r
HF
LF
IN
Dimensions
15 cm.
43,9 cm.
36,4 cm.
Front.
Lateral.
Zenithal.
Technical data Z-24
Usable bandwidth (-10dB) 80 - 20.000Hz
Maximum SPL (*) 132 dB (preset)
Coverage angle (-6 dB). Horizontal: 90°
Vertical Coverage: Depends of the array elements and curvature
Transducers LF: 2 x 6,5’’ LF woofer
Transducers HF: 4 x 1’’ HF unit
Nominal impedance: 4/16 Ω
AES power handling: 400 W
Connectors: 2 x NL4
Rigging components: 4-point rigging system
Permissible flight load: 12 units
Inter-enclosure angles (degrees): 0 / 0.25 / 2.5 / 5 / 10
Physical data
W x H x D: 440 x 364 x 150 mm.
Weight (net): 14 kg.
Cabinet: First grade Baltic birch plywood
Side panels: Steel rigging hardware
Finish: High resistance rough black paint
Front Steel grill: Steel grid with anti-corrosion coating and foam
Rigging components: High grade steel with anti-corrosion coating
(*) Peak level at 1 m under free field conditions using 10 dB crest factor pink noise with specified preset.
