12
12
3. MECHANISM

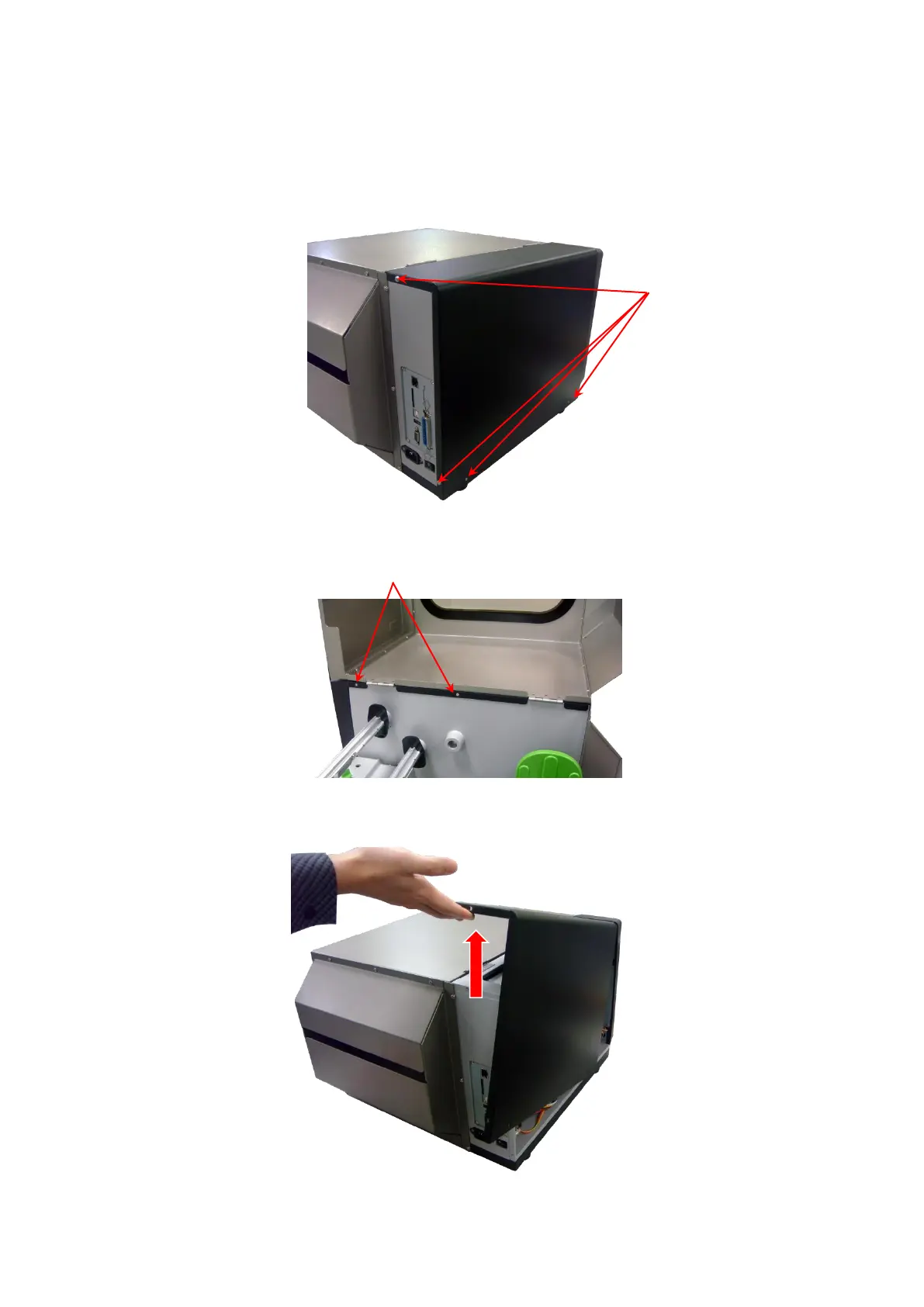

3.1 Remove Covers
1. Remove 4 screws from printer.
2. Open printer right side cover and remove 2 screws then close the cover.
3. Remove the electronics cover.
Screws
Screws
Electronics
cover
