TUYA WT-SPI - Wiring and Remote Control Configuration; Wiring Diagrams for Different Connections; R9 Remote Control Matching Procedure; R9 Remote Control Configuration Options

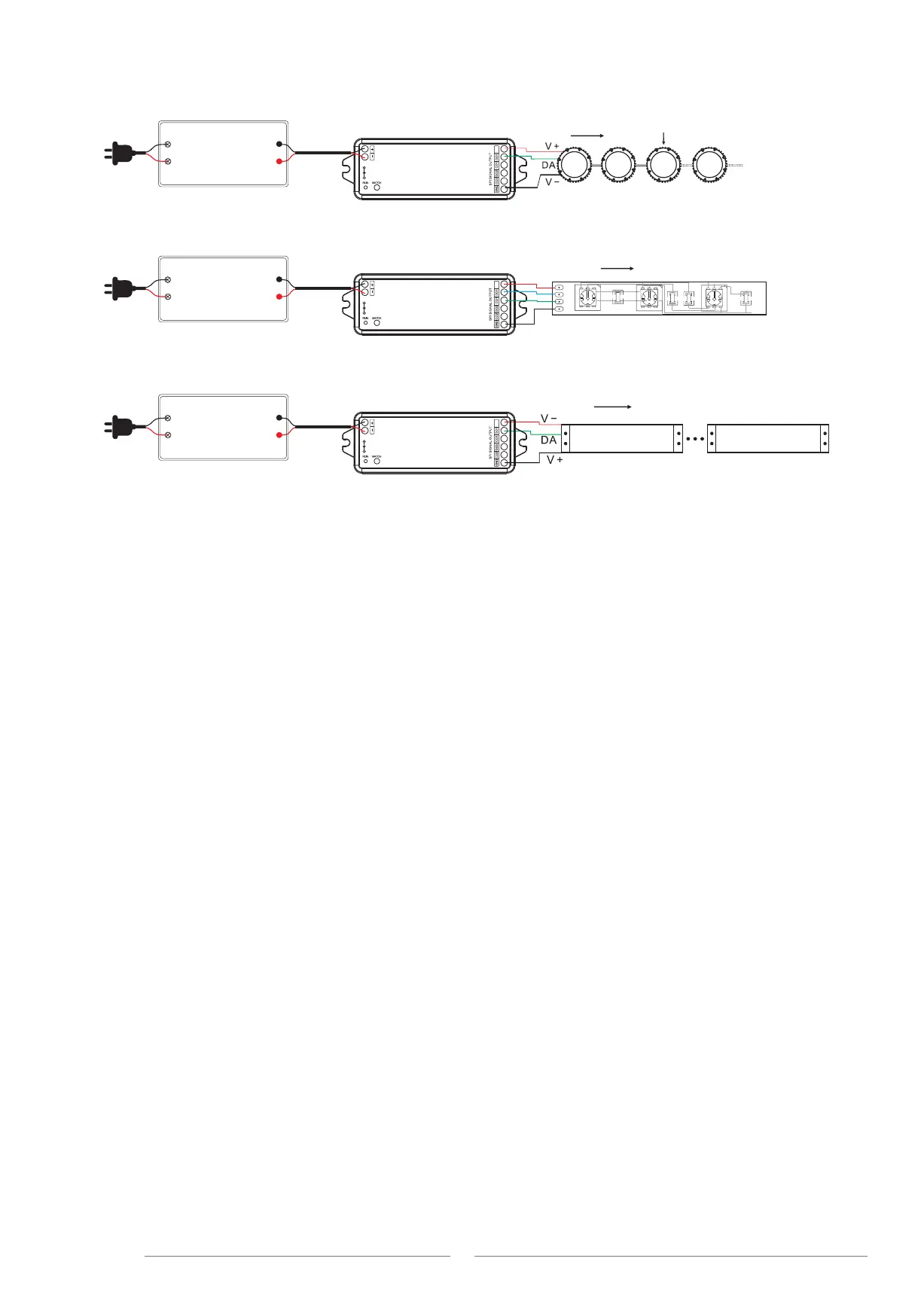

● WiFi-SPI connect with SPI digital light tube (TM1809)
SPIDigital Light Tube
SPI Signal
INPUT
5-24VDC
V+
AC100-240V
Power Supply
5-24VDC
Constant Voltage
SPIDigital Light Tube
2
User Manual Ver 1.0.0
● WT-SPI connect with SPI spotlights (TM1803)
Wiring Diagram
INPUT
5-24VDC
V+
● WT-SPI connect with SPI pixel strips (LPD6803)
SPI Signal
AC100-240V
Power Supply
5-24VDC
Constant Voltage
SPI Spotlights
INPUT
5-24VDC
V+
AC100-240V
Power Supply
5-24VDC
Constant Voltage
V
+
V-
DA
CK
LED Pixel Strip
SPI Signal
Note:
If the SPI LED strip is a single-wire control method, the DATA and CLK signal line outputs of the controller are same, and one controller can connect 4 LED strips.
Match R9 remote control
Match:Short press on thematch key, immediately press on/off key of the remote. The LED indicator fast flash a few times means match is successful.
Delete: Press and hold match key for 10s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Set the length, chip type and RGB order of the SPI LED strip using R9 remote control
●Set the LED strip length[number of pixels(10~1000)]:* + 3 digits +* Example:
*032*,set the number of pixels 32.
*600*,set the number of pixels 600.
*1000*,set the number of pixels 1000.
●Set the LED strip chip type:* +2 digits +*
 *11*：TM1803
*12*：TM1809, TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815
*13*：TM1829
*14*：TLS3001, TLS3002
*15*：GW6205
*16*：MBI6120
*17*：TM1814B(RGBW)
*18*：SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
*19*：UCS8904B(RGBW)
*21*：LPD6803, LPD1101, D705, UCS6909, UCS6912
*22*：LPD8803, LPD8806
*23*：WS2801, WS2803
*24*：P9813
*25*：SK9822
*31*：TM1914A
*32*：GS8206,GS8208
*33*： UCS2904
*34*： SM16804
*35*： SM16825
*36*： SM16714(RGBW)
*37*： UCS5603
*38*： UCS2603
●Set LED strip RGB order：* +1 digit+*
*1*：RGB,*2*：RBG,*3*：GRB,*4*：GBR,*5*：BRG,*6*：BGR.
