F4000 LCD Operator's Manual Document No: LT0117
Operating Instructions - Point Functions
Page 8-8 19 April 2002 Issue 2.38
8.1.6 OPERATING SEQUENCE - SPECIFIC POINT DETECTOR DIRTY LEVEL

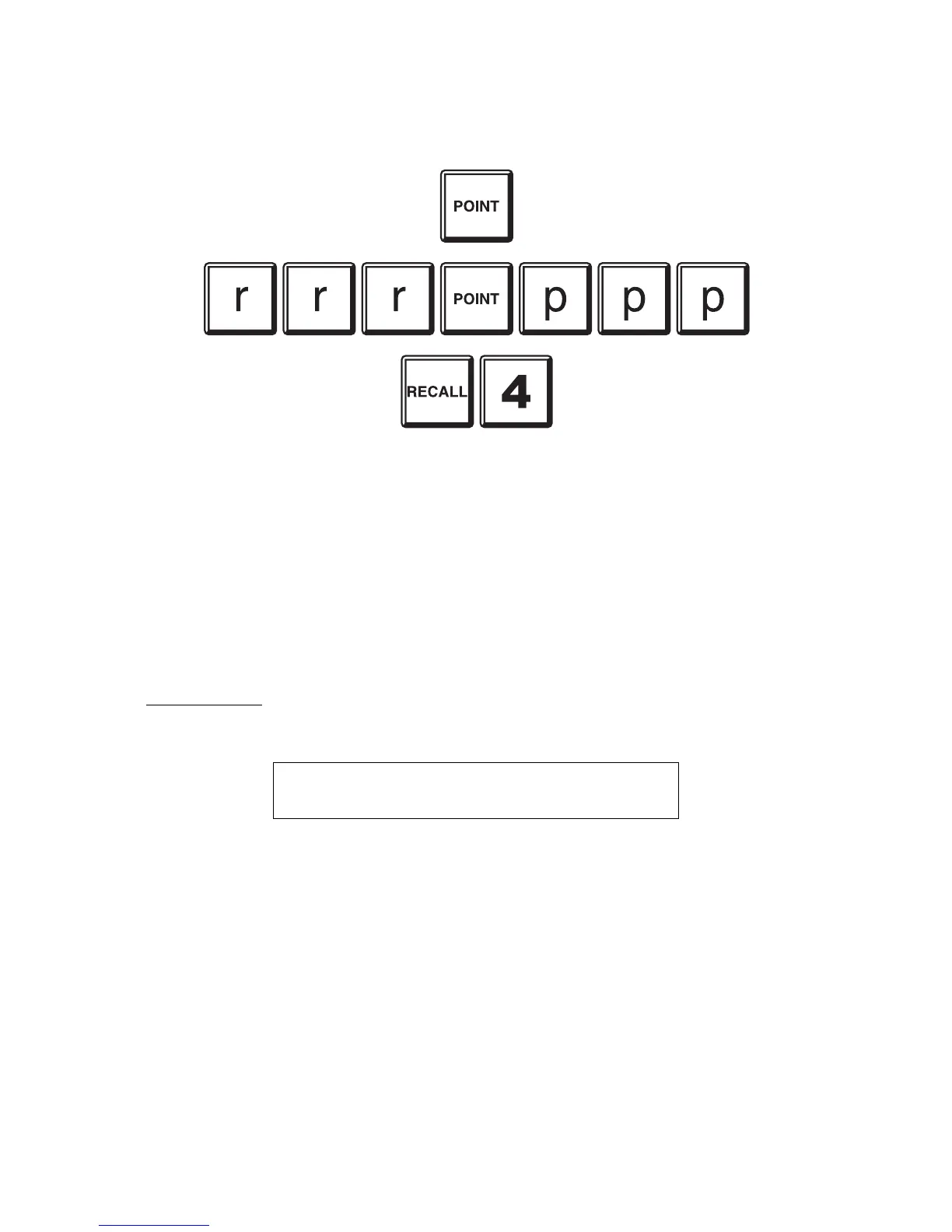

To recall a specific point's % Dirty level press:
where rrr is the responder number
ppp is the analogue point number
The FIP will access its internal database for the required information for the point and display
the % Dirty level.
The LCD briefly shows an asterisk, "*", in the top right of the display whenever data for the %
Dirty display is updated.
% Dirty information is displayed only for MPR smoke detector points. For all other points
there is no % Dirty level, thus the F4000 displays “No Recall Information Available”.
Display Formats
The display for point detector dirty levels is:
%D: m% TV:n CM:p UT:q AS:r
Where m = Detector's current % Dirty level
n = Detector’s Tracked Value
p = Detector's Maximum Clean Air Level
q = Detector's Upper Tracking Limit
r = Detector’s Alarm Sensitivity
