TYM T303 - Page 85

►
►►

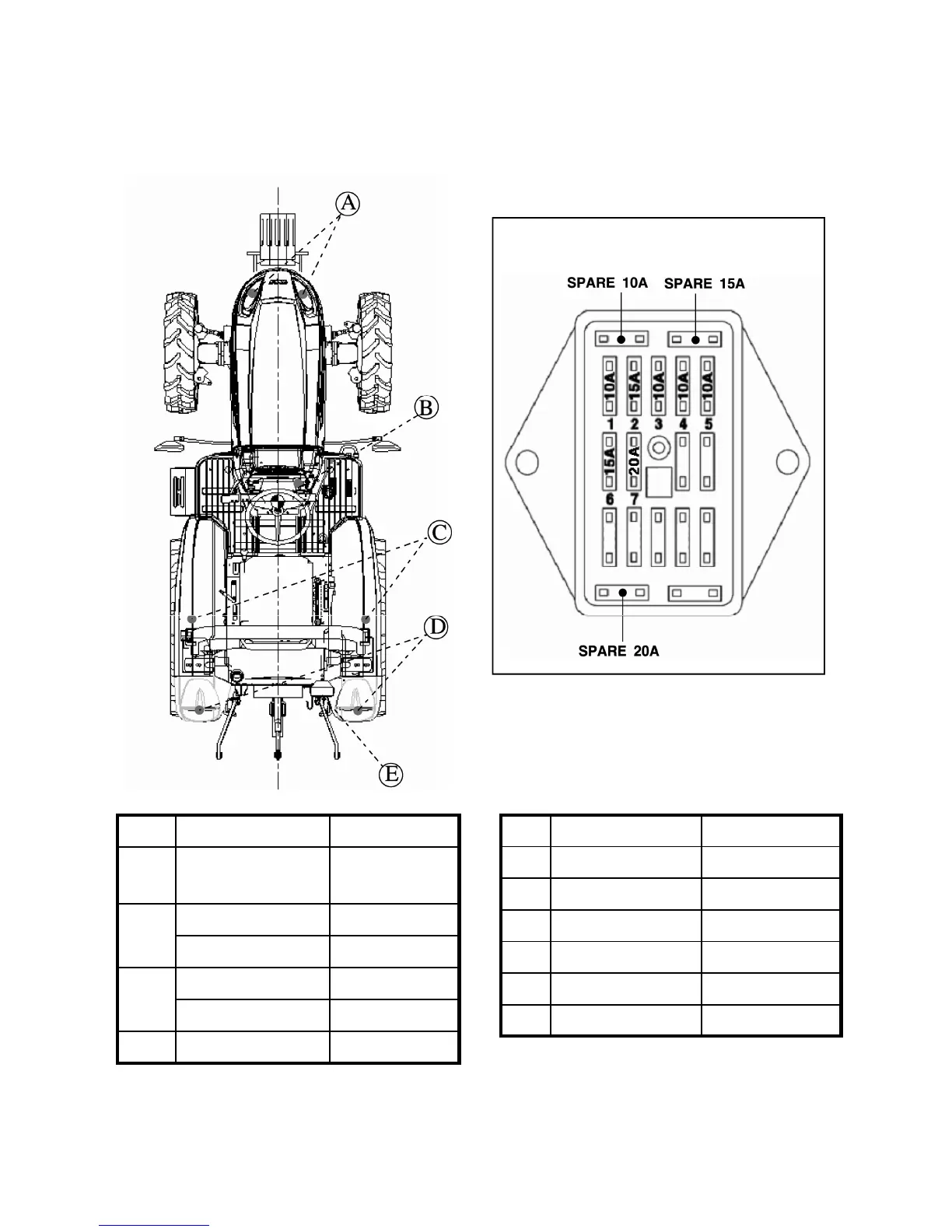

► Drawing for fixing position of the fuse
►
►►
► Wiring diagram of the electric instrument
* Main Fuse
A Head lamp 12V/55W/60W
B
Meta panel Light
(Instrument)
12V/3.4W
C(
Turn Signal Lamp 12V/21W
Tail Lamp) 21/5W
D
Stop Lamp 21/5W
Turn Signal Lamp 12V/21W
E Working Lamp 12V/25W
1 Panel 10A
2 Light / Horn 15A
3 Turn Signal Lamp 10A
4 Stop / Tail Lamp 10A
5 Working Light 10A
6 Controller 15A
7 Connector 20A
