►Independent PTO
■ The PTO monitor lamp on the dash panel indicates the state of the PTO shaft.
1. If the monitor glows: The PTO is rotating
2. If the monitor is off: The PTO is off
rotating of the clutch pedal is released or the implement is lowered PTO monitor Lamp

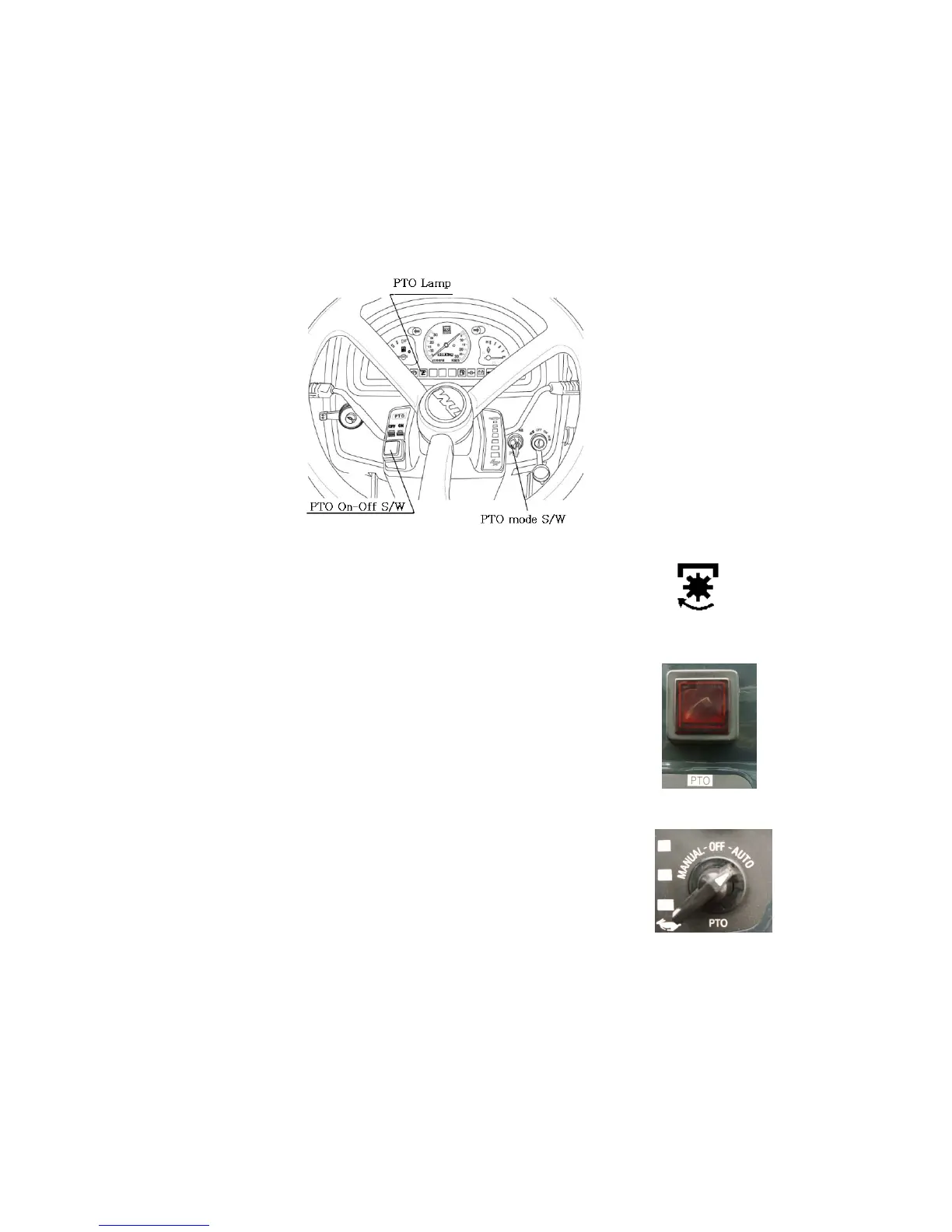

Two switches operate the independent PTO.
1.PTO ON/OFF switch: PTO ON/OFF switch is situated on the LHS. on
the steering column and can be identified easily with its built in red
colored indicator. When the switch is pushed down to start the PTO
indicator glows to indicate that the switch and the PTO are in ON position,
If the switch is pushed down again the indicator goes off signaling that the
PTO is OFF.
2. PTO Control switch: This switch is situated near the starting key location
on the dash panel. There are three positions marked for this switch.
■ Off at the center
■
■■
■ Manual at the left
■
■■
■ Auto at the right.
PTO ON,Off switch
PTO control switch
The PTO shaft will not rotate if either of the two switches is in OFF position.
The following table explains how the PTO operates at the two different (Manual &
Auto) positions of the PTO control switch with the PTO ON/OFF switch in the on
position.
To Next Page
