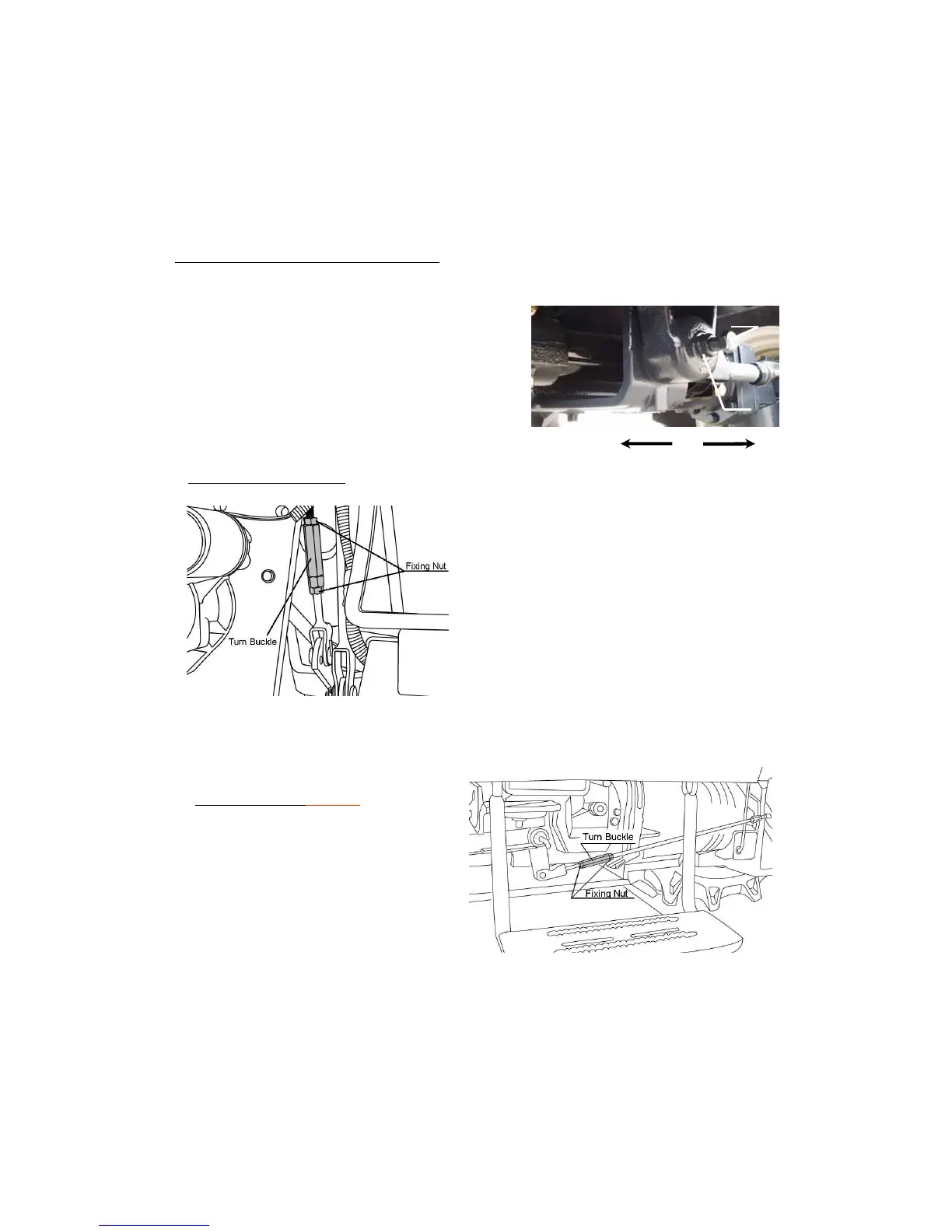

GAP ADJUSTMENT ON THE FRONT AXLE
Lift the front with a hydraulic jack to get the wheels of
the ground.
Then loosen the nut and tighten the bolt fully and turn the
bolt ½ to loosen again in order to roll the center pivot
metal freely and tighten the nut again.
While the wheels arte still off the ground, move the axle
on the center pivot as a final check that the gap is set
correctly on the top of the pivot metal
Front axle
Backward Forward
Nut
Bolt
ADJUSTING THE CLUTCH
Using the clutch over a period of time will increase the
free play.
The correct free play of the pedal is 0.78~1.18 in
68
To adjust, loosen the locknut on the turnbuckle and adjust.
Check the adjustment and tighten the locknut if the free
play is correct.
ADJUSTING THE BRAKES
As is the case with the clutch, use of the brakes
will change the pedal free play and the balance
between the right and left pedal.
The correct pedal free play is 1.18~ 1.57 in
