Service and Parts Manual
54

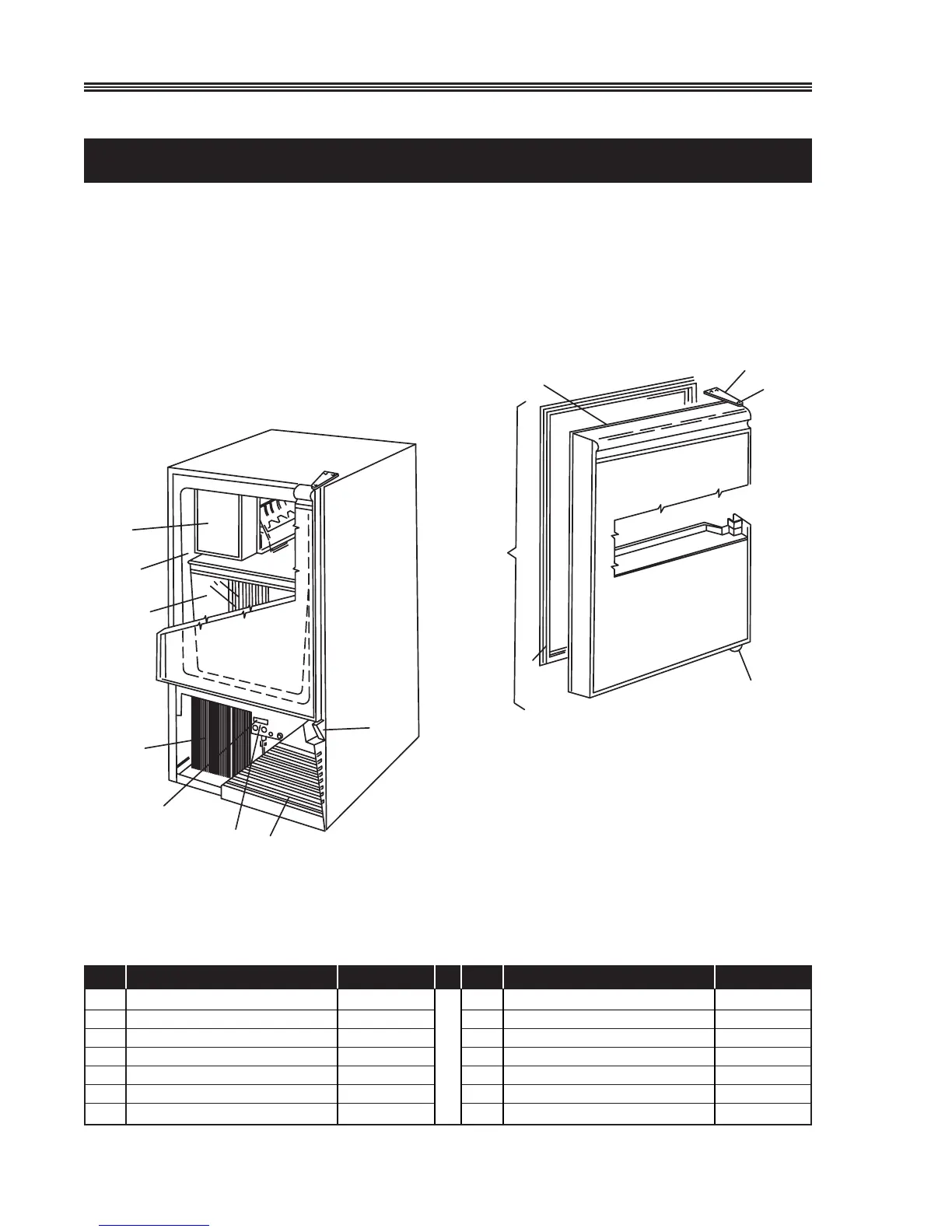

MODEL 98 (1 of 2)
For Item #9, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Switch-On/Off 2053
2 Handle 31489-2*
3 Door Gasket 31493-2*
4 Pivot Hinge, Top 11697-ST*
5 Pivot Hinge, Bottom 11695-S*
7 Grille 11661*
8 Condenser Ass’y 2628-S
Item Description Part No.
9 Ice Maker Ass’y 402
10 Ice Bucket 31430
11 Inner Liner Ass’y/Evaporator 2183-S*
12 Complete Door Ass’y 98-DOOR*
13 Pivot Screw, Top 41785*
14 Pivot Screw, Bottom 41747*
15 Control 4548
4
13
14
2
9
3
5
11
10
8
1
7
15
12
MODEL98a
*Please indicate color.
MODEL98a
