U-Line BI15 Icemaker User Manual

Service and Parts Manual
56

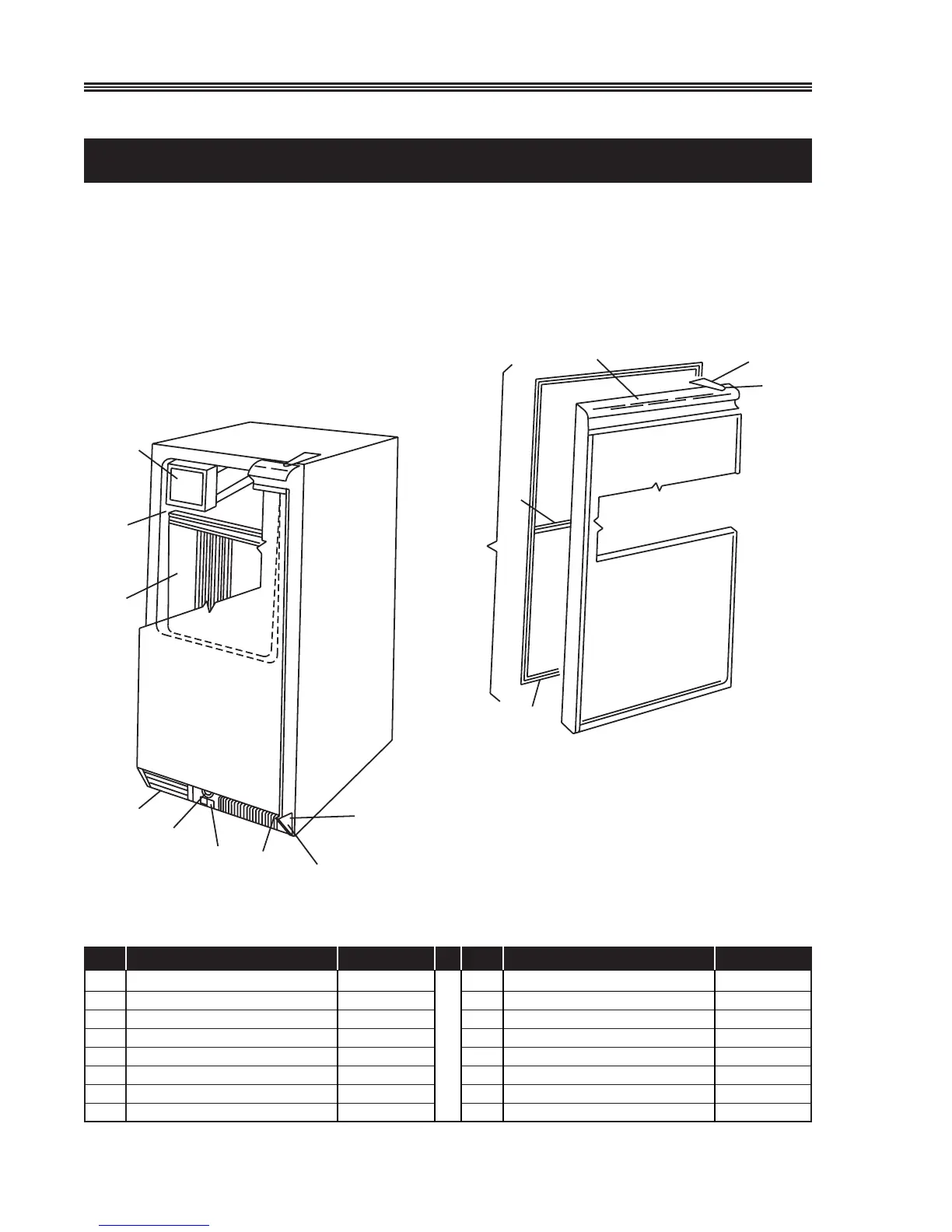

MODEL BI15 (1 of 2)
For Item #9, see Model 402 Ice Maker (page 39) for separate breakdown.
Item Description Part No.
1 Switch- On/Off 2053
2 Handle 31489-2*
3 Door Gasket, Lower 31606*
4 Pivot Hinge, Top 11697-ST*
5 Pivot Hinge, Bottom 11695-SB*
7 Grille 31543*
8 Condenser Ass’y 2223-S
9 Ice Maker Ass’y 402
Item Description Part No.
10 Ice Bucket 31430
11 Inner Liner Ass’y/Evaporator 2183-S15*
12 Complete Door Ass’y BI15-DOOR*
13 Pivot Screw, Top 41785-SS*
14 Pivot Screw, Bottom 41747-SS*
15 Gasket, Upper 31604*
16 Control 2691
17 Control Knob 41492
17
5
14
12
13
4
2
3
15
8
1
16
7
10
11
9
*Please indicate color.
MODELBI15a

U-Line BI15 Icemaker Specifications

General

Brand	U-Line
Model	BI15 Icemaker
Category	Ice Maker
Language	English
