USER GUIDE
Troubleshooting - Extended 5
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Harvest-1 Cycle
• Temperature control terminals 2 and 3 are open - 2 and
1 close.
• No power to the compressor or condenser fan.
• If bin arm is down, power goes through bin arm switch
to the ice maker motor. If bin arm is up, the ice maker
will not harvest.

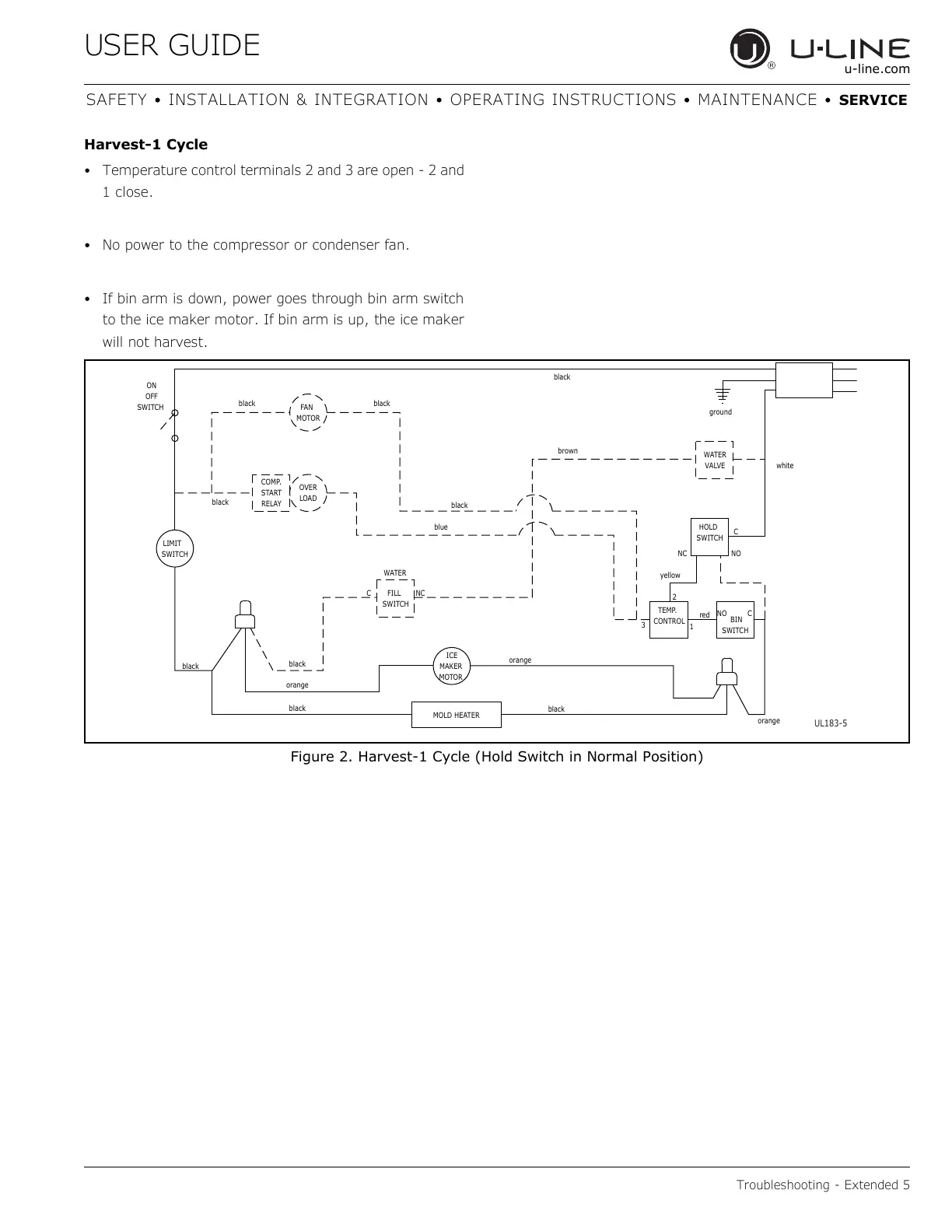

Figure 2. Harvest-1 Cycle (Hold Switch in Normal Position)
SWITCH
LIMIT
orange
black
black
black
MOTOR
MAKER
ICE
MOLD HEATER
WATER
SWITCH
FILL
C
NC
MOTOR
FAN
LOAD
OVER
black
RELAY
START
COMP.
SWITCH
OFF
ON
black
black
blue
black
CONTROL
TEMP.
NC
black
orange
3
yellow
2
orange
SWITCH
BIN
red
NO
1
C
NO
brown
black
white
C
SWITCH
HOLD
VALVE
WATER
ground
UL183-5
