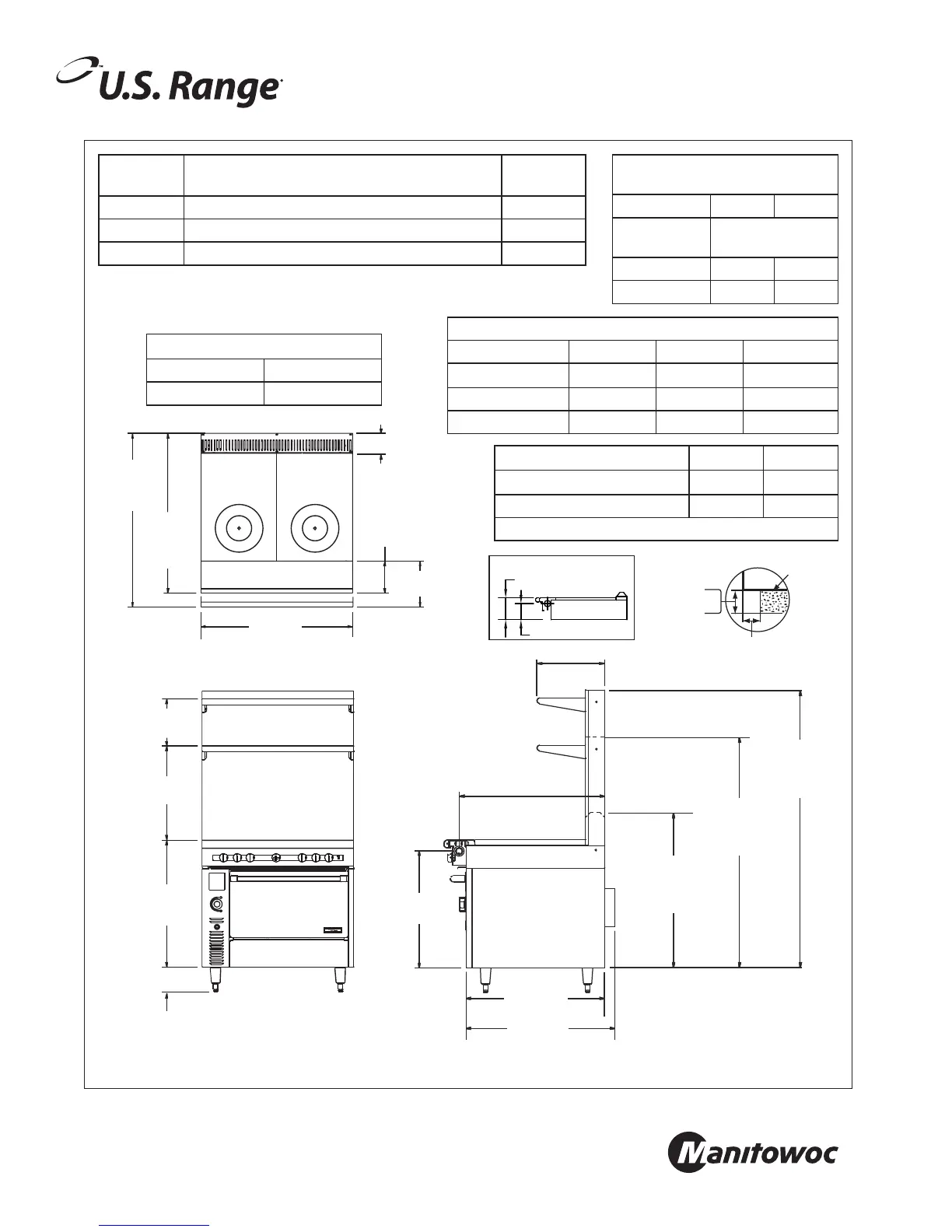

U.S. Range C836-10 - Page 2

Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
27-1/2"
(698mm)
34-5/16"
(871mm)
32-11/16"
(830mm)
16"
(406mm)
34-3/16"
(868mm) RC OVEN
36-1/8"
(917mm)
CSTUB
BACKGUARD
54-7/16"
(1382mm)
CCHS
HI-SHELF
65-7/16"
(1662mm)
CCDHS
HI-SHELF
4 1/2"
(114mm)
7 1/8"
(180mm)
8 5/8"
(219mm)
36"
(914mm)
39 3/8"
(1000mm)
RAIL
OPEN
37 7/8"
(962mm)
RAIL
CLOSED
11 1/8"
(282mm)
22 1/4"
(565mm)
30"
(762mm)
6" (152mm)
Cuisine Series Heavy Duty Front-Fired Hot Top Range
Form#C836-10(03/17/14)
2-/12"
[64mm]
RANGE
3" MIN
[75mm]
5" MAX
[133mm]
Vermin
Proof
DAIS Mounting
6-31/32" [177mm]
9-15/32" [241mm]
MODULAR TOP
Model # Description
Total BTU
(NAT. Gas)
C836 -10* Two(2)-18"(457mm)FFHT-StandardOven 115,000
C0836-10 Two(2)-18"(457mm)FFHT-CabinetBase 75,000
C0836-10M Two(2)-18"(457mm)FFHT-Modular 75,000
FFHT = Front Fired Hot Top
* Add Sux “RC” for Convection Oven Base 1/3 Hp
motor120V60Hz0.6Ampsc/wNema5-15Pcord&plug
Individual Burner Ratings
(BTU/HR
Burner NAT. Pro.
18" Front
Fired Hot Top
12,500
(3 per 18" Section)
Std. Oven 40,000 35,000
Conv. Oven 37,000 35,000
Interior Dimensions: In (mm)
Product Height Width Depth
Standard Oven 13-1/2(323) 26-/1/4(667) 29(737)
Convection Oven 13-1/2(323) 26-/1/4(667) 25 (635)
Cabinet Base 20 -1/2 (521) 32-1/4 (819) 31(787)
Gas Pressure NAT. PRO.
Minimum Supply 7"WC 11"WC
ManifoldOperatingPressure 6"WC 10"WC
GasManifold1-1/4"NPT
Combustible Wall Clearance
Sides Back
6" (152mm) 6" (152mm)
