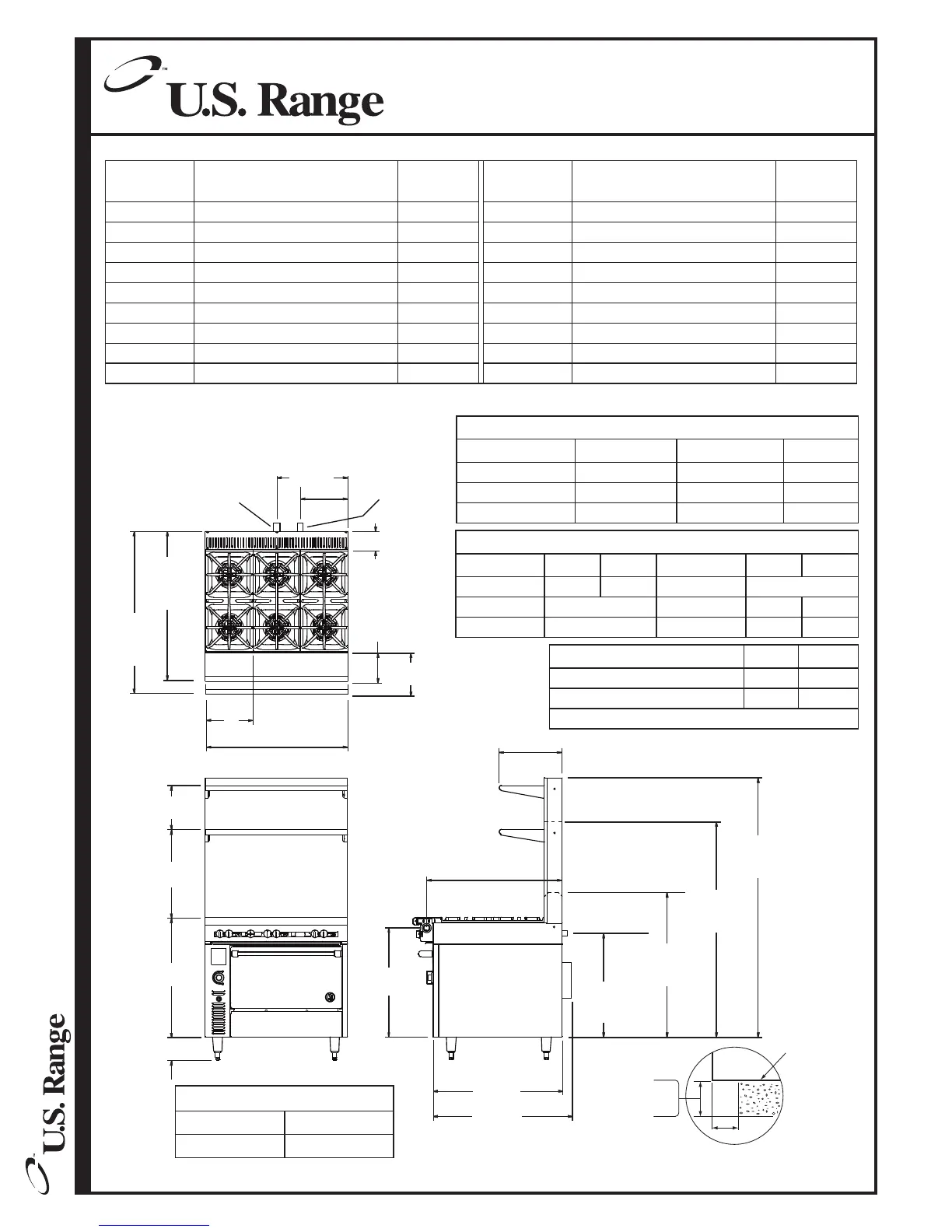

U.S. Range C836-6 - Page 2

11-1/8"
(282mm)
22-1/4"
(565mm)
30"
(762mm)
6" (152mm)
27-1/2"
(698mm)
34-5/16"
(871mm)
25-3/4"
(654mm)
REAR GAS
CONNECTION
36-1/8"
(917mm)
CSTUB
BACKGUARD
54-7/16"
(1382mm)
CCHS
HI-SHELF
65-7/16"
(1662mm)
CCDHS
HI-SHELF
32-11/16"
(830mm)
34-3/16"
(868mm) RC OVEN
16"
(406mm)
(457mm)
4-1/2"
(114mm)
7-1/8"
(180mm)
8-5/8"
(219mm)
36"
(914mm)
12"
(305mm)
39-3/8"
(1000mm)
RAIL
OPEN
37-7/8"
(962mm)
RAIL
CLOSED
12"
(305mm)
18"
-6, -12, -13, -15
-7, -14
Interior Dimensions: In (mm)
Product Height Width Depth
Standard Oven 13-1/2(323) 26-/1/4 (667) 29 (737)
Convection 13-1/2(323) 26-/1/4 (667) 25 (635)
Cabinet Base 20-1/2 (521) 32-1/4 (819) 31 (787)
Individual Burner Ratings (BTU/hr)
Burner NAT. PRO. Burner NAT. PRO.
Open Top 30,000 28,000 Griddle 30,000
12" Hot Top 25,000 Std. Oven 40,000 35,000
18" Hot Top 32,500 Conv. Oven 37,000 35,000
Gas Pressure NAT. PRO.
Minimum Supply 7" WC 11" WC
Manifold Operating Pressure 6" WC 10" WC
Gas Manifold 1-1/4" NPT
Cuisine Series Heavy-Duty Ranges
Model #: C836-6, -7, -12, -13-, 14, -15
Model #* Description
Total BTU
(NAT. Gas)
Model #* Description
Total BTU
(NAT. Gas)
C836-6* 6 OB/STD. Oven 220,000 C836-13* 4 OB/ (1) 12" HT/STD. Oven 185,000
C0836-6 6 OB/Cabinet Base 180,000 C0836-13 4 OB/ (1) 12" HT/Cabinet Base 145,000
C0836-6M 6 OB Modular Top 180,000 C0836-13M 4 OB/ (1) 12" HT/Modular Top 145,000
C836-7* 4 OB/STD. Oven 160,000 C836-14* 2 OB/ (1) 18" HT/ STD. Oven 132,500
C0836-7 4 OB/ Cabinet Base 120,000 C0836-14 2 OB/ (1) 18" HT/Cabinet Base 92,500
C0836-7M 4 OB Modular Top 120,000 C0836-14M 2 OB/ (1) 18" HT/Modular Top 92,500
C836-12* 2 OB/ (2) 12" HT/STD Oven 150,000 C836-15* (3) 12" FT/STD. Oven 175,00
C0836-12 2 OB/ (2) 12" HT/Cabinet Base 110,000 C0836-15 (3) 12" FT/Cabinet Base 135,00
C0836-12M 2 OB/ (2) 12" HT/Modular Top 110,000 C0836-15M (3) 12" FT/Modular Top 135,00
HT = Hot Top GT Griddle Top OB = Open Burners FT = French Tops
* Add Suffix "RC" for Convection Oven Base
Form #C836-6 (07/06) US Range reserves the right to change specifications without notice. Printed in USA
Item #:______________________________
Model: C836-6, -7, -12, -13-, 14, -15
Product Name: Cuisine Series Heavy-Duty Ranges,
Open Burners With Oven, Cabinet Base,
Modular Models.
2-/12"
[64mm]
RANGE
3" MIN
[75mm]
5" MAX
[133mm]
VERMIN
PROOF
DAIS Mounting
Combustible Wall Clearance
Sides Back
6" (152mm) 6" (152mm)
