- 4 -

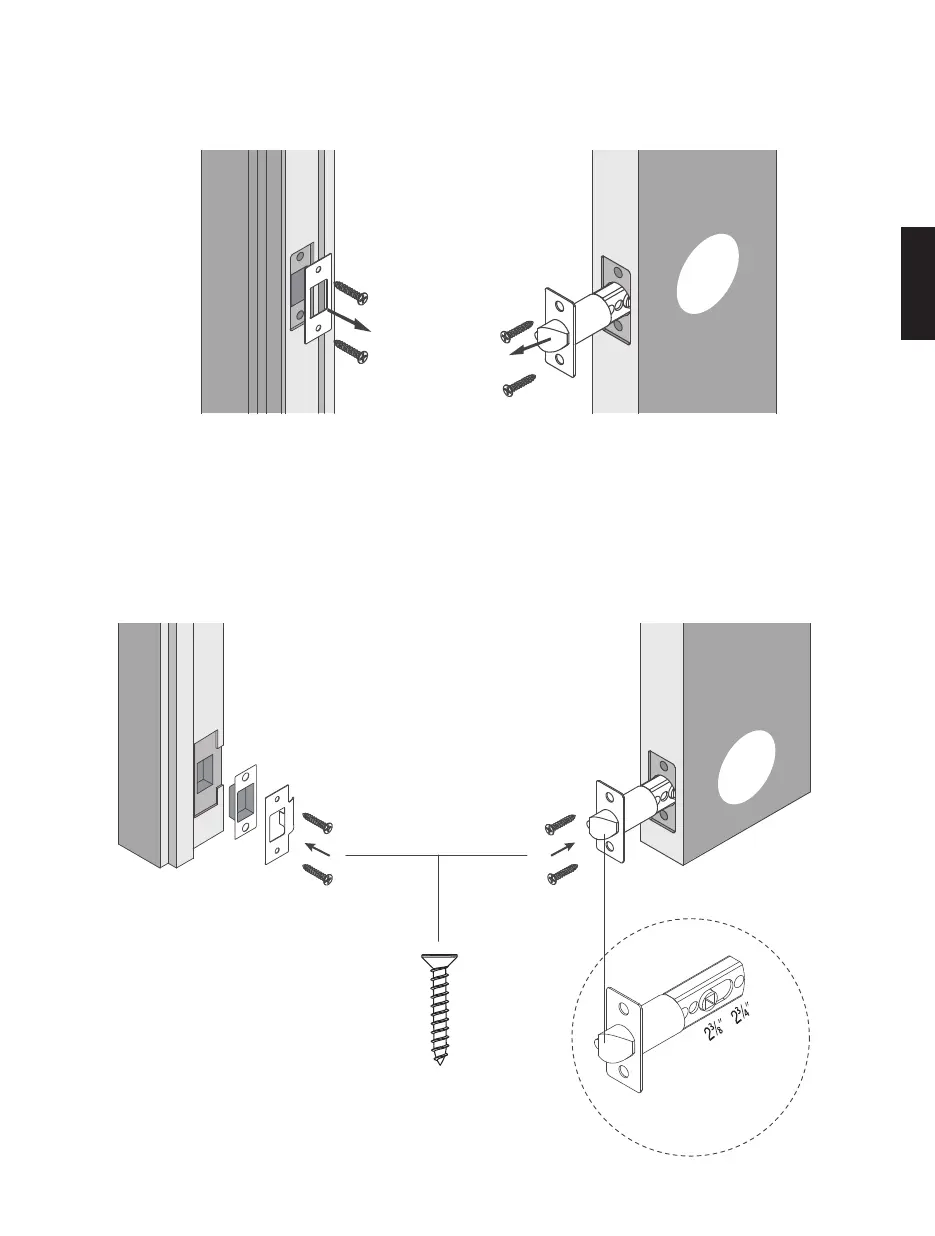

Installing Latch and Strike

1. Install the latch on the door. Make sure the latch angle faces the door jamb.

2. Install the strike on the door frame, ensuring the latch will match the strike.

If you are installing your Ultraloq on a door with an existing lock, please remove the current strike

and latch.

60 or 70mm

Adjust the latch

basket length

Angle faces jamb

Screw A

ENGLISH
