Uberhaus 72255159 - Page 17

Page 17

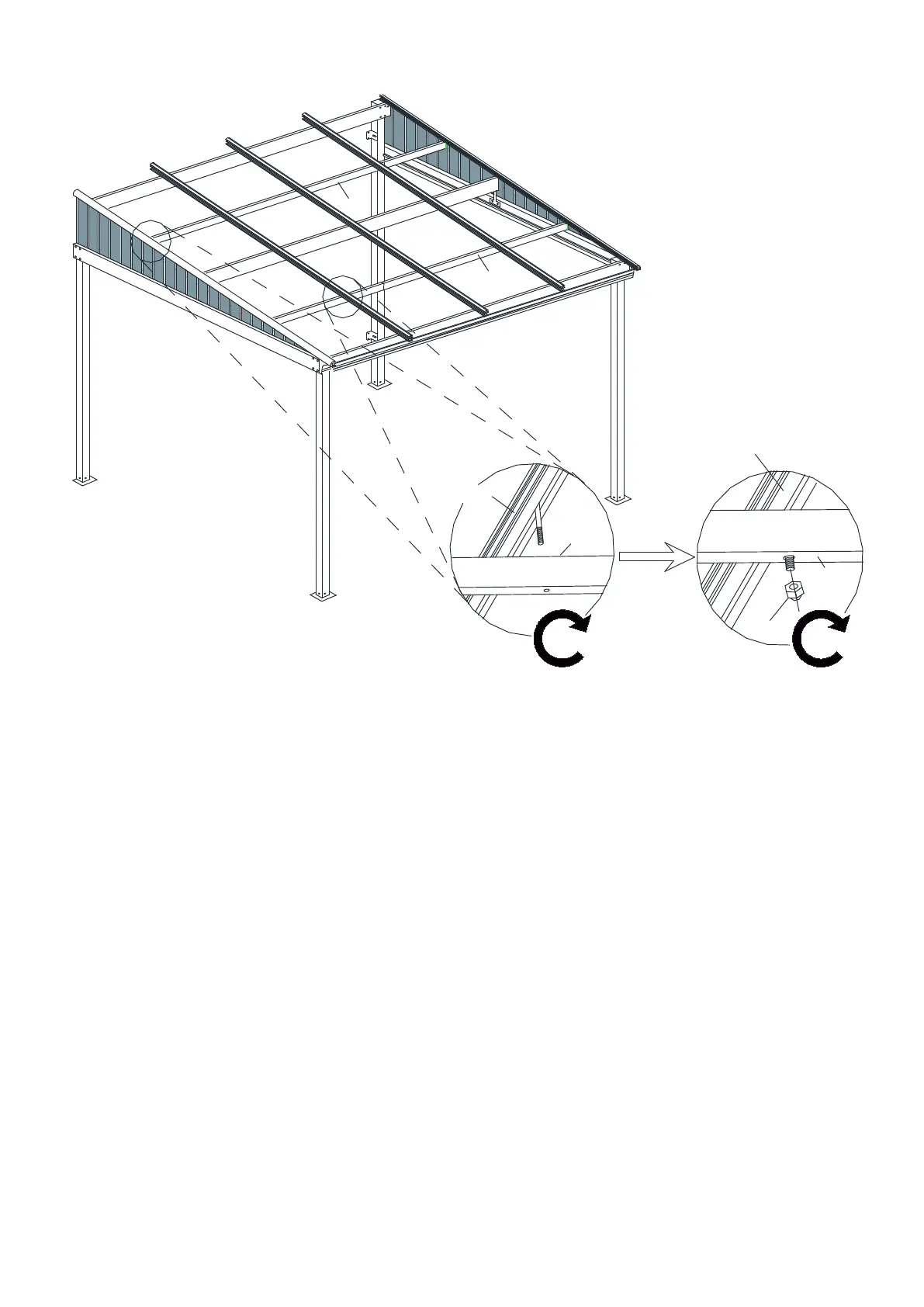

Step 11
11. From within the shelter, install the Reinforcing Bars (G2) by inserting the screws which protrude
from the Roof bars (J2) into the Reinforcing Bars (G2) and fixing them with Nuts (Y).
NOTE:
Ensure that the Decorative Reinforcement Bars (G2) are well centered before tightening the
Nuts (Y).
X 10
X 10
J/J1/J2
G2
G2
G2
G2
Y
J/J1/J2
