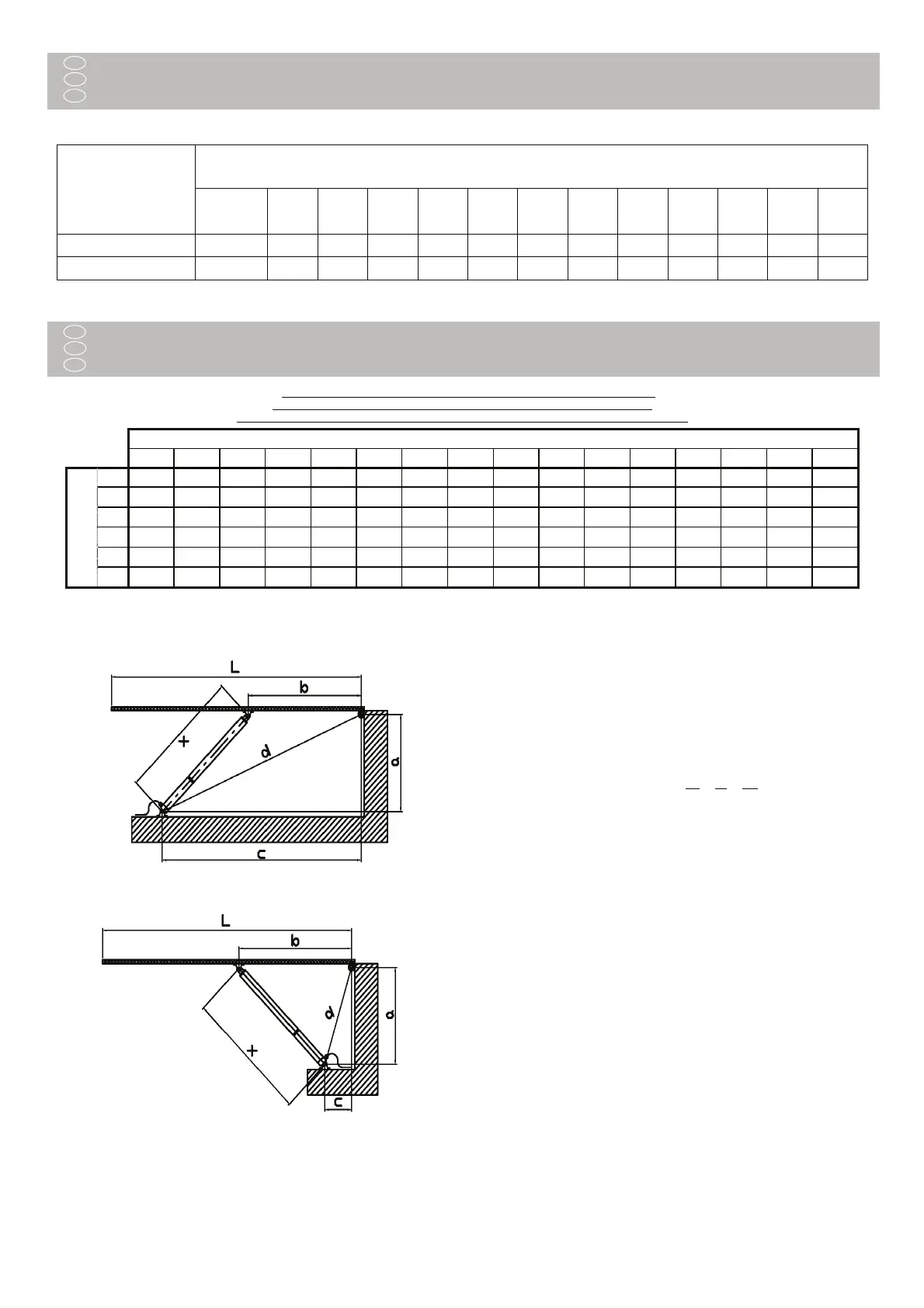

Doc. 82082-Z Rev. 04/07/07 7 / 8 Dis. 17088/l
10% di caduta di tensione massima – 10% max voltage drop – réduction de tension maxime du 10%
LUNGHEZZA DEI CONDUTTORI DALLA SORGENTE ALL’UTILIZZATORE E RITORNO.
CONDUCTORS LENGTH FROM SOURCE OF CURRENT TO DEVICE AND BACK TO SOURCE.
LONGUEUR DES CABLES DE LA SOURCE AU VERIN ET RETOUR.
3m 4.5m 6m 7.5m 9m 12m 15m 18m 21m 24m 27m 30m
CORRENTE TOTALE
NEL CIRCUITO.
CIRCUIT TOTAL
CURRENT.
COURANT TOTAL DE
CIRCUIT.
10ft 15ft 20ft 25ft 30ft 40ft 50ft 60ft 70ft 80ft 90 ft 100ft
10A (AV 12 Vdc) mm
2
/AWG 1.5/16 1.5/16 2.5/14 2.5/14 2.5/14 2.5/14 4.0/12 4.0/12 6.0/10 6.0/10 6.0/10 6.0/10
5A (AV 24 Vdc) mm
2
/AWG 1.5/16 1.5/16 1.5/16 1.5/16 2.5/14 2.5/14 2.5/14 2.5/14 4.0/12 4.0/12 4.0/12 4.0/12
Valori di K per rapporto c/a compreso tra 0 e 0.5 (per c/a > 0.5 utilizzare K=1)
Values of K if the ratio c/a is included between 0 and 0.5 ( if c/a > 0.5 use K=1)
Valeurs du coefficient K en cas de rapport c/a compris entre 0 et 0.5 (si c/a > 0.5 utiliser K=1)
b/d
0.1 0.15 0.2 0.3 0.4 0.5 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0
0.0 1.09 1.14 1.17 1.24 1.30 1.34 1.41 1.34 1.26 1.21 1.17 1.15 1.13 1.11 1.10 1.09
0.1 1.00 1.01 1.04 1.09 1.13 1.16 1.23 1.16 1.10 1.06 1.04 1.02 1.01 1.00 1.00 1.00
0.2 1.00 1.00 1.00 1.03 1.06 1.10 1.16 1.10 1.04 1.01 1.00 1.00 1.00 1.00 1.00 1.00
0.3 1.00 1.00 1.00 1.00 1.03 1.06 1.12 1.06 1.01 1.00 1.00 1.00 1.00 1.00 1.00 1.00
0.4 1.00 1.00 1.00 1.00 1.00 1.03 1.10 1.03 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
c/a
0.5 1.00 1.00 1.00 1.00 1.00 1.01 1.08 1.01 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Fmax = forza massima necessaria (in Newton)
Fmax = maximum strenght (in Newton)
Fmax = majeur force (en Newton)
P= peso del portellone (in Newton)
P= weight of the hatch (in Newton)
P= poids du sabord (en Newton)
TAB EL LA “A” : S EZ IO NE C ON DUTTORI 2-4 (figg. 4-5)
TAB LE “A”: 2- 4 WIRE SIZE (fig. 4-5)
TAB LE AU “A” : SU PE RFICIE DE COUPE POR CÂBLE 2-4 (fig. 4-5 )
GB
I
F
TAB EL LA “B ”: C ALC OL O DE LL A F OR ZA NE CE SS ARI A ( Fm ax )
TAB LE “B”: CAL CU LAT IO N OF T HE N EC ES SAR Y ST RE NG HT ( Fm ax )
TAB LE AU “B”: C ALC UL ER L A F OR CE N ÉC ES SAI RE ( Fm ax )
GB
I
F
Kx
a
X
x
b
L
x
2
P
(N)Fmax #
fig. 2
fig. 3
