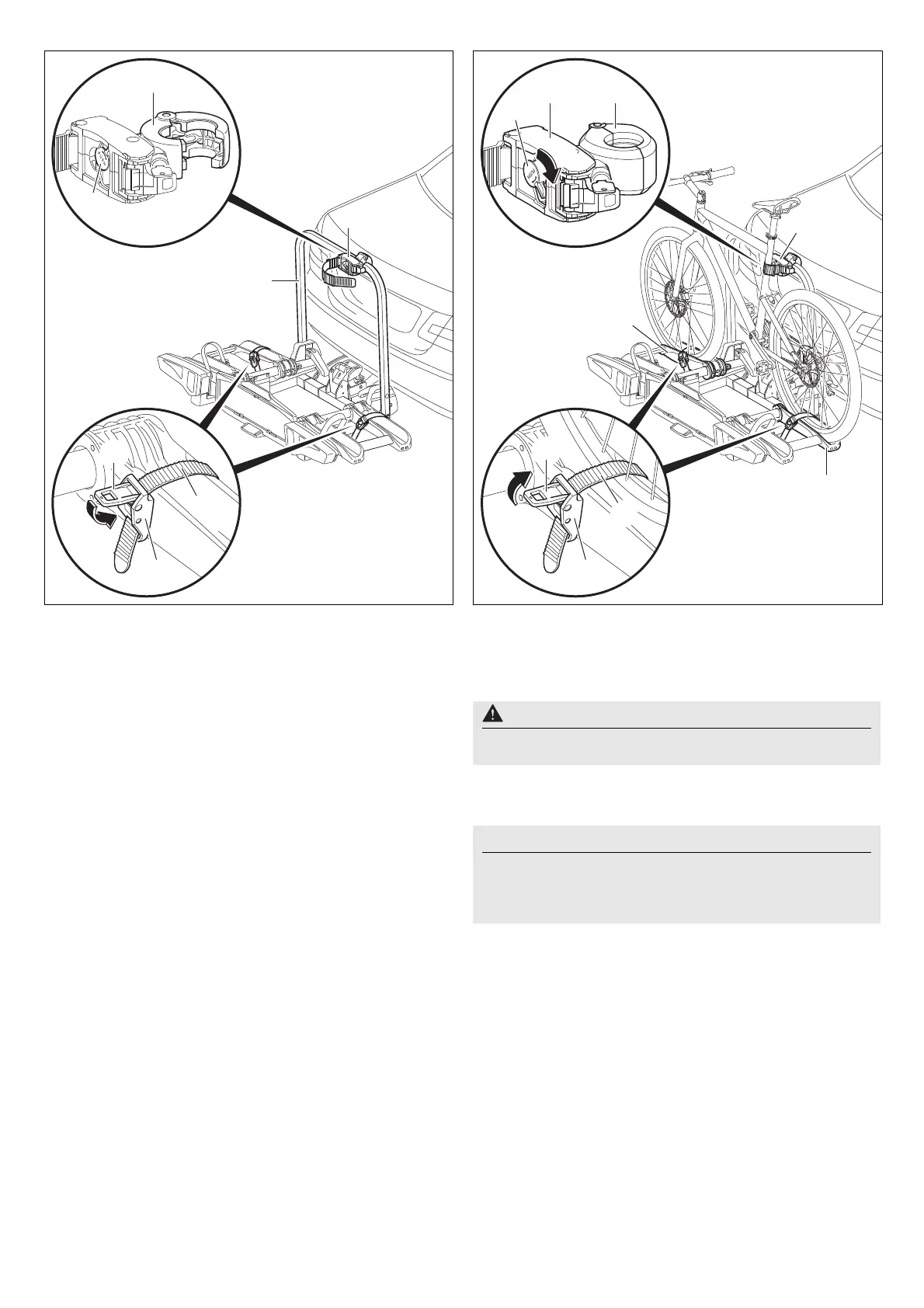

5. Position the open clamp (42) around the rack frame (6) and fit
on the rack frame (6) by releasing the twist grip (29).
6. Press the tensioner (31) (arrow II) and pull out the lashing
strap (26).
7. Put the bicycle on the wheel rails (8) and position it towards the
holder (2). Secure the bicycle against tipping.
8. Pass the lashing strap (26) centrally between two spokes,
thread it into the buckle (30) and tighten it.
9. Use the tensioners (31) to tighten the lashing straps (26)
(arrow I).
10. Align the holder (2) to the bicycle frame and turn the twist
grip (29) clockwise as far as it will go (arrow II).
The clamp (42) is locked.
Attention
Do not tighten the lashing straps (26) too firmly, otherwise the
tyres or rims could be damaged.
Note
With long holders for fixing the second bicycle:
Only when the holder (2) or (3) is exactly perpendicular to the
rack frame and the clamp (42) is completely closed can the
twist grip (29) be turned clockwise.
2
8
8
31
26
30
I
422
29
II
M+P-25A-0270
